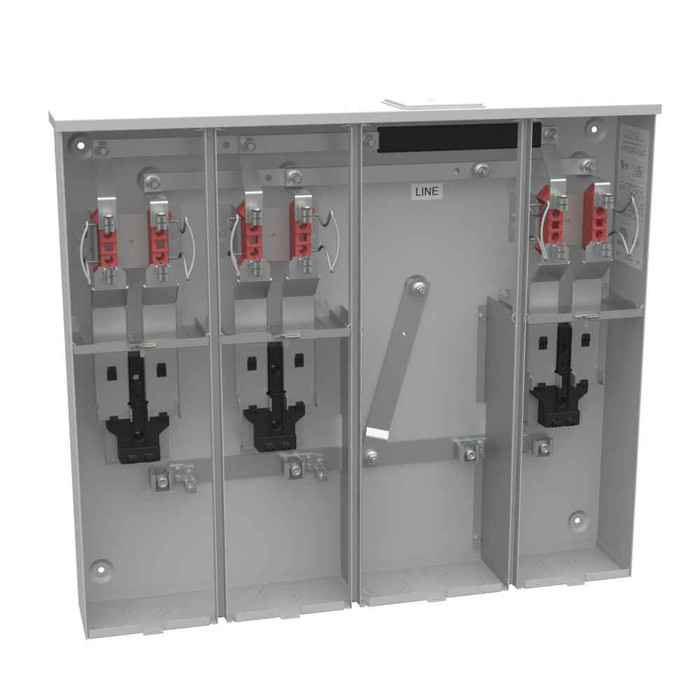

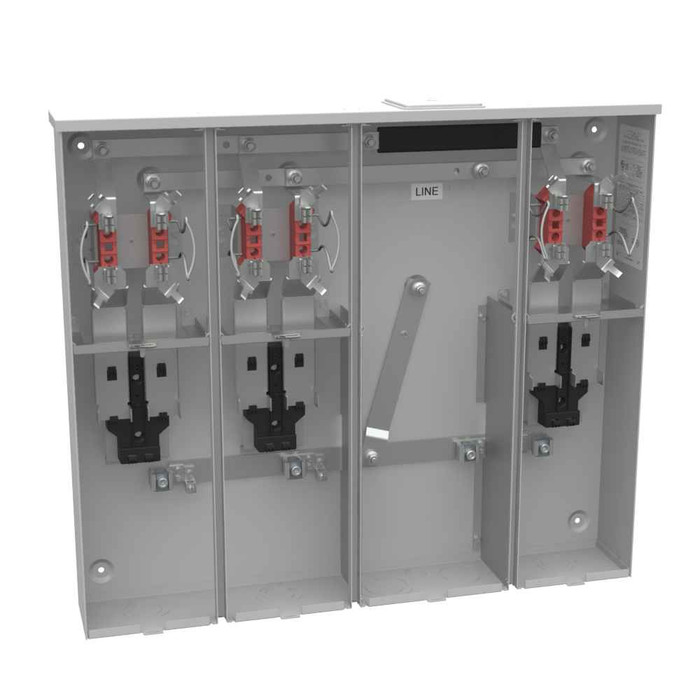

Milbank 3-Position Ringless Meter Socket with 200A Main Breaker Provision and Large Closing Plate

Milbank 3-Position Ringless Meter Socket with 200A Main Breaker Provision and Large Closing Plate

Professional Multi-Meter Power Distribution Solution

The Milbank 3-Position Ringless Meter Socket delivers reliable multi-unit power distribution with 200 continuous ampere capacity and main breaker provision. Constructed from G90 galvanized steel with powder coat finish, this UL Listed Type 3R enclosure provides durable performance for overhead or underground cable entry applications. The surface mount design accommodates up to 240 volts alternating current with comprehensive wire range compatibility from line side 6 AWG - 350 kcmil to load side 1 AWG - 300 kcmil.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial power capacity for multi-unit residential and commercial applications requiring reliable electrical distribution.
• 3-Position Meter Configuration: Enables individual metering for multiple units or circuits, supporting flexible billing and load management requirements.
• Main Breaker Provision: Accommodates main circuit protection installation for enhanced safety and code compliance in electrical distribution systems.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
• UL Listed Type 3R Rating: Ensures compliance with safety standards and weather resistance for outdoor installations and harsh environmental conditions.
• Flexible Cable Entry: Supports both overhead and underground cable entry methods for versatile installation configurations and site requirements.
• Large Closing Plate Design: Provides enhanced hub closing capability and professional appearance while maintaining proper enclosure integrity.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
• Brand Name: Milbank
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 1 AWG - 300 kcmil
• Main Breaker Size: Breaker Provision
• Number Branch Circuits: 3
• Number Of Meter Positions: 3 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CU20
• Product Height: 30 IN
• Product Length: 5.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.125L x 34.563W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 34.563 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties requiring individual metering capabilities
• Commercial Buildings with multiple tenant spaces
• Apartment Complexes and Condominiums
• Mixed-Use Developments
• Professional Office Buildings
• Retail Strip Centers
• Light Industrial Facilities with multiple occupants

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed construction and Type 3R weather resistance rating. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive wire range compatibility and barrel lock provision demonstrate professional-grade engineering for demanding electrical distribution applications.
