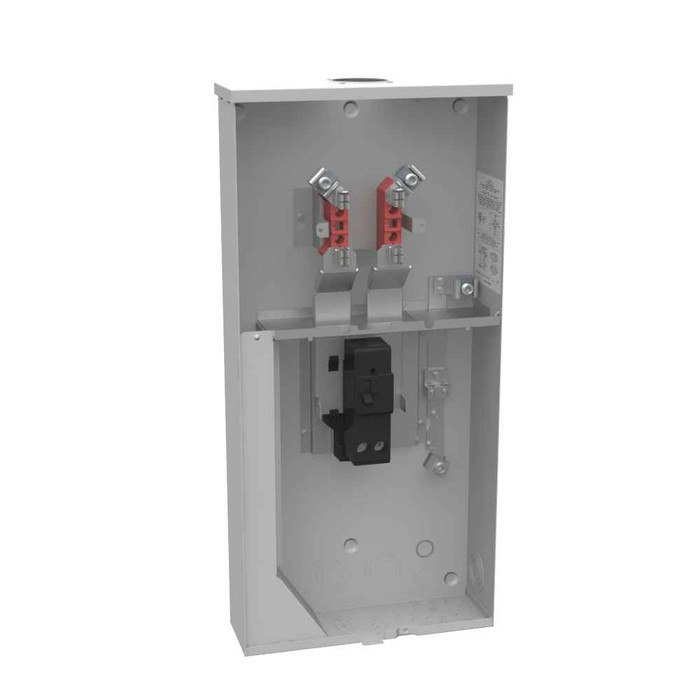

Milbank U5854 4 Terminal Ring Type Meter Socket - Small Hub & Closing Plate Configurations

Milbank 200A Ring Type Meter Socket with Main Breaker - 1 Phase 240V Surface Mount

(No reviews yet) Write a Review

Model: U5854-PXL-100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$909.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Ring Type Meter Socket with Main Breaker - 1 Phase 240V Surface Mount

Professional metering solution with integrated main breaker protection

The Milbank 200A Ring Type Meter Socket delivers reliable single-phase metering with integrated main breaker protection for residential and light commercial applications. Featuring durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount unit provides dependable service up to 240V AC with overhead or underground cable entry options.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial metering applications with reliable capacity.
  • Ring Type 4 Terminal Design: Provides secure meter connections with lay-in terminals accommodating 6 AWG to 350 kcmil conductors for versatile installation options.
  • Integrated Main Breaker: Single main breaker position offers convenient overcurrent protection and disconnect capability in one compact unit.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain, sleet, and ice formation.
  • G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance and long-term durability in harsh environments.
  • Dual Cable Entry Options: Accommodates both overhead and underground service connections for flexible installation configurations.
  • UL Listed Certification: Meets rigorous safety and performance standards ensuring code compliance and reliable operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.13W x30H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.13 IN

Professional Applications

  • Residential Service Entrance Metering
  • Small Commercial Buildings
  • Multi-Unit Residential Properties
  • Light Industrial Facilities
  • Retail and Office Buildings
  • Municipal and Institutional Buildings
  • Temporary Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The durable G90 galvanized steel with powder coat finish ensures long-term performance in demanding outdoor environments, while glass polyester insulation and dual ground lugs provide enhanced safety and code compliance for professional installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.13W x30H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.13 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ring Type Meter Socket
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U5854-PXL-100 – Frequently Asked Questions

1) Is the Milbank U5854 a 4 jaw or 5 jaw meter socket, and will my utility accept it?
Four terminal, ring type. That is the standard single phase 120/240V residential and light commercial socket in most utility territories, and the ring type collar means the meter is secured with a sealing ring rather than a ringless cover. Utilities specify one or the other and they are not interchangeable, so confirm your serving utility calls for ring type before ordering. A 5 jaw socket is what you need for a network or 120/208V single phase service instead.
2) Can the Milbank U5854 meter socket be mounted outdoors on an exterior wall?
Outdoor mounting is what it is built for. The enclosure is Type 3R, which covers rain, sleet and ice on an exposed wall, and the body is G90 galvanized steel with a powder coat over it. It is a surface mount can, so it lands flat on the wall or on strut and is not meant to be recessed into the siding.
3) Do I still need a separate main breaker panel if I install a U5854 meter socket?
No separate service disconnect is needed at the meter. The U5854 is a meter socket with main, carrying one main breaker position that gives you overcurrent protection and the service disconnect in the same can. Downstream you still land on a panel, but that panel can be a main lug unit fed from this breaker rather than another main breaker enclosure.
4) What is the difference between the 100A and 200A Milbank U5854 configurations?
The socket itself is a 200 continuous ampere can either way. What changes is the main breaker installed in it: U5854-PXL-100 carries a 100A main breaker with the small closing plate and pack inside, while U5854-RL-200 carries a 200A main breaker with the small hub open and wide shell. Pick the breaker to match your calculated service load, and pick between the closing plate and the open hub based on whether the service comes in overhead through a hub or underground.
5) Can I use the Milbank U5854 meter socket on a 277/480V or three phase service?
No. It is rated up to 240 volts AC, single phase, 60 hertz. Putting it on a 480V or a three phase service is outside its rating, and you need a socket built for that voltage and phase configuration instead. For standard 120/240V single phase residential and light commercial work it is in range.
6) Does the Milbank U5854 meter socket have a meter bypass lever?
No bypass provision on this one. Power has to be pulled at the transformer or the utility has to pull the meter to work the socket dead, which matters if you are maintaining a property where the tenant cannot lose power. If your utility requires a lever bypass for their meter change program, or you want to be able to service downstream without a utility truck roll, you need a horn bypass or lever bypass socket rather than this one.
7) How much wall space do I need to fit a Milbank U5854 meter socket?
Plan on 30 inches of height and 14.13 inches of width, with the can standing 4.5 inches off the wall. On a tight service wall the 30 inch dimension is usually the one that bites, especially if you are stacking it under a weatherhead or over a disconnect. Overall size is 4.5L x 14.13W x 30H.
8) Can I feed a Milbank U5854 meter socket from underground, or is it overhead only?
Both. Cable entry is overhead or underground, so the same can works for a lateral coming up out of the ground or a service drop from a weatherhead. The two configurations differ at the top: the small hub open version takes an overhead hub fitting, while the closing plate version seals that opening, which is what you want on an underground lateral entering the bottom.
9) Where do I land the grounding electrode conductor and the neutral in a Milbank U5854?
The socket comes with two barrel ground lugs, so you have landing points for the grounding electrode conductor and a bonding or equipment grounding conductor without adding a lug kit. Insulation in the can is glass polyester. On a service entrance can like this the neutral is typically bonded at this point, which is exactly why the two lugs are there.
10) Can I run more than one meter or add a receptacle on the Milbank U5854?
Single meter position, no receptacle. If you are metering a duplex, a small apartment building, or any situation where each unit needs its own meter, you want a multi-position or ganged meter stack rather than this can. And if the job calls for a GFCI service receptacle at the meter, this one has none, so that has to be a separate device.
11) Is the Milbank U5854 meter socket UL Listed for a permitted service upgrade?
It carries a UL Listing and a Type 3R enclosure rating, which is the pair of designations an inspector looks for on an outdoor service entrance can. The UNSPSC code is 39121102 if your procurement system needs a classification for the requisition.
12) Can I put a 200A breaker in the U5854-PXL-100 later if I upgrade the service?
Order the breaker you need up front. The two U5854 builds are sold as configured units, U5854-PXL-100 with a 100A main and U5854-RL-200 with a 200A main, and the socket carries a single main breaker position. If the service calc comes out at 200 amps, order the 200A build rather than planning to swap the breaker after the fact.
