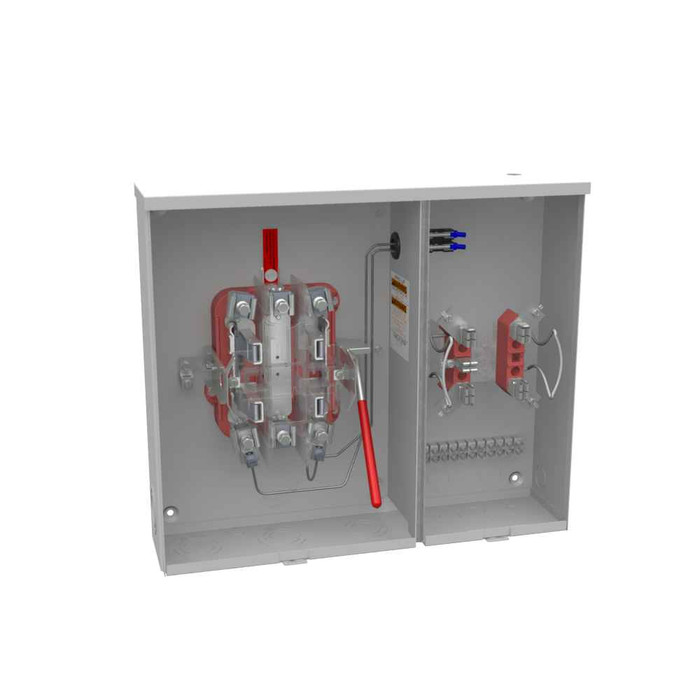

Milbank 200 Amp 1-Phase Ringless Meter Socket with Lever Bypass and Plain Top

Milbank 200 Amp 1-Phase Ringless Meter Socket with Lever Bypass and Plain Top

Professional dual-position meter socket with integrated bypass functionality

The Milbank 200 Amp 1-Phase Ringless Meter Socket delivers reliable electrical metering and distribution with integrated lever bypass capability for service continuity. This dual-position meter socket features robust G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating for dependable outdoor performance. The 4-terminal design accommodates 6 AWG to 350 kcmil conductors with lay-in terminals for professional installation flexibility.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• Lever Bypass Provision: Enables service continuity during meter maintenance or replacement without interrupting power to critical loads.
• Dual Meter Positions: Accommodates two separate metering points for multi-unit applications or utility requirements.
• Type 3R Enclosure Rating: Provides weather-resistant protection for outdoor installations with reliable performance in various environmental conditions.
• G90 Galvanized Steel Construction: Delivers long-term durability with powder coat finish for enhanced corrosion resistance and professional appearance.
• Underground Cable Entry: Designed for underground service connections with appropriate cable management and sealing capabilities.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: LBMGS
• Product Height: 18 IN
• Product Length: 4.875 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.875L x 21W x18H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 21 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Applications
• Multi-Unit Residential Properties
• Light Commercial Facilities
• Utility Metering Installations
• Underground Service Connections
• Duplex and Multi-Family Housing
• Professional Electrical Contractor Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the glass polyester insulation and professional lay-in terminals provide dependable performance for critical electrical metering applications.
