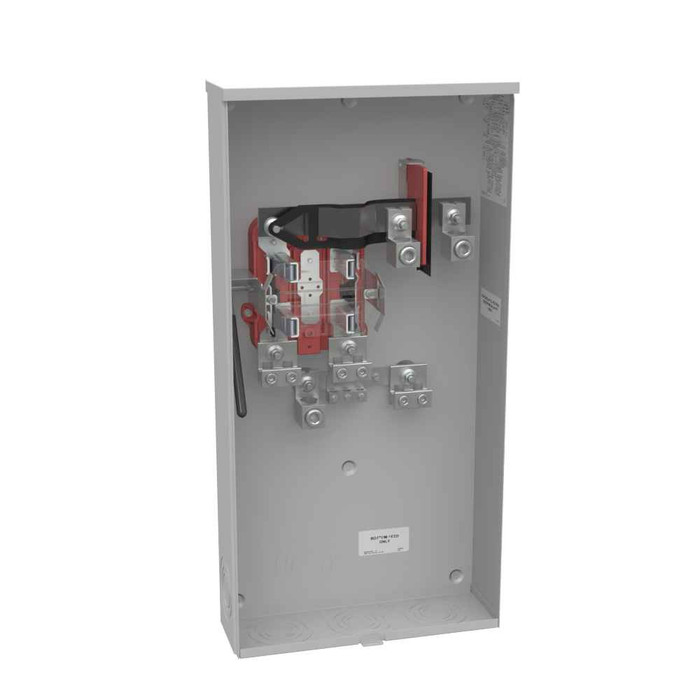

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Underground Entry

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Underground Entry

Professional electrical metering solution with lever bypass functionality

The Milbank 320A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability for professional installations. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides durable performance for underground cable entry applications. The 4-terminal design accommodates flexible wire ranges with single mechanical terminals and glass polyester insulation for dependable service.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles substantial electrical loads for commercial and residential applications with reliable current capacity.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption for operational continuity.
• Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish.
• Underground Cable Entry: Designed specifically for underground service applications with appropriate cable management features.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
• Flexible Wire Range Capacity: Accommodates line side 4 AWG - 600 kcmil and load side two 6 AWG - 350 kcmil for versatile connections.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: 3 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Load Side Wire Range: Two 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T32
• Product Height: 30 IN
• Product Length: 4.844 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.844L x 15W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 15 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Residential Underground Service Connections
• Multi-Unit Property Metering
• Industrial Facility Power Distribution
• Municipal and Utility Infrastructure
• Professional Electrical Contractor Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel material with powder coat finish ensures long-term durability, while the comprehensive 4-terminal design and flexible wire range capacity provide professional installation versatility for demanding electrical service applications.
