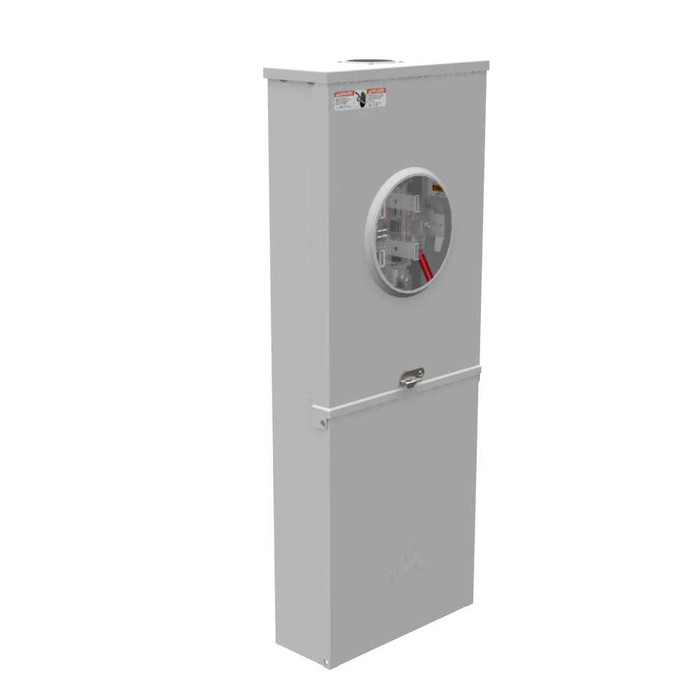

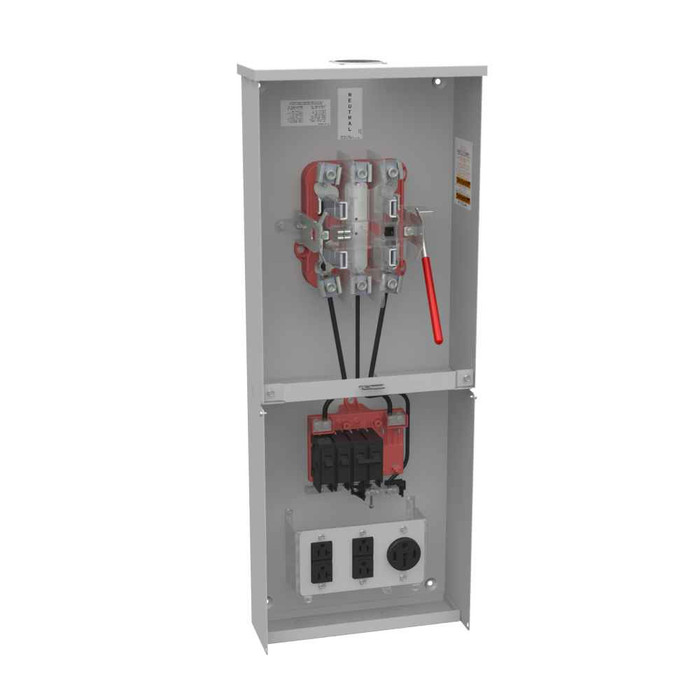

Milbank 100A 1-Phase Ringless Meter Socket with Lever Bypass and Ground Fault Protection
Professional electrical metering solution with integrated ground fault protection and bypass capability
The Milbank 100A 1-Phase Ringless Meter Socket delivers reliable electrical metering and distribution with integrated ground fault protection and convenient lever bypass functionality. This UL Listed Type 3R enclosure features aluminum construction with powder coat finish for durability, accommodating overhead or underground cable entry with 5-terminal configuration and ground bar equipment grounding.
Professional Features & Benefits
- 100 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications
- Lever Bypass Provision: Enables safe meter removal and maintenance without interrupting electrical service to critical loads
- Ground Fault Protection: Integrated GFCI breakers enhance safety by protecting against ground fault conditions in connected circuits
- Type 3R Enclosure: Weather-resistant aluminum construction with powder coat finish ensures reliable outdoor performance
- 5-Terminal Configuration: Accommodates single-phase service with flexible wiring options for line and load connections
- Overhead/Underground Entry: Versatile cable entry design supports both overhead and underground service installations
- UL Listed Compliance: Meets rigorous safety and performance standards for professional electrical installations
Technical Specifications
- Amperage Rating: 100 Continuous Ampere
- Application: Meter Socket
- Brand Name: Milbank
- Bypass Provision: Lever Bypass
- Cable Entry: Overhead or Underground
- Departent: Electrical
- Equipment Ground: Ground Bar
- Frequency Rating: 60 Hertz
- Hub Closing Plate: Small Hub Opening
- Insulation: Glass Polyester
- Line Side Wire Range: 6 AWG - 350 kcmil
- Load Side Wire Range: 6 AWG - 350 kcmil
- Main Breaker Size: Breaker Provision
- Number Branch Circuits: 6
- Number Of Jaws: 5 Terminal
- Number Of Main Breakers: 2
- Number Of Meter Positions: 1 Position
- Number Of Receptacles: 3
- Phase: 1 Phase
- Product Family Code: PHDO
- Product Height: 35 IN
- Product Length: 4.844 IN
- Product Material: Aluminum with Powder Coat Finish
- Product Mounting: Surface Mount
- Product Size: 4.844L x 13W x35H
- Product Type: Ringless Meter Socket
- Receptacle Configuration: One NEMA 14-50 and Two NEMA 5-20 Ground Fault
- Special Features: Two Single Pole 20 Ampere Breakers and One Double Pole 50 Ampere Ground Fault Breaker
- Standard: UL Listed;Type 3R
- Terminal: Lay in
- Unspsc Number: 39121102
- Voltage Rating: Up to 240 Volts Alternating Current
- Width: 13 IN
Professional Applications
- Residential electrical service metering and distribution
- Small commercial and retail facility power management
- Multi-unit residential properties requiring individual metering
- Professional office buildings and service centers
- Light industrial facilities with single-phase power requirements
- Outdoor electrical installations requiring weather protection
- Emergency services and critical facility backup power systems
Why Choose Milbank Quality?
Milbank delivers proven reliability through UL Listed compliance and Type 3R weather-resistant construction. The aluminum enclosure with powder coat finish ensures long-term durability, while the comprehensive ground fault protection and lever bypass functionality provide enhanced safety and serviceability for professional electrical installations.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 100 Continuous Ampere
- Application:
- Meter Socket
- Brand Name:
- Milbank
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hertz
- Hub Closing Plate:
- Small Hub Opening
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- Breaker Provision
- Number Branch Circuits:
- 6
- Number Of Jaws:
- 5 Terminal
- Number Of Main Breakers:
- 2
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 3
- Phase:
- 1 Phase
- Product Family Code:
- PHDO
- Product Height:
- 35 IN
- Product Length:
- 4.844 IN
- Product Size:
- 4.844L x 13W x35H
- Product Type:
- Ringless Meter Socket
- Receptacle Configuration:
- One NEMA 14-50 and Two NEMA 5-20 Ground Fault
- Standards:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Product Material:
- Aluminum with Powder Coat Finish
- Product Mounting:
- Surface Mount
- Amps:
- 100
- Product Width:
- 13 IN
- Department:
- Electrical
- Product Subgroup:
- Metering & Meter Sockets
- Product Group:
- Power Distribution
Milbank U6134-RL-76GBGR – Frequently Asked Questions
1) Will the Milbank U6134-RL-76GBGR work as an RV or EV pedestal-style service with a 50 amp outlet?
It gives you one NEMA 14-50 and two NEMA 5-20 ground fault receptacles off a single 100 amp, single-phase, 240 volt service. Protection is a double pole 50 amp ground fault breaker for the 14-50 plus two single pole 20 amp breakers for the duplexes. That is the standard arrangement for an RV-style 50 amp hookup or a temporary power stand, with metering built in.
2) Is this a ringless socket and will it match my utility's 5-jaw requirement?
Yes on both counts. The U6134-RL-76GBGR is a ringless design with a 5 terminal (5 jaw) single-position meter mounting, which is what most utilities specify for single-phase 240 volt residential and light commercial service. Utilities differ on ringless versus ring-type, so match it to your local service requirements before you set the can.
3) Can the meter be pulled without killing power to the loads?
That is what the lever bypass is for. Throwing the lever carries the service around the meter so the socket can be de-metered or the meter swapped while the connected loads stay energized. It is the feature utilities and maintenance crews want when the service feeds anything they cannot drop.
4) What are the dimensions of this Milbank socket and how does it mount?
The enclosure measures 4.844 L x 13 W x 35 H inches and is surface mount, so plan on a flat wall or a rack with roughly 35 inches of vertical clearance plus working space in front. Aluminum with a powder coat finish, rated Type 3R for outdoor use.
5) Can I use this for underground service, or is it overhead only?
Either one. Cable entry is rated for overhead or underground, and the unit ships with a small hub opening closing plate up top, so you install a hub for an overhead mast drop or leave it plated and come in from below for a lateral.
6) Is this socket weather rated for an exposed outdoor wall?
Type 3R and UL Listed, with an aluminum body and powder coat finish. Type 3R is the rain and sleet rating normally used for outdoor service equipment, so an exposed exterior wall is the intended location. It is not a washdown or submersion enclosure.
