Milbank U9700-RRL 7 Terminal Ringless Large Hub Open Adapt To Small Hub Open Lever Bypass - 200A Network Service, Utility Grade

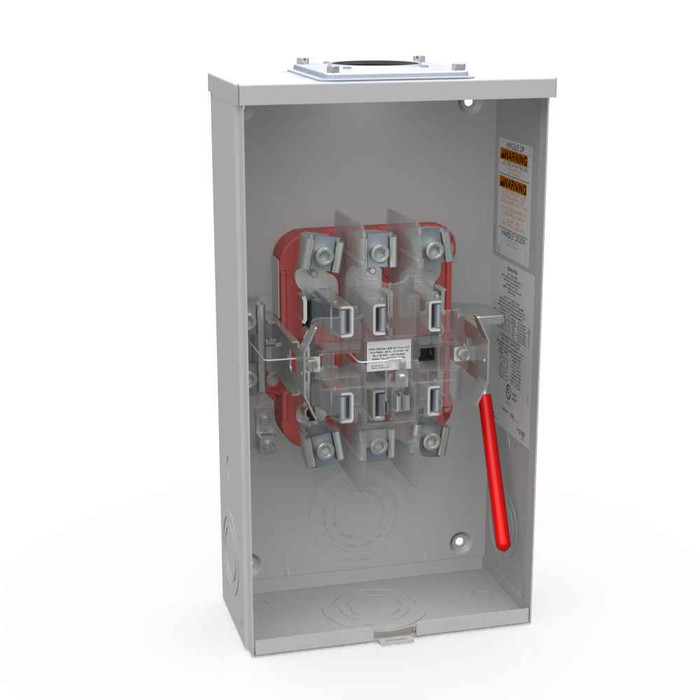

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 7 Terminal Large to Small Hub Adapter

(No reviews yet) Write a Review

Model: U9700-RRL-BLG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$633.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 7 Terminal Large to Small Hub Adapter

Professional utility-grade metering solution with versatile hub configuration

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable network service metering with professional lever bypass functionality. Engineered with G90 galvanized steel construction and powder coat finish, this utility-grade meter socket features 7 terminal configuration with large hub opening adapted to small hub opening for versatile overhead cable entry applications. The surface mount design accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust capacity for demanding commercial and industrial metering applications with reliable current handling.
  • 3-Phase Configuration: Supports three-phase electrical systems for comprehensive power distribution and monitoring in commercial facilities.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption for operational continuity.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor utility environments.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather resistance for reliable outdoor installation.
  • 7 Terminal Ringless Design: Provides secure electrical connections without compression rings for simplified installation and maintenance.
  • Adaptable Hub Configuration: Large to small hub opening adaptation offers installation flexibility for various cable entry requirements.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Hub Opening Adapted to Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 18.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 10 IN

Professional Applications

  • Commercial Building Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Properties
  • Utility Network Service Points
  • Professional Office Buildings
  • Retail and Commercial Centers
  • Municipal and Government Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The glass polyester insulation and lay-in terminal design ensure long-term performance in demanding utility applications, backed by professional-grade materials and manufacturing standards for dependable network service metering.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Hub Opening Adapted to Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
18.5 IN
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
10 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Hub Opening Adapted To Small Hub Opening
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
3
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
7
Product Group:
Power Distribution

Milbank U9700-RRL-BLG – Frequently Asked Questions

1) Will a Milbank U9700-RRL 7 terminal socket work for a 3-phase 4-wire service, or is it a single-phase can?
Seven jaws is the 3-phase configuration. The U9700-RRL is a 3 phase, 60 Hz meter socket rated 200 continuous amps at 600 volts AC, with a single meter position. A single-phase residential service uses a 4 or 5 jaw socket, so if the utility is setting a 1-phase meter this is the wrong can. Confirm the jaw count on the utility's meter form before ordering.
2) Is the Milbank U9700-RRL socket for overhead or underground service?
Overhead. The U9700-RRL is built for overhead cable entry, with a large hub opening adapted down to a small hub opening on top for the service mast or raceway. An underground lateral feeding a socket from below needs a bottom-fed can instead, so this is not the part for a pad-mount or URD service.
3) Does the Milbank U9700-RRL have a main breaker or disconnect in it?
No. It is a meter socket only, zero main breakers and no receptacles, so the service disconnect has to come from a separate panel or fused disconnect downstream. If the job calls for meter and main in one enclosure, you want a meter-main combination, not this socket.
4) Which Milbank U9700-RRL version do I order if the utility requires a barrel lock or a sealing hasp?
Six versions of the U9700-RRL are built for exactly that decision. Standard is U9700-RRL. For a barrel lock provision there are two sizes: U9700-RRL-BLG for a 7/8 inch barrel lock, and U9700-RRL-QG-BL for a 9/16 inch barrel lock. A stainless steel hasp version is U9700-RRL-QG-HSP. Quadplex ground versions are U9700-RRL-QG, and U9700-RRL-QG-AMS for the Ameren approved build. The utility dictates which locking provision they will accept, so match their spec sheet to the suffix.
5) Is the Milbank U9700-RRL approved for Ameren territory?

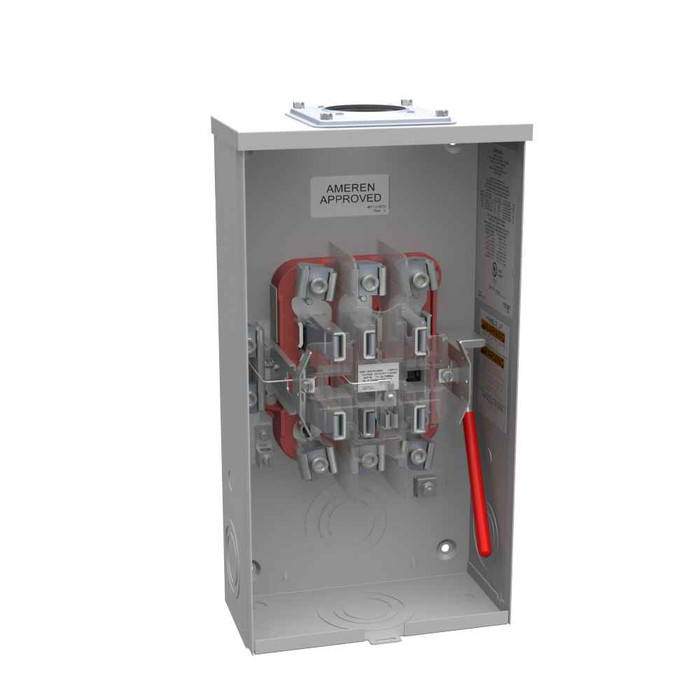

Ameren is called out on this socket, and there is a dedicated Ameren approved build, the U9700-RRL-QG-AMS with quadplex ground. If the service is in Ameren territory, order that suffix rather than the standard version, since the utility's approved list is what the meter tech works from at the set.
6) Can the Milbank U9700-RRL ringless meter socket be installed outdoors on an exterior wall?
Yes, it is UL Listed and Type 3R rated, which is the rain-tight outdoor rating for a surface mounted enclosure. The body is G90 galvanized steel with a powder coat finish for corrosion resistance, and the jaw assembly is insulated with glass polyester. Type 3R is not submersible or hosedown rated, so a washdown or below-grade location needs a higher enclosure type.
7) How much wall space do I need for the Milbank U9700-RRL meter socket?
The can is 18.5 inches high and 10 inches wide, surface mounted. Lay that out with the meter center landing in the utility's required height window, and leave room above for the hub and mast, since the service entrance comes in from overhead.
8) What is the difference between a ringless meter socket and a ring-type socket, and which one does my utility want?
A ringless socket like the U9700-RRL uses a hinged or lift-off cover sealed by the utility instead of a separate locking ring clamping the meter to the socket rim. The utility specifies one or the other in its service handbook, and they are not interchangeable at the meter set. Ringless is the common requirement across much of the Midwest, including Ameren territory, which this socket is built for. Get the utility's answer before ordering, because a ring-type can on a ringless spec gets rejected.
9) What does the large to small hub adapter on the Milbank U9700-RRL mean for my conduit?
The socket ships with a hub closing plate that adapts the large hub opening down to a small hub opening, so a smaller service raceway can land on a can punched for the bigger opening. The actual hub or fitting sized to your conduit is a separate item, and the entry is from overhead, so size it to the mast or raceway feeding the can.
10) Is a 200 amp 3-phase Milbank socket enough for a 200 amp service, or do I need to derate?
200 amps here is a continuous ampere rating, not a short-time or intermittent number, so it carries a 200 amp service at 600 volts AC or less without derating the socket itself. Your conductors still get sized by the load calculation and the terminals cap at 350 kcmil, which is the practical ceiling on what you can land.
