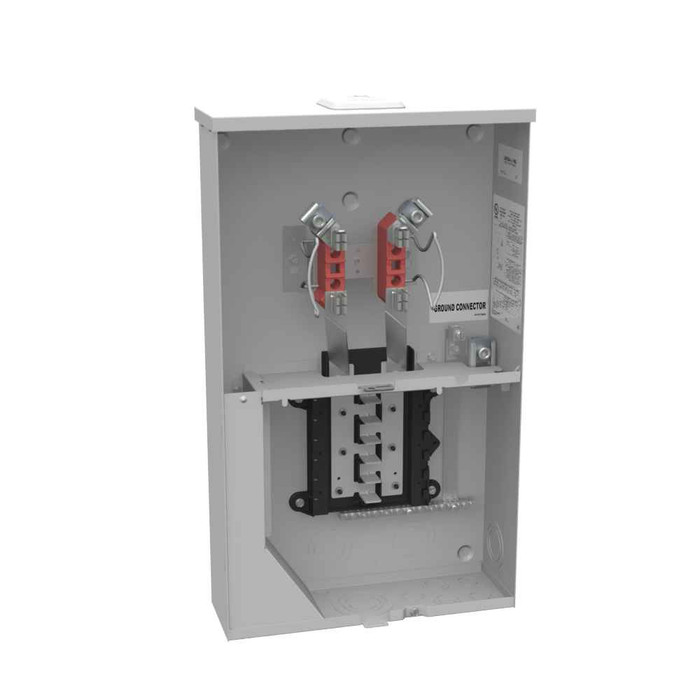

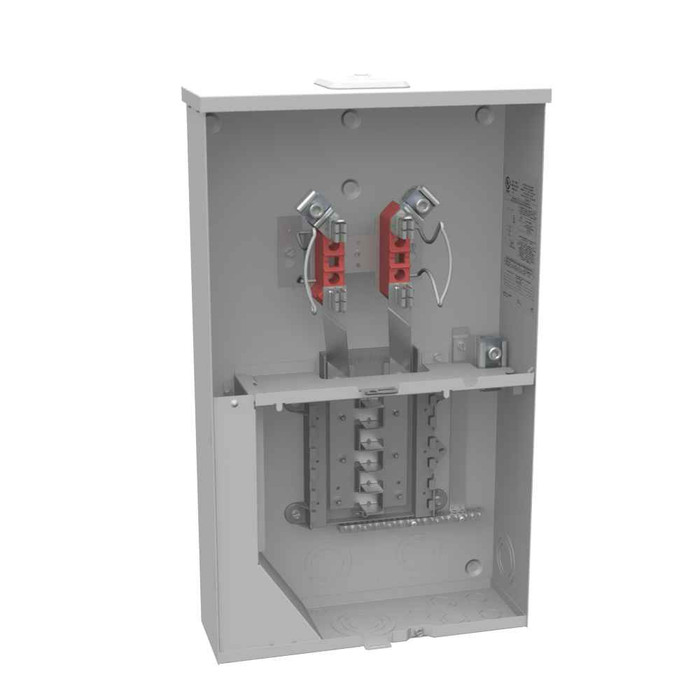

Milbank UAP5024-XL 4 Terminal Ringless Small Closing Plate 12 Branch Circuit Aluminum Painted

Milbank 200A 1-Phase Ringless Meter Socket with Load Center 12-Circuit 4-Terminal Aluminum Surface Mount

(No reviews yet) Write a Review

Model: UAP5024-XL-FMG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$622.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Load Center 12-Circuit 4-Terminal Aluminum Surface Mount

Professional electrical metering and distribution solution with integrated load center

The Milbank 200A 1-Phase Ringless Meter Socket with Load Center combines reliable metering capability with 12-circuit distribution in a durable aluminum construction with powder coat finish. This UL Listed Type 3R unit features 4-terminal ringless design for versatile overhead or underground cable entry, supporting up to 240V AC applications with professional-grade glass polyester insulation and ground bar equipment grounding.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical distribution requirements
  • 4-Terminal Ringless Design: Eliminates need for meter rings while accommodating 6 AWG to 350 kcmil line side wire range for flexible installation
  • 12-Circuit Load Center Integration: Combines metering and distribution in one unit with breaker provision for streamlined electrical system design
  • Type 3R Enclosure Rating: Weather-resistant aluminum construction with powder coat finish ensures reliable outdoor performance
  • Overhead/Underground Cable Entry: Versatile installation options support various service entrance configurations
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations
  • Glass Polyester Insulation: High-quality insulation system provides reliable electrical isolation and long-term performance

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Load Center
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 12
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: HPWR
  • Product Height: 24 IN
  • Product Length: 4.5 IN
  • Product Material: Aluminum with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.125W x24H
  • Product Type: Ringless Meter Socket
  • Special Features: Florida Meter Group
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.125 IN

Professional Applications

  • Residential Service Entrance Applications
  • Small Commercial Buildings
  • Multi-Unit Residential Properties
  • Light Industrial Facilities
  • Retail and Office Buildings
  • Utility Metering Installations
  • Electrical Distribution Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The aluminum housing with powder coat finish and glass polyester insulation system ensures long-term durability in demanding electrical service applications, backed by professional-grade engineering and manufacturing standards.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Load Center
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
12
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
HPWR
Product Height:
24 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.125W x24H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
Aluminum with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.125 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Power Distribution

Milbank UAP5024-XL-FMG – Frequently Asked Questions

1) Does the Milbank UAP5024-XL come with a main breaker?
No. The UAP5024-XL ships with a breaker provision only, and the main breaker count is zero. You supply and install the main breaker yourself, along with the branch breakers for the 12 circuits. Budget for that when you price the job, because the socket alone will not complete a service.
2) What size service entrance conductors will the Milbank 200A ringless meter socket accept?
The line side terminals take 6 AWG up to 350 kcmil, and they are lay-in style, so you drop the conductor in rather than threading it through a lug barrel. That range covers typical 200 amp copper and aluminum service entrance cable.
3) Can this Milbank meter socket combo be used with an underground service, or is it overhead only?
Either one. The UAP5024-XL is built for overhead or underground cable entry, and it comes with a small closing plate so the hub opening can be closed off when you feed from below.
4) Is this meter socket rated for outdoor mounting?
Yes, it is a Type 3R rated enclosure in aluminum with a powder coat finish, and it is UL Listed. Type 3R is the standard rainproof outdoor rating for service equipment, so it is fine on an exterior wall.
5) What is the difference between the standard UAP5024-XL and the UAP5024-XL-FMG?
Same 200A ringless socket and 12-circuit load center either way. The -FMG suffix is the Florida Meter Group version, built to that group's utility requirements. If your serving utility is in the Florida Meter Group, order the FMG; otherwise the standard UAP5024-XL is the one.
6) Does this Milbank socket have a meter bypass lever?
No bypass provision. To pull or change the meter the utility has to open the service, so if your utility or your maintenance routine requires a lever bypass for hot meter changes, this is the wrong unit and you want a bypass-equipped socket instead.
7) Is a 4-terminal socket right for my 200A single-phase residential service?
Four jaws is the standard configuration for single phase, three wire 120/240V self-contained metering, which is what this unit is built for: 1 phase, 60 Hz, up to 240 volts AC. If the utility calls for a 5-jaw or 7-jaw socket, or the service is three phase, this one will not take their meter.
8) Is there a ground bar included, or do I need to add a grounding kit?
Equipment grounding is handled by a ground bar in the enclosure, so you land your equipment grounds there without buying a separate kit. Bonding and neutral treatment still follow your local service-entrance rules.
9) How many circuits can I run out of this meter socket and load center combo?
Twelve branch circuit spaces, fed from a single meter position. That is enough for a small home, an apartment unit, a shop, or a light commercial tenant space. If you need more spaces, or multiple meters for separate tenants, you want a larger load center or a multi-position metering panel.
10) Why choose a ringless meter socket over a ring-type one?
Ringless means the cover itself secures the meter, so no separate sealing ring is needed and the utility seals the cover. Many utilities now specify ringless for residential and light commercial service. Check the utility's approved equipment list first, because a ring-type requirement will reject this socket at inspection.
11) Does this Milbank combo unit include a GFCI receptacle?
No receptacles are built in. The UAP5024-XL is metering plus a 12-space load center only, so if the job calls for an exterior outlet at the service, that gets installed separately.
