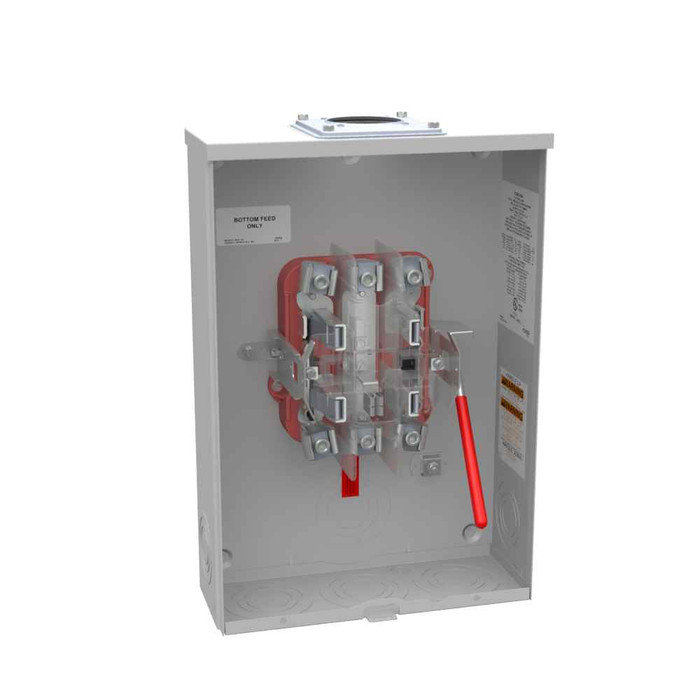

Milbank UAP9551 5 Terminal Ringless Meter Socket - Lever Bypass, Aluminum Painted

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 5 Terminal Aluminum

(No reviews yet) Write a Review

Model: UAP9551-X-QG-HSP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$866.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 5 Terminal Aluminum

Professional electrical metering solution with convenient bypass functionality

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability. This professional-grade meter socket features durable aluminum construction with powder coat finish, 5 terminal configuration, and Type 3R enclosure rating for versatile indoor and outdoor applications. The surface mount design accommodates both overhead and underground cable entry with 6 AWG to 350 kcmil wire capacity.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Lever Bypass Provision: Enables convenient meter removal and maintenance without interrupting power service to critical loads.
  • 5 Terminal Ringless Design: Simplifies installation and reduces connection complexity while maintaining secure electrical contact.
  • Aluminum with Powder Coat Finish: Provides excellent corrosion resistance and long-term durability in various environmental conditions.
  • Type 3R Enclosure Rating: Offers protection against rain, sleet, and ice formation for reliable outdoor performance.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional installations.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: HD5T
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: Aluminum with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential electrical service metering and distribution
  • Small commercial and retail facility power monitoring
  • Multi-unit residential properties requiring individual metering
  • Professional office buildings and service centers
  • Light industrial facilities with moderate power requirements
  • Utility company approved metering installations

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather protection. The aluminum construction with powder coat finish ensures long-term performance, while the glass polyester insulation provides excellent electrical isolation. Professional electricians trust Milbank for consistent quality and code compliance in critical metering applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
HD5T
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
Aluminum with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
5
Product Group:
Power Distribution

Milbank UAP9551-X-QG-HSP – Frequently Asked Questions

1) Is a 5 terminal meter socket right for 120/240V single phase residential service?
Yes. The UAP9551 is a 1-phase, 5 jaw socket rated 200 continuous amps at up to 600VAC, 60 Hz, with one meter position. The fifth jaw is what the utility uses for the neutral/ground reference on a 3-wire single phase service. If your utility specs a 4 jaw socket, or you are metering a 3-phase 7 jaw service, this is the wrong can.
2) Does the Milbank UAP9551 include a main breaker or disconnect?
No. It is a meter socket only, no main breaker and no receptacles. You will need a separate main breaker panel or service disconnect downstream to satisfy your overcurrent and service disconnect requirements. If you want metering and the main in one enclosure, order a meter main combination instead.
3) What does the lever bypass on this Milbank socket actually do for me on a service call?
The lever bypass lets you shunt the meter jaws so the meter can be pulled and swapped without dropping power to the load. For a property manager with tenants on the other side of that meter, or a utility doing a scheduled meter change, that is the difference between a no-outage swap and a coordinated shutdown. Many utilities require lever bypass on 200A sockets, so check the local meter spec before substituting a non-bypass can.
4) Can this meter socket be mounted outdoors on an exterior wall?
Yes. The UAP9551 is UL Listed and rated Type 3R, which is the outdoor rain, sleet and ice enclosure rating, and it is a surface mount can for wall installation. The body is aluminum with a powder coat finish and the internal insulation is glass polyester. Type 3R is not washdown or dust-tight, so for hose-down or heavy dust areas you want a higher rating.
5) Which Milbank UAP9551 version do I order for an underground service versus an overhead drop?
The socket handles either overhead or underground cable entry, but the top treatment differs by option. UAP9551-RRL comes with a large hub opening that adapts down to a small hub opening, which is what you want for an overhead mast or conduit hub. UAP9551-X-QG-HSP comes with a large closing plate, quadplex ground and a stainless steel hasp, suited to an underground lateral where you do not need a top hub and do want a padlockable hasp.
6) What is the difference between a ringless meter socket and a ring-type socket, and does it matter for my utility?
A ringless socket like the UAP9551 uses a hinged or lift-off cover retained by the socket itself instead of a separate sealing ring clamped around the meter rim. Utilities almost always specify one or the other for their territory, and they are not interchangeable in the field, so confirm your utility accepts ringless before ordering. The UAP9551 is ringless, 5 jaw, 200A single phase.
7) Does the UAP9551-X-QG-HSP option give me a way to lock the meter can?
Yes. That version ships with a stainless steel hasp, so you can padlock or utility-seal the cover. It also includes a quadplex ground connector for bonding multiple grounding conductors, and a large closing plate over the top opening. The UAP9551-RRL version instead has a large hub opening with a small hub adapter and does not carry those features.
8) Can I use this 200A socket for individual tenant metering in a multi-unit building?
It works as a single-tenant can only. The UAP9551 has one meter position, so each unit needs its own socket. For a bank of meters on one service, a multi-position meter stack or ganged socket assembly is the cleaner install than a row of individual 13 by 19 inch cans. The 200A rating and 6 AWG to 350 kcmil terminals suit a full-size individual unit service rather than a small sub-feed.
