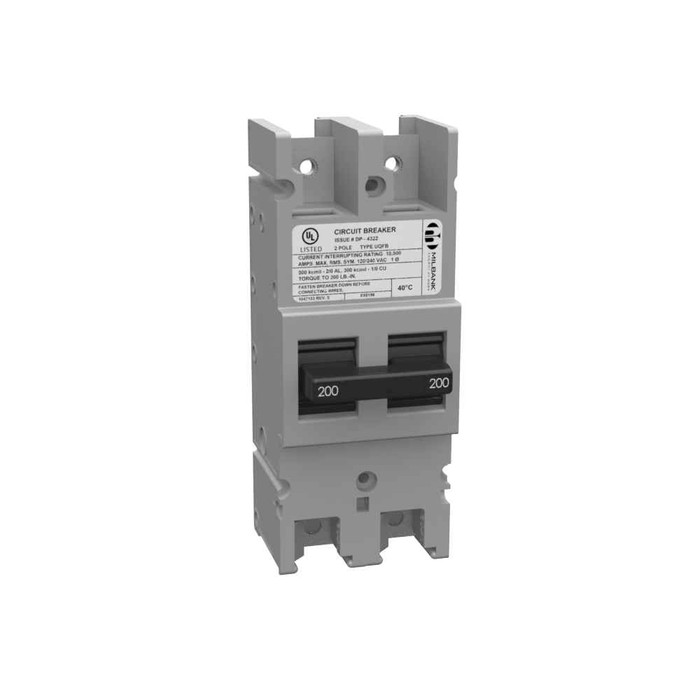

Milbank 100-200 Ampere 2-Pole 240V Circuit Breaker with Threaded Line Tangs

Milbank 100-200 Ampere 2-Pole 240V Circuit Breaker with Threaded Line Tangs

Professional Current Interrupting Device for Electrical Distribution

The Milbank 100-200 ampere circuit breaker delivers reliable electrical protection with 10,000 ampere interrupting capacity and thermal magnetic trip operation. This 2-pole, 240V unit features F-Frame construction with non-metallic housing and specialized line tang configuration with threaded inserts for secure connections in metering accessory applications.

Professional Features & Benefits

• 100-200 Ampere Rating: Provides flexible current capacity for diverse electrical distribution requirements
• 10,000 AIC Rating: Delivers robust fault current interruption capability for enhanced system protection
• Thermal Magnetic Trip: Combines thermal overload and magnetic short-circuit protection for comprehensive circuit safeguarding
• Threaded Line Tangs: Ensures secure utility connections with threaded insert design for reliable electrical contact
• F-Frame Construction: Offers standardized mounting and connection compatibility for professional installations
• UL Listed: Meets rigorous safety and performance standards for code-compliant electrical applications
• Non-Metallic Housing: Provides corrosion resistance and electrical insulation for long-term reliability

Technical Specifications

• Actuator: Lever
• Application: Metering Accessory
• Auxiliary Contacts: No Auxiliary Contacts
• Brand Name: Milbank
• Connection: Lug to Lug
• Departent: Electrical
• Frame: F-Frame
• Frequency Rating: 60 Hertz
• Interrupt Rating: 10,000 Ampere Interrupting Capacity
• Number Of Poles: 2
• Operating Temperature: 40 Degrees Celsius
• Phase: 1 Phase
• Product Family Code: MSCB
• Product Height: 7.438 IN
• Product Length: 3.281 IN
• Product Material: Non Metallic
• Product Type: Current Interrupting Device
• Special Features: Line Tangs Treaded and Load Tangs Unthreaded
• Standard: UL Listed
• Trip Type: Thermal Magnetic
• Unspsc Number: 39121601
• Voltage Rating: 240 Volts Alternating Current
• Width: 3 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical meter socket assemblies and metering equipment installations
• Residential and commercial electrical service entrance applications
• Distribution panel feeder protection and load management systems
• Utility interconnection points requiring reliable overcurrent protection
• Electrical contractor and utility company field installations
• Maintenance and replacement applications in existing electrical infrastructure

Why Choose Milbank Quality?

Milbank circuit breakers combine proven thermal magnetic protection technology with robust F-Frame construction and UL Listed safety compliance. The non-metallic housing provides long-term durability while the specialized tang configuration ensures reliable connections in demanding metering accessory applications, delivering the professional performance electrical contractors and utilities depend on.
