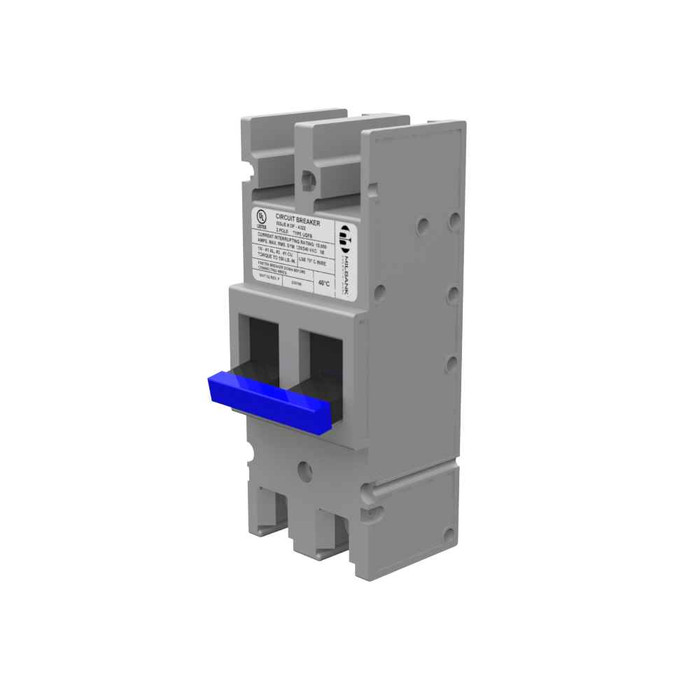

Milbank UQFBH-200-X1 200 Ampere 2 Pole 240 Volt Bolt-on 22K AIC Threaded Tang Line Side

Milbank 200 Amp 2-Pole 240V Circuit Breaker with Threaded Tang Line Side Connection

(No reviews yet) Write a Review

Model: UQFBH-200-X1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,054.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200 Amp 2-Pole 240V Circuit Breaker with Threaded Tang Line Side Connection

Professional Current Interrupting Device for Reliable Electrical Protection

The Milbank 200 amp 2-pole circuit breaker delivers dependable electrical protection with 240V AC operation and 22,000 ampere interrupting capacity. This thermal magnetic circuit breaker features F-frame construction with non-metallic housing and threaded tang line side connections for secure installation. UL Listed for professional applications requiring reliable current interruption and overcurrent protection.

Professional Features & Benefits

  • 200 Ampere Rating: Handles high-capacity electrical loads with reliable overcurrent protection for demanding applications.
  • 22,000 AIC Rating: Provides robust fault current interruption capability for enhanced electrical system safety.
  • Thermal Magnetic Trip: Combines thermal and magnetic protection mechanisms for comprehensive overcurrent detection and response.
  • Threaded Tang Line Side: Ensures secure electrical connections with professional-grade threaded terminal design.
  • F-Frame Construction: Delivers durable performance with standardized frame sizing for consistent installation requirements.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
  • Non-Metallic Housing: Provides reliable insulation and protection while maintaining operational integrity.

Technical Specifications

  • Actuator: Lever
  • Amperage Rating: 200 Ampere
  • Application: Metering Accessory
  • Auxiliary Contacts: No Auxiliary Contacts
  • Brand Name: Milbank
  • Connection: Lug to Lug
  • Departent: Electrical
  • Frame: F-Frame
  • Frequency Rating: 60 Hertz
  • Interrupt Rating: 22,000 Ampere Interrupting Capacity
  • Number Of Poles: 2
  • Operating Temperature: 40 Degrees Celsius
  • Phase: 1 Phase
  • Product Family Code: MSCB
  • Product Height: 7.438 IN
  • Product Length: 3.281 IN
  • Product Material: Non Metallic
  • Product Type: Current Interrupting Device
  • Special Features: Line Side Threaded Tangs
  • Standard: UL Listed
  • Trip Type: Thermal Magnetic
  • Unspsc Number: 39121601
  • Voltage Rating: 240 Volts Alternating Current
  • Width: 3 IN

Professional Applications

  • Residential Main Panel Protection
  • Commercial Electrical Distribution
  • Industrial Control Panels
  • Metering Equipment Protection
  • Electrical Service Upgrades
  • Load Center Applications
  • Professional Electrical Installations

Why Choose Milbank Quality?

Milbank circuit breakers provide dependable electrical protection with UL Listed certification and thermal magnetic trip technology. The non-metallic construction and F-frame design ensure long-term reliability in demanding electrical applications, while the 22,000 AIC rating delivers robust fault protection for professional installations.

Manufacturer Resources

Product Specs

Actuator:
Lever
Amperage Rating:
200 Ampere
Application:
Metering Accessory
Auxiliary Contacts:
No Auxiliary Contacts
Brand Name:
Milbank
Connection:
Lug to Lug
Frame:
F-Frame
Frequency Rating:
60 Hertz
Interrupt Rating:
22,000 Ampere Interrupting Capacity
Number Of Poles:
2
Operating Temperature:
40 Degrees Celsius
Phase:
1 Phase
Product Family Code:
MSCB
Product Height:
7.438 IN
Product Length:
3.281 IN
Product Type:
Current Interrupting Device
Special Features:
Line Side Threaded Tangs
Standards:
UL Listed
Trip Type:
Thermal Magnetic
Unspsc Number:
39121601
Voltage Rating:
240 Volts Alternating Current
Product Material:
Non Metallic
Amps:
200
Product Width:
3 IN
Department:
Electrical
Product Subgroup:
Electrical

Milbank UQFBH-200-X1 – Frequently Asked Questions

1) Will a Milbank UQFBH-200-X1 breaker fit a Milbank meter socket or meter main with threaded tang line side?
The UQFBH-200-X1 is built for exactly that. It is a metering accessory breaker with line side threaded tangs, so the line side bolts to the tangs inside a Milbank meter socket or meter main rather than clipping onto a panel bus. Load side is a lug connection, making the overall arrangement lug to lug. If you are trying to drop this into a standard load center as a branch or main breaker, it is the wrong part, since it has no bus stab.
2) Is 22,000 AIC enough for a 200 amp residential or light commercial service?
22,000 ampere interrupting capacity is the fault rating on the Milbank UQFBH-200-X1, and it covers the available fault current at most 240V single phase services fed from a typical utility transformer. Where the utility or the engineer has run a short circuit study showing available fault current above 22kA at the service point, this breaker cannot be used. Get the available fault current figure from the POCO before you commit on a job with a large transformer close to the meter.
3) Can I use this 200 amp 2-pole Milbank breaker on a 208V or 480V three phase system?
No. It is rated 240 volts AC, 60 hertz, single phase, with two poles. That suits a 120/240V single phase service. A 208Y/120 three phase service needs a three pole device, and 480V is well outside this breaker's voltage rating. Using it on either is a code and safety problem, not just a performance one.
4) What size opening do I need for the Milbank UQFBH-200-X1 breaker?
The breaker measures 7.438 by 3.281 by 3 inches (height, length, width as published by Milbank). Those are the numbers to check against the breaker pocket in the enclosure you are mounting it in, along with the tang spacing on the line side.
5) Does this Milbank breaker have auxiliary or alarm contacts for remote status monitoring?
No auxiliary contacts. The UQFBH-200-X1 is a straight overcurrent device with a lever handle and no provision for signalling trip status back to a BMS or control panel. If a facility needs remote breaker status at the service, that has to come from a different device or a separate monitoring point.
6) Is the Milbank 200 amp F-frame breaker UL Listed, and what is its temperature rating?
UL Listed, with a 40 degree Celsius operating temperature rating, which is the standard ambient basis for breaker current ratings. In a hot mechanical room, attic, or a sun-exposed meter enclosure running above that ambient, the breaker will trip earlier than its 200 amp nameplate suggests, so allow for it when siting the equipment.
7) What is the F-frame designation on this Milbank breaker and why does it matter when ordering?
F-frame is the physical frame class, and it determines which Milbank enclosures and breaker pockets the device drops into. Combined with the MSCB product family code and the full part number UQFBH-200-X1, that is what a distributor or counter needs to match a replacement to an existing meter main. Quoting amperage alone is not enough, since the tang arrangement and frame have to line up too.
8) How does a thermal magnetic breaker like this one protect the service?
Two mechanisms in one device. The thermal element responds to sustained overloads, letting brief inrush pass but tripping on a prolonged draw above 200 amps. The magnetic element reacts instantly to a short circuit or ground fault. That combination is what the UQFBH-200-X1 uses, with a lever actuator for manual on, off, and reset.
9) Is the housing on this breaker metal or plastic, and does that affect grounding?
Non-metallic housing. The case itself is insulating, so there is no bonding path through the breaker body, and grounding and bonding are handled by the enclosure and the neutral/ground bar per the service equipment design. Nothing about the breaker case substitutes for a proper grounding electrode conductor or bonding jumper.
