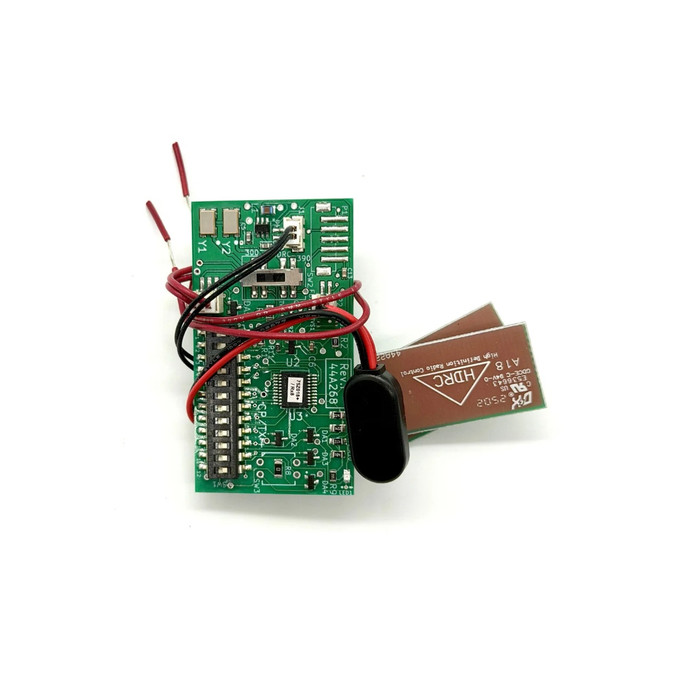

MS Sedco MS Sedco CP/TX-PCB ClearPath Radio Control Transmitter Circuit Board Only MSS-CP/TX-PCB

MS Sedco CP/TX-PCB ClearPath Radio Control Transmitter Circuit Board for Automatic Door Activation

(No reviews yet) Write a Review

Model: CP/TX-PCB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$90.00
$72.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MS Sedco CP/TX-PCB ClearPath Radio Control Transmitter Circuit Board for Automatic Door Activation

The MS Sedco CP/TX-PCB is the core printed circuit board (PCB) from the ClearPath's Radio Control Door Activation System, offered in board-only form for repairs, retrofits, and OEM integration. Measuring a compact 4" L x 2" W x 1" H, this lightweight PCB supports three selectable frequencies — HDRC' (High Definition Radio Control'), 300 MHz, and 390 MHz — ensuring broad compatibility with legacy MS Sedco transmitters, prior-generation CP/RX receivers, and products from other manufacturers. FCC Licensed for safe, legal operation, this transmitter circuit board is an ideal replacement or upgrade component for ADA-compliant automatic door systems.

Key Features

  • Compact PCB Dimensions: Measures 4" L x 2" W x 1" H, making it ideal for integration into bollards, push plates, E242464-type devices, and other compact housings.
  • Three Selectable Frequencies: Supports HDRC' (High Definition Radio Control'), 300 MHz, and 390 MHz for compatibility with legacy MS Sedco transmitters, prior-generation CP/RX receivers, and third-party systems.
  • HDRC' Technology: Guarantees precise signal transmission unaffected by outside RF interference, delivering the most dependable wireless activation for automatic doors.
  • Five Programming Modes: Configurable as a Standard Receiver, Receiver with Adjustable Time Delay (5–20 seconds), Dual Channel Receiver (requires CP/RXM module), Receiver with Sequenced Outputs (requires CP/RXM module), or Receiver with Ratchet Relay (requires CP/RXR module).
  • FCC Licensed: Complies with regulatory standards for safe and legal wireless performance in commercial installations.
  • Board-Only Format: Supplied as the circuit board only — the same advanced PCB found in full ClearPath' kits and mounting assemblies — perfect for repairs, retrofits, or custom OEM builds.
  • Compatible Accessories: Optional CP/RXM module required for Dual Channel and Sequenced Output modes; CP/RXR module required for Ratchet Relay mode. Compatible with E242464-type devices.

Certifications & Compliance

  • FCC Licensed — complies with regulatory standards for safe, legal wireless operation
  • ADA-Compliant Automatic Door System Compatible
  • Commercial Grade Electronic Access Control Component

Technical Specifications

  • Operating Frequency: User-selectable 300MHz, 390MHz or HDRC (filtered 390MHz)
  • Form Factor: Transmitter circuit board only, for embedded/custom installations
  • Size: PCB only - 2.4" x 1.3" x 0.25" (6cm x 3.3cm x 0.64cm)
  • Input Power: 9V alkaline battery
  • Certification: FCC

Typical Applications

  • ADA-Compliant Automatic Door Systems
  • CP TX Wall Mount Transmitter Retrofits and Repairs
  • New Installations Using MS Sedco ClearPath' Components
  • OEM Integration into Custom Door Activation Assemblies
  • Systems Referencing ClearPath CP TX or E242464 Part Numbers
  • Commercial Building Entrance Automation
  • Healthcare and Educational Facility Automatic Door Controls

Why MS Sedco ClearPath?

MS Sedco ClearPath' products are recognized industry-wide for delivering the most dependable wireless activation for automatic doors, with HDRC' technology engineered to eliminate RF interference in demanding commercial environments. The CP/TX-PCB circuit board provides the same advanced performance found in full ClearPath' kits, offering professional-grade reliability in a compact, versatile board-only format suited for repairs, retrofits, and custom integrations.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Circuit Board
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Series:
300/390/HDRC Radio Control
Tags:
ms sedco transmitter, ms sedco cp tx, cp tx wall mounttransmitter, clearpath cp tx, e242464, cp tx
Product Model:
CP/TX-PCB
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco CP/TX-PCB – Frequently Asked Questions

1) Is the MS Sedco CP/TX-PCB the whole wall transmitter or just the board?
Board only. The CP/TX-PCB is the printed circuit board out of the ClearPath radio control transmitter, sold without housing, plate, or mounting hardware. It's what you buy when the existing CP TX transmitter has failed electrically but the housing on the wall is fine, or when you're embedding a ClearPath transmitter into a bollard, push plate, or a custom OEM assembly of your own. If you need a complete wall-mount activation station, the board on its own won't get you there.
2) Will the CP/TX-PCB board fit inside my existing bollard or push plate housing?
The bare PCB measures 2.4 x 1.3 x 0.25 inches (6 x 3.3 x 0.64 cm), which is what governs whether it drops into a bollard, push plate, or E242464-type device. Note the packaged product is listed at 4 x 2 x 1 inches; the board itself is the smaller figure, so measure your cavity against 2.4 x 1.3 x 0.25.
3) What powers the ClearPath CP/TX-PCB transmitter board, does it need low voltage run to it?
No wiring run needed. The transmitter board runs on a 9V alkaline battery, so an installer can put an activation point on a glass wall, a freestanding bollard, or a masonry column with no conduit and no transformer. That's the practical reason this board ends up in retrofits where pulling low voltage to the actuator location isn't realistic.
4) Will a new CP/TX-PCB transmitter board work with the older ClearPath receiver already on my door operator?
Frequency is selectable on the board, and that's what makes it work. It runs 300 MHz, 390 MHz, or HDRC (a filtered 390 MHz), so you set it to match whatever the receiver at the operator is listening on, including prior-generation CP/RX receivers and legacy MS Sedco transmitters. Set the board to the same frequency the rest of the system is already using and you don't have to touch the receiver side.
5) I have an actuator marked E242464 that stopped transmitting, is this the right replacement board?
Yes, the CP/TX-PCB is the transmitter board used in E242464-type devices and in the CP TX wall mount transmitter, and repairing those is one of its stated uses. If the housing and switch are intact and the door simply stopped responding, swapping the board and setting it to the frequency your receiver runs is the repair.
6) When should I use HDRC instead of plain 300 or 390 MHz on a ClearPath transmitter?
HDRC is the filtered 390 MHz mode, and it's the one to pick on a new or all-ClearPath system where RF noise is the problem, since it's built to keep outside RF interference off the signal. Choose straight 300 MHz or 390 MHz instead when you're adding a transmitter to an existing installation and have to match what the receiver already runs, or when you're talking to a third-party system. Mixed-vintage buildings are usually the second case.
7) Do I need to buy anything else with the CP/TX-PCB to get dual channel or a sequenced output?
Those modes live on the receiver side and take add-on modules. Dual Channel and Sequenced Outputs both require the CP/RXM module, and Ratchet Relay mode requires the CP/RXR module. Standard receiver operation and the adjustable time delay mode (5 to 20 seconds) need no extra module. Budget the module into the order if you're sequencing a vestibule pair or driving a ratchet relay.
8) Is the CP/TX-PCB legal to install in a commercial building, and does it work on an ADA automatic door?
The board is FCC Licensed for wireless operation and is a commercial-grade access control component intended for ADA-compliant automatic door systems, which is the usual application: a wireless actuator that triggers the operator on a barrier-free entrance in healthcare, education, and commercial entrances.
9) How many CP/TX-PCB boards do I order to standardize the automatic entrances across a facility?
One board per transmitter point. There is a single model, CP/TX-PCB, with no finish, frequency, or option variants to specify, because frequency is set on the board itself at install. So a property manager or MRO buyer stocking spares for a campus orders the same part number regardless of which entrance it goes to or which of the three frequencies that entrance runs.
