MS Sedco ClearPath CP/RX Multi...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$87.00
$78.04
MS Sedco MS Sedco ClearPath Radio Control Multi-Mode Compact Receiver MSS-CP/RX

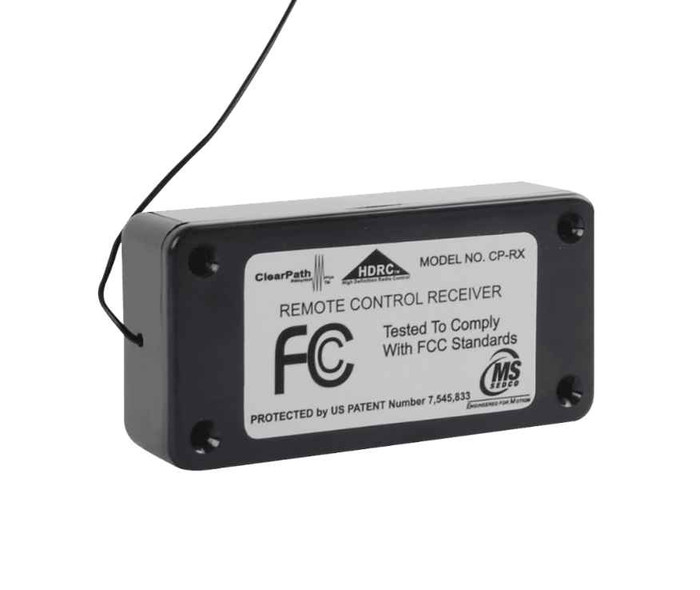

MS Sedco ClearPath CP/RX Multi-Mode Compact Radio Control Receiver for Automatic Doors

(No reviews yet) Write a Review

Model: CP/RX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.00
$78.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MS Sedco ClearPath CP/RX Multi-Mode Compact Radio Control Receiver for Automatic Doors

The MS Sedco ClearPath™ CP/RX is a compact, multi-mode radio control receiver engineered for reliable wireless activation of automatic doors in demanding commercial environments. Measuring just 4" L x 2" W x 1" H, this receiver supports three selectable frequencies — HDRC™ (High Definition Radio Control™), 300 MHz, and 390 MHz — providing seamless compatibility with both legacy MS SEDCO systems and many third-party devices. FCC licensed and built around a proprietary electronic filter, the ClearPath™ CP/RX delivers interference-resistant performance even in high RF noise environments.

Key Features

  • Compact Form Factor: Dimensions of 4" L x 2" W x 1" H allow for flexible mounting in space-constrained installations.
  • Three Selectable Frequencies: Supports HDRC™ (High Definition Radio Control™), 300 MHz, and 390 MHz via a simple switch slide for instant frequency selection.
  • HDRC™ Interference-Resistant Technology: Transmits a fixed, interference-resistant frequency processed through a proprietary electronic filter, ensuring accurate door activation in high RF noise environments.
  • 5 Programmable Receiver Modes: Configurable as a Standard Receiver, Receiver with Adjustable Time Delay (5, 10, 15, or 20 seconds), Dual Channel Receiver*, Receiver with Sequenced Outputs*, or Receiver with Ratchet Relay — covering a wide range of application requirements.
  • Expandable via Plug-In Modules: Modes 3 and 4 require the CP/RXM module; Mode 5 requires the CP/RXR module — all modules plug directly into the CP/RX main circuit board for easy expansion.
  • Legacy & Third-Party Compatibility: Interoperable with previous MS SEDCO receivers and many third-party systems, making it ideal for retrofit and new installations alike.
  • FCC Licensed: Fully FCC licensed for compliant operation in commercial access control and automatic door applications.

Certifications & Compliance

  • FCC Licensed
  • Commercial Grade

Technical Specifications

  • Type: Multi-mode receiver - Modes 1 & 2, single output with optional 0/5/10/15/20-second time delay
  • Relay Output: NO/CC/COM, rated 3A
  • Input Power: 12-24V AC/DC
  • Certification: FCC
  • Operating Temperature: -4F to 140F (-20C to 60C)
  • Housing: Blue ABS plastic

Typical Applications

  • Commercial Office Building Automatic Door Systems
  • Healthcare Facility Hands-Free Door Activation
  • Retail Establishment Automatic Entrance Control
  • Educational Institution Access Control Integration
  • Industrial and Warehouse Facility Door Automation
  • RF Access Control System Retrofits and Upgrades
  • Interference-Sensitive Environments Requiring Reliable Wireless Activation

Why MS Sedco ClearPath?

MS Sedco ClearPath™ receivers are built around proprietary HDRC™ technology and a purpose-designed electronic filter that sets them apart from conventional radio control systems. The CP/RX's multi-mode programmability, three-frequency flexibility, and compact 4" L x 2" W x 1" H construction make it a professional-grade solution engineered for the reliability demands of commercial automatic door applications.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Receiver
Subcategory:
Radio Control
Commercial/Residential:
Commercial
Electronic:
Yes
Series:
300/390/HDRC Radio Control
Tags:
ms sedco receiver
Product Model:
MCP/RX
Product Category:
Electronic Access Controls
Department:
Door Hardware

MS Sedco CP/RX – Frequently Asked Questions

1) Will the MS Sedco ClearPath CP/RX receiver work with my existing 300 MHz or 390 MHz door transmitters?
Yes. The ClearPath CP/RX runs three selectable frequencies, HDRC, 300 MHz and 390 MHz, and you pick one with a slide switch on the board. That covers previous MS SEDCO receivers and many third-party systems, so an older 300 or 390 MHz push plate or key fob keeps working when you swap the receiver. If you are not fighting RF noise, set it to match whatever your transmitters already send; HDRC is the option to move to when you replace the transmitters too.
2) What voltage does the MS Sedco CP/RX radio receiver need, and can I power it off the door operator?
Input power is 12-24V AC or DC, so it takes the accessory power most automatic door operators already provide on their aux terminals, in either AC or DC form. No separate supply or rectifier is needed as long as the operator's auxiliary output falls in that band.
3) What kind of output does the ClearPath CP/RX have for wiring into a door operator?
One dry relay output, NO/CC/COM, rated 3A. You land the operator's activation input across COM and the normally open contact, the same two-wire dry contact an operator expects from a push plate. In Modes 1 and 2 that is a single output; a second channel or sequenced outputs requires the CP/RXM plug-in module.
4) Do I have to order anything extra to get dual channel or ratchet relay operation on the CP/RX?
Yes, and this is the ordering detail people miss. The CP/RX board on its own covers Mode 1 (standard receiver) and Mode 2 (adjustable time delay of 5, 10, 15 or 20 seconds). Mode 3 (dual channel) and Mode 4 (sequenced outputs) both need the CP/RXM plug-in module. Mode 5 (ratchet relay, for latching a door open and closed on alternating signals) needs the CP/RXR module. Both plug straight into the main circuit board, so it is an add-on part rather than a different receiver.
5) My automatic door opens on its own from nearby radio interference. Will the ClearPath receiver fix that?
That is the problem HDRC is built for. HDRC (High Definition Radio Control) transmits a fixed, interference-resistant frequency that the CP/RX runs through a proprietary electronic filter before it will fire the relay, so stray RF in the building does not trip the door. Two things to know: you have to set the receiver to HDRC on the frequency switch, and your transmitters have to be HDRC as well. Leaving it on 300 or 390 MHz keeps you on the same open frequencies that caused the phantom activations.
6) Is one CP/RX receiver enough for a vestibule with two doors, or do I need two?
One receiver can drive two openings, but only with the module. The base board gives a single relay output. Add the CP/RXM and Mode 3 makes it a dual channel receiver (two transmitters or two buttons, two independent outputs) while Mode 4 gives sequenced outputs, which is the vestibule case where the outer door fires first and the inner door follows. Without CP/RXM you are buying a second CP/RX.
7) How long will the door stay open after a signal from the CP/RX receiver?
Hold time is set on the receiver, not just the operator. Mode 2 gives an adjustable time delay of 5, 10, 15 or 20 seconds on the single relay output, and the timing spec also lists a 0-second setting for straight momentary activation. That is what you use when a wheelchair user needs a longer hold at a vestibule than the operator's own timer allows.
8) Will the MS Sedco CP/RX receiver fit inside the header of an automatic door operator?
It measures 4 x 2 x 1 inches, which is small enough to mount inside most operator headers or a small junction box rather than needing its own surface enclosure. The housing is blue ABS plastic.
9) Can the ClearPath CP/RX be mounted in an unheated vestibule or a cold warehouse entrance?
Operating range is -4F to 140F (-20C to 60C), so an unconditioned vestibule, a loading dock, or a warehouse entry is within spec. It is a commercial-grade device, not a residential garage receiver.
10) Can I use the CP/RX to hold a door open until someone presses the transmitter again?
That is Mode 5, the ratchet relay setting: the relay latches on one signal and releases on the next, instead of timing out. It requires the CP/RXR plug-in module on the CP/RX board. Useful for holding an entrance open during a delivery or a move-in without propping it.
11) Is the MS Sedco CP/RX FCC licensed for use in a commercial building?
Yes, the CP/RX is FCC licensed. That is the only certification carried on the receiver; it is an activation device wired to the operator's input, so any fire or egress listing on the opening comes from the door operator and hardware, not from this receiver.
12) What is the difference between the ClearPath CP/RX and a plain single-channel door receiver?
Frequency choice and expandability. A plain receiver is fixed to one frequency and one output. The CP/RX switches between HDRC, 300 MHz and 390 MHz, so the same part covers a retrofit onto legacy MS SEDCO transmitters and a new HDRC install, and its five programmable modes cover timed hold, dual channel, sequenced outputs and ratchet relay as the job needs them. If all you need is momentary activation on an existing frequency, you are only using Mode 1 of it.
