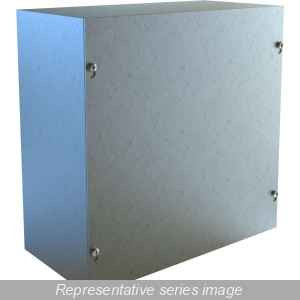

Hammond Manufacturing CSG303012 N1 SCR COV 30X30X12 GALV - 30 x 30 x 12

No. The CSG303012 is a Type 1 enclosure with an IP20 rating, which means indoor use only in clean, dry locations. It protects against incidental contact with the enclosed equipment and falling dirt, but nothing about it is sealed against water, driving rain, hose-down, or oil. For a wet or outdoor location you need a Type 3R or Type 4 enclosure instead.

30 inches high by 30 inches wide by 12 inches deep. That 12 inch depth is what decides most jobs, since it sets how much room you have behind the cover for gutter space, terminal blocks, DIN rail, or a back panel with components stacked on it. Verify your deepest device plus wire bend radius fits inside 12 inches before you commit.

Both. The enclosure carries UL file E65324 and CSA certification LR21001, and the standards record lists csa and ul. That is normally what an electrical inspector wants to see on a Type 1 junction or pull box in a commercial or institutional building.

The CSG303012 is galvanized steel, so it ships unpainted with a zinc coating that resists surface rust better than a painted mild steel box in a humid indoor space like a mechanical or pump room. You can paint it to match a wall, but nothing requires it. Keep in mind the Type 1 rating still limits it to indoor use regardless of the galvanizing.

98 lbs empty. That is a two-person lift and a two-person mount at 30 inches square. Plan the wall anchors for the empty weight plus whatever back panel, breakers, transformers, or terminal blocks go inside, and set the mounting hardware into structure or unistrut rather than drywall anchors.

The screw cover means the entire 30 x 30 front panel comes off with fasteners rather than swinging open. That suits a pull box, junction box, or terminal box you open occasionally during install or troubleshooting. If somebody has to get inside routinely, at a control panel or a device that is adjusted often, a hinged cover is the better choice because the screw cover has to be fully removed and set down each time, and at this size that is an awkward panel to handle solo.

No back panel comes with it. The CSG303012 is the enclosure and its screw cover only. If you are mounting components rather than just splicing conductors, order a separate panel sized for a 30 x 30 box, and account for the panel standoff depth when you check clearance against the 12 inch interior depth.

It does. The enclosure is recorded as both RoHS compliant and REACH compliant, and it is also USMCA compliant with Canada as the country of origin, which is what procurement usually needs for domestic-content and trade documentation on public work.

Plan on making your own openings. This is a screw cover Type 1 galvanized box sized 30 x 30 x 12, and conduit entries get located to suit the run. Lay out your hits on the sides or back before you set the box, and use a hole punch sized to the conduit rather than a hole saw to keep the opening clean on galvanized steel.

One part number, one size. CSG303012 is the 30 x 30 x 12 galvanized screw cover Type 1 box, and the dimensions are baked into the model number itself, so there is nothing to configure when you order. Other sizes in the family carry their own designations.
