Hammond Manufacturing HJ1084HLP N4 J BOX HINGED 10X8X4 - 10 x 8 x 4

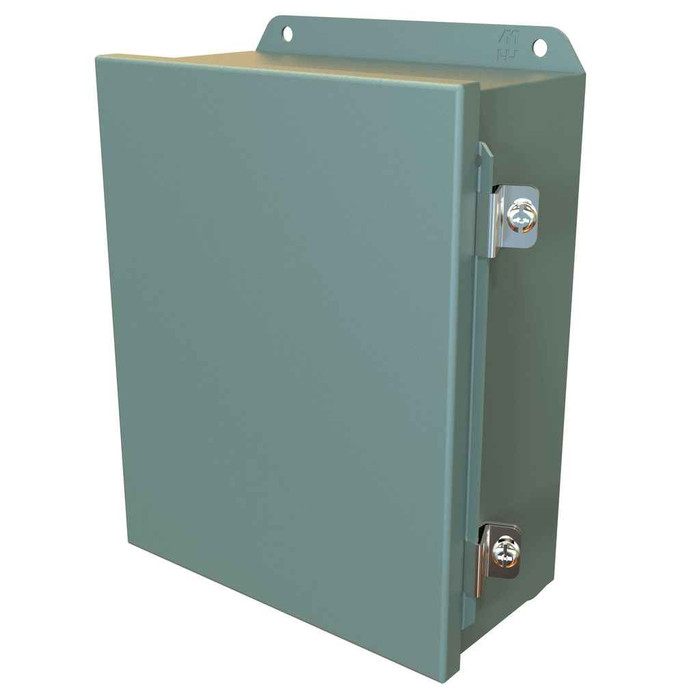

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 10x8x4 Mild Steel Enclosure

(No reviews yet) Write a Review

Model: HJ1084HLP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$241.76
$198.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 10x8x4 Mild Steel Enclosure

Professional NEMA-rated electrical enclosure for reliable protection

The Hammond Manufacturing NEMA 4 Junction Box delivers professional-grade electrical protection with its robust mild steel construction and hinged cover design. This 10x8x4 enclosure provides reliable housing for electrical connections and components with NEMA Type 4, 3R, 12, and 13 ratings, ensuring versatile protection against environmental conditions. The IP66 rating and CSA/UL/CE certifications guarantee dependable performance for demanding applications.

Professional Features & Benefits

  • NEMA Type 4/3R/12/13 Ratings: Comprehensive protection against dust, water, and environmental hazards for versatile installation environments
  • 10x8x4 Dimensions: Optimal size for housing electrical connections and components with adequate working space
  • Mild Steel Construction: Durable material provides long-lasting protection and structural integrity
  • IP66 Rating: International protection standard ensures dust-tight and water-resistant performance
  • Hinged Cover Design: Convenient access for installation, maintenance, and service operations
  • CSA/UL/CE Certifications: Multiple safety standards compliance ensures reliable performance and code acceptance
  • 8 lbs Weight: Substantial construction provides stability while remaining manageable for installation

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 4
  • Ip Rating: IP66
  • Panel: Available (sold separately)
  • Product Height: 10
  • Product Material: Mild Steel
  • Product Weight: 8 lbs
  • Product Width: 8
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-12, type-13, type-4
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Systems
  • Commercial Electrical Installations
  • Outdoor Equipment Housing
  • Manufacturing Facilities
  • Utility and Infrastructure Projects
  • Marine and Harsh Environment Applications
  • Telecommunications Equipment Protection

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing delivers proven reliability through comprehensive NEMA and IP ratings, multiple international certifications including CSA, UL, and CE standards, and robust mild steel construction. The company's commitment to quality is demonstrated through REACH, RoHS, and USMCA compliance, ensuring dependable performance and regulatory acceptance for professional electrical installations.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Available (sold separately)
Product Height:
10
Product Material:
Mild Steel
Product Weight:
8 lbs
Product Width:
8
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-12, type-13, type-4
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
4

Hammond Manufacturing HJ1084HLP – Frequently Asked Questions

1) Can the Hammond HJ1084HLP junction box be mounted outdoors or in a washdown area?
Yes. The HJ1084HLP carries NEMA Type 4, 3R, 12 and 13 ratings along with IP66, so it handles outdoor rain exposure, hose-directed water, falling dirt, dust, and dripping oil or coolant. That combination covers wet outdoor mounting, washdown production areas, and dusty plant floors. It is mild steel, so painted finish integrity matters in corrosive or salt environments; stainless is the choice where chemicals attack coated steel.
2) Does a back panel come with the Hammond HJ1084HLP 10x8x4 enclosure?
No panel is included. A mounting panel for this box is available as a separate order line, so if you plan to mount a terminal strip, relays, or a small drive inside, add the panel to the order. The enclosure itself ships as the box and hinged cover.
3) What are the actual box dimensions on the Hammond HJ1084HLP, and will a panel-mount device fit inside?
The box measures 10 high by 8 wide by 4 deep in inches. The 4 inch depth is the number that decides most jobs: it leaves room for terminal blocks, small contactors, and wire gutter, but deep-bodied devices such as larger VFDs or breakers with long throats will need a 6 or 8 inch deep enclosure instead.
4) Will the Hammond HJ1084HLP pass an inspection on a commercial job?
It is built to CSA, UL and CE standards, with UL file E65324 and CSA certification LR21001 on record. Those file numbers are what an inspector or a submittal reviewer asks for when the drawing calls out a listed Type 4 enclosure.
5) Is a hinged cover or a screw-on lift-off cover better for a junction box?
A hinged cover, which is what the HJ1084HLP uses, is the right pick anywhere you open the box more than once: troubleshooting points, terminal junctions, and anything mounted at height where a loose cover could drop. Screw-cover boxes are fine for a seal-and-forget splice, and they cost less in labor nowhere else. With the hinge, the cover stays captive and one person can work the box on a ladder.
6) Is the Hammond HJ1084HLP acceptable for government or federally funded work with domestic content rules?
It is made in Canada and is USMCA compliant, which covers trade-agreement sourcing requirements on many public projects. It is also REACH and RoHS compliant for environmental documentation packages.
7) How heavy is the 10x8x4 Hammond steel junction box, and does it need strut or will unistrut-free wall anchors hold it?
It weighs 8 lbs empty. On a solid wall, four anchors sized to the mounting feet handle that easily; on metal stud or drywall you want the box landed on backing or a strut channel, since components, a back panel, and conduit weight add to the 8 lbs quickly.
8) What is the Hammond part number for the 10x8x4 NEMA 4 hinged junction box?
HJ1084HLP is the Hammond Manufacturing designation. The digits read out the size directly, 10 x 8 x 4 inches, which is how the rest of the HJ hinged-cover family is numbered as well.
