Hammond Manufacturing HJ1086HLP N4 J BOX HINGED 10X8X6 - 10 x 8 x 6

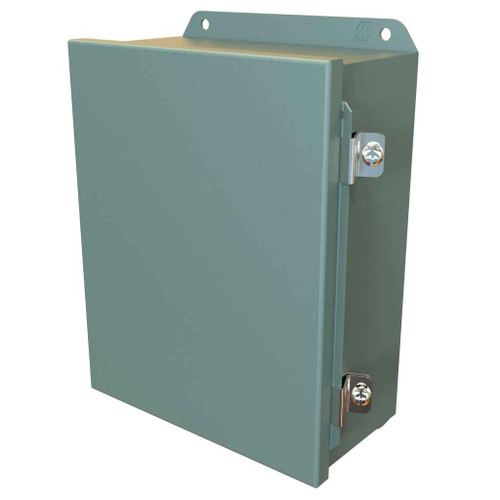

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 10x8x6 Mild Steel Enclosure

(No reviews yet) Write a Review

Model: HJ1086HLP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$269.61
$227.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 10x8x6 Mild Steel Enclosure

Professional NEMA-rated electrical enclosure for demanding industrial applications

Hammond Manufacturing delivers professional-grade electrical protection with this NEMA 4 junction box featuring a hinged cover design and robust 10x8x6 mild steel construction. This IP66-rated enclosure provides reliable protection for electrical connections and components in both indoor and outdoor installations, meeting multiple NEMA type ratings including Type 3R, Type 12, Type 13, and Type 4 for versatile application compatibility.

Professional Features & Benefits

  • NEMA Type 4 Rating: Provides superior protection against water ingress, dust, and environmental contaminants for reliable long-term performance.
  • IP66 Protection: Ensures complete dust-tight sealing and protection against powerful water jets for demanding industrial environments.
  • Mild Steel Construction: Delivers exceptional durability and mechanical strength to withstand harsh operating conditions and physical impacts.
  • Hinged Cover Design: Enables convenient access for installation, maintenance, and inspection while maintaining secure closure.
  • 10x8x6 Dimensions: Provides ample interior space for electrical connections, terminal blocks, and control components in a compact footprint.
  • Multi-Standard Compliance: CSA, UL, and CE certifications ensure global regulatory compliance and professional installation confidence.
  • Multiple Type Ratings: Type 3R, 12, 13, and 4 ratings offer versatile application flexibility across indoor and outdoor installations.

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 6
  • Ip Rating: IP66
  • Panel: Available (sold separately)
  • Product Height: 10
  • Product Material: Mild Steel
  • Product Weight: 10 lbs
  • Product Width: 8
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-12, type-13, type-4
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Panels and Electrical Distribution
  • Outdoor Electrical Equipment Protection
  • Commercial Building Electrical Systems
  • Manufacturing Facility Junction Points
  • Water Treatment and Processing Plants
  • Food Processing and Pharmaceutical Facilities
  • Marine and Coastal Installations

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing provides trusted electrical enclosure solutions with comprehensive CSA, UL, and CE certifications ensuring global regulatory compliance. The robust mild steel construction and multiple NEMA type ratings deliver reliable protection across diverse industrial applications, backed by rigorous quality standards and professional-grade manufacturing processes.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Available (sold separately)
Product Height:
10
Product Material:
Mild Steel
Product Weight:
10 lbs
Product Width:
8
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-12, type-13, type-4
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
6

Hammond Manufacturing HJ1086HLP – Frequently Asked Questions

1) Can the Hammond HJ1086HLP junction box be mounted outdoors?
Yes. The HJ1086HLP carries Type 3R and Type 4 ratings, so it's suited to outdoor use where rain, sleet and hose-directed water are a concern, and it also holds Type 12 and Type 13 for indoor dust, drip and oil environments. The IP66 rating covers dust-tight sealing and powerful water jets. Mild steel body, so on coastal or heavily washed-down installs check that the paint finish stays intact.
2) What are the actual box dimensions on the Hammond HJ1086HLP, and is that inside or outside?
It's a 10 x 8 x 6 box: 10 inches height, 8 inches width, 6 inches depth. Those are the enclosure's stated body dimensions, so when you're laying out terminal blocks or a small control assembly, work from 6 inches of usable depth behind the hinged cover and allow for cover hardware and any conduit hubs you add.
3) Does the Hammond HJ1086HLP come with a back panel for mounting components?
No, the box ships without one. An inner mounting panel is available for it but is sold separately, so if you're mounting a terminal strip, relays or a small drive you need to order the panel as a second line item. For pure wire-splicing junction work you don't need it.
4) Is the Hammond HJ1086HLP UL listed, and what is the file number?
It's built to CSA, UL and CE standards. The UL file is E65324 and the CSA certification is LR21001. Those are the numbers an inspector or a spec reviewer will ask for on an industrial control or distribution install.
5) Does this Hammond junction box come with knockouts or do I drill my own conduit holes?
The HJ1086HLP is a sealed NEMA 4 style enclosure, so you make your own openings and use listed watertight hubs or sealing fittings. Drilling the sides or bottom rather than the top keeps water off the penetration and preserves the IP66 and Type 4 performance of the box.
6) Why choose a hinged-cover enclosure over a screw-cover junction box?
Hinged is worth it anywhere you'll open the box more than once. On a screw cover you're handling a loose lid and a dozen screws at height, and a dropped gasketed cover is how a Type 4 box stops being Type 4. The HJ1086HLP's cover stays attached for wiring, inspection and troubleshooting. At 10 lbs it's a two-hand lift onto a bracket but a one-person install.
7) Will the Hammond HJ1086HLP pass a REACH and RoHS requirement on a spec job?
Yes on both. The enclosure is listed RoHS compliant and REACH compliant, and it's USMCA compliant with country of origin Canada, which covers the documentation most government, healthcare and education procurement packages ask for.
8) Is this box OK in a washdown area like food processing or water treatment?
It suits those areas: Type 4 and IP66 handle hose-directed water and washdown, and Type 12/13 cover dust, dripping liquid and oil. The body is mild steel, not stainless, so for aggressive chemical washdown or continuous saltwater exposure a stainless enclosure is the better call.
9) What is the model number to order this Hammond 10x8x6 hinged NEMA 4 box?
Order Hammond Manufacturing part number HJ1086HLP. That's the 10 x 8 x 6 mild steel hinged-cover enclosure with Type 3R, 4, 12 and 13 ratings. The inner panel is a separate part number.
