Hammond Manufacturing HJ884HLP N4 J BOX HINGED 8X8X4 - 8 x 8 x 4

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 8x8x4 Mild Steel Enclosure

(No reviews yet) Write a Review

Model: HJ884HLP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$223.19
$105.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

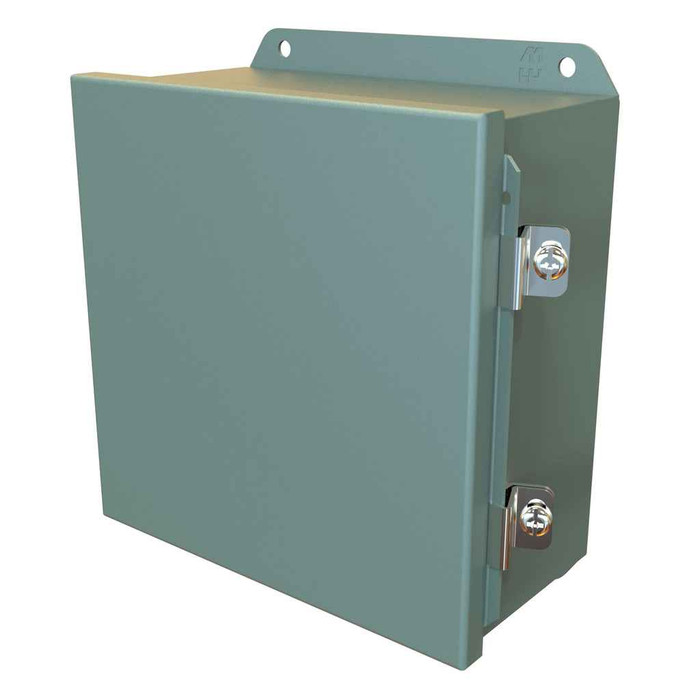

Hammond Manufacturing NEMA 4 Junction Box with Hinged Cover 8x8x4 Mild Steel Enclosure

Professional NEMA 4 Protection with Convenient Hinged Access

Hammond Manufacturing delivers reliable electrical protection with this NEMA 4 junction box featuring a convenient hinged cover design. This 8x8x4 mild steel enclosure provides robust protection with IP66 rating and multiple NEMA type ratings including Type 3R, Type 12, Type 13, and Type 4. The hinged cover design ensures easy access for installation and maintenance while maintaining weatherproof integrity.

Professional Features & Benefits

  • 8x8x4 Dimensions: Compact size provides versatile mounting options while offering adequate space for electrical connections and components.
  • Mild Steel Construction: Durable material ensures long-lasting protection against environmental conditions and mechanical stress.
  • IP66 Rating: Superior ingress protection against dust and powerful water jets for reliable outdoor and industrial applications.
  • Multiple NEMA Type Ratings: Type 3R, 12, 13, and 4 certifications provide comprehensive protection for diverse installation environments.
  • Hinged Cover Design: Convenient access for installation, inspection, and maintenance without removing the entire cover.
  • CSA and UL Listed: Professional certifications ensure compliance with North American electrical safety standards.
  • 7 lbs Weight: Manageable weight facilitates easy handling and installation while maintaining structural integrity.

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 4
  • Ip Rating: IP66
  • Panel: Available (sold separately)
  • Product Height: 8
  • Product Material: Mild Steel
  • Product Weight: 7 lbs
  • Product Width: 8
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-12, type-13, type-4
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Outdoor electrical installations requiring weatherproof protection
  • Industrial facilities with harsh environmental conditions
  • Commercial buildings needing reliable junction box solutions
  • Utility and infrastructure projects
  • Marine and coastal applications
  • Food processing and washdown environments
  • Chemical and corrosive atmosphere installations

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing provides professional-grade electrical enclosures with comprehensive certifications including CSA, UL, and CE standards compliance. This junction box features REACH and RoHS compliance along with USMCA trade agreement certification, ensuring reliable performance and regulatory compliance for North American installations.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Available (sold separately)
Product Height:
8
Product Material:
Mild Steel
Product Weight:
7 lbs
Product Width:
8
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-12, type-13, type-4
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
4

Hammond Manufacturing HJ884HLP – Frequently Asked Questions

1) Is the Hammond HJ884HLP junction box rated for outdoor wet locations?
Yes. The HJ884HLP carries Type 4 and Type 3R ratings along with IP66, so it handles rain, sleet, hose-directed water and dust-tight service outdoors. The Type 12 and Type 13 ratings also cover indoor industrial use with falling dirt, dripping liquids and oil. The hinged cover keeps that seal intact while you work inside the box.
2) What are the actual box dimensions on the Hammond HJ884HLP, and how much room do I have for splices?
It is an 8 inch by 8 inch enclosure with a 4 inch depth, so you have roughly a four inch cavity behind the cover for conductors, terminal blocks or a small relay. That depth is workable for splices and terminal strips but tight if you are stacking DIN rail components with tall bodies.
3) Does the Hammond 8x8x4 hinged junction box come with a back panel for mounting components?
No, the back panel is a separate purchase. The HJ884HLP ships as the enclosure and hinged cover only, so if you are mounting terminal blocks, a DIN rail or a small controller you need to order the matching panel as a second line item.
4) Is the Hammond HJ884HLP UL and CSA listed for an inspected commercial job?
It is listed under UL file E65324 and CSA certification LR21001, and also meets CE. That gives you the North American listing documentation an electrical inspector will want on a commercial or industrial install.
5) Is a mild steel enclosure the right choice for a coastal or washdown area, or should I use stainless?
The HJ884HLP body is mild steel with a painted finish. It holds the NEMA 4 and IP66 seal against water jets, which covers general washdown and outdoor exposure. For continuous salt spray, chemical attack or food-contact sanitation where the coating will eventually be compromised, a stainless 304 or 316 enclosure of the same 8x8x4 size is the better long-term call. On a standard outdoor or plant floor location, mild steel is the normal spec.
6) Why pick a hinged cover junction box over a screw-on lift-off cover?
On a box you open regularly, for troubleshooting, terminal checks or seasonal service, the hinged cover on the HJ884HLP stays attached when you open it. There is no lid to set down in the mud or drop off a ladder, and no risk of misplacing it and losing the gasket seal. If the box is closed once at commissioning and never opened again, a lift-off cover is fine and usually the cheaper spec. For maintenance access points, the hinge earns itself back.
7) What is the exact part number to order this Hammond 8x8x4 NEMA 4 hinged box?
The manufacturer part number is HJ884HLP from Hammond Manufacturing. That number covers the 8 x 8 x 4 mild steel enclosure with the hinged, latched cover. The back panel is a different part number and has to be added to the order if you need it.
8) How heavy is the Hammond 8x8x4 steel junction box, and how should it be mounted?
It weighs 7 lbs. That is light enough for a single installer to hold and fasten, but it is enough hanging load that you want fasteners into structure, unistrut or the box's mounting feet rather than into drywall anchors alone. Mount it with the hinge oriented so the cover swings clear of adjacent equipment and conduit.
9) Is the Hammond HJ884HLP RoHS and REACH compliant, and where is it made?
Yes on both, RoHS and REACH compliant, and it is also USMCA compliant. The box is manufactured in Canada, which matters if you are working a project with domestic or North American content requirements in the spec.
