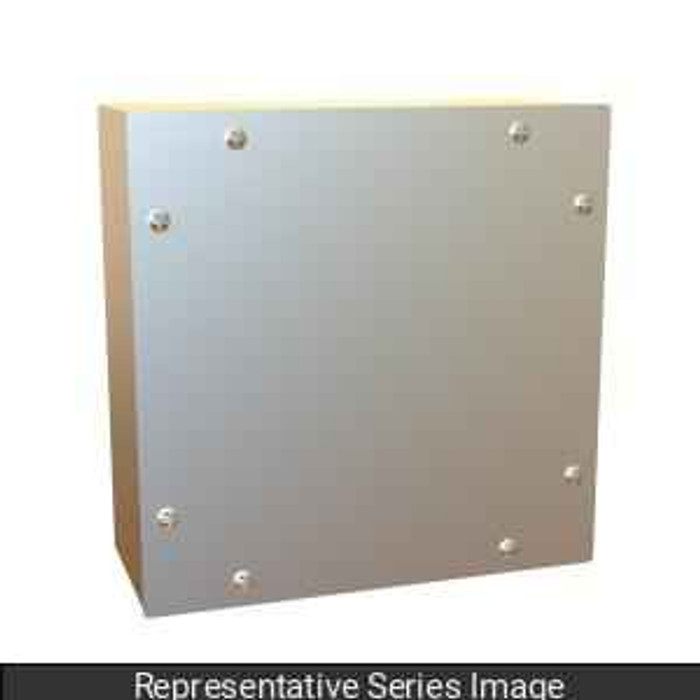

Hammond Manufacturing C4XSC664SS N4X SCREW COVER - 6X6X4 - SS - 6 x 6 x 4

The C4XSC664SS is a Type 4X screw cover enclosure, which is the rating used for wet, washdown, and corrosive locations. The stainless steel body is what earns the 4X part, so it suits food processing rooms, wash bays, chemical areas, and outdoor walls where a painted steel box would rust at the seams.

6 x 6 x 4 inches: 6 inch height, 6 inch width, 4 inch depth. The 4 inch depth is the number to check before you commit, since it has to clear your deepest mounted component plus the bend radius of conductors coming through the gland plate area.

Yes. The C4XSC664SS carries UL, cULus, and CE marks, under UL file E65324. That covers both US and Canadian listing, which matters if you are submitting the same panel design on both sides of the border.

A screw cover like the C4XSC664SS is for enclosures you rarely open: junctions, splices, terminal blocks, a single sensor amplifier. The cover comes fully off, so you get unobstructed access during install but you need both hands and a driver each time. If an operator or technician has to get inside regularly, or you are mounting a display or pushbuttons, choose a hinged cover version instead.

Yes on both. It is RoHS compliant and REACH compliant, and it is USMCA compliant with Canada as country of origin, which is the combination institutional and government buyers usually need for domestic preference and material disclosure paperwork.

Yes, field drilling is normal practice on the C4XSC664SS, but treat the cut edges. Stainless holds its corrosion resistance only where the surface is intact, so deburr and use a 4X rated hub or fitting with a gasket at every penetration, and keep holes out of the gasket seating area or you lose the Type 4X seal you paid for.

3 pounds. Light enough to land on strut or a single stud with standard anchors, and the stainless shell keeps the weight low compared with a cast enclosure of the same volume.
