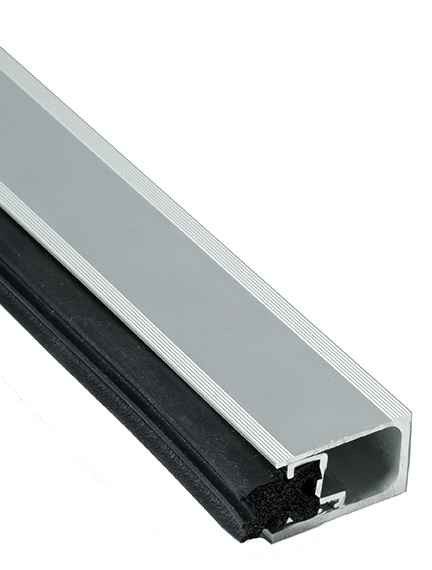

NGP 1038NA Adjustable Neoprene Perimeter Seal with Anodized Aluminum Frame - 96" Length

NGP 1038NA Adjustable Neoprene Perimeter Seal with Anodized Aluminum Frame - 96" Length

(No reviews yet) Write a Review

Model: NGP-1038NA-MI
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$289.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Adjustable Neoprene Perimeter Seal with Anodized Aluminum Frame - 96" Length

Professional Door Weatherization Solution

The NGP Adjustable Neoprene Perimeter Seal delivers superior door weatherization with a 96" anodized aluminum frame and synthetic rubber polymer blend construction. Featuring aluminum alloy 6063 T5 temper construction with chloroprene and EPDM rubber blend, this seal operates effectively in temperatures from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring reliable performance in demanding commercial applications.

Professional Features & Benefits

  • 96" Length Coverage: Full-length seal provides comprehensive perimeter protection for standard commercial door applications.
  • Temperature Range Performance: Operates reliably from -20 F to 200 F for year-round effectiveness in varying climate conditions.
  • Adjustable Design: Adjustment screws on 10" centers allow fine-tuning without re-positioning the mounting location for precise fit.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer blend combining chloroprene and EPDM for exceptional durability.
  • Superior Material Properties: Very good abrasion resistance, tensile strength and memory with flame and moisture resistance for long-term performance.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring compliance with industry standards.
  • Weather Resistance: Good resistance to ozone, sunlight and aging maintains seal integrity over extended service life.
  • Complete Hardware Package: Includes #6 x 3/4" or #6 x 1-1/2" stainless steel SMS fasteners for secure installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP perimeter seals deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer blend rated for -20 F to 200 F operation. BHMA certified to ANSI/BHMA A156.22 performance standards with superior abrasion resistance and weather durability. Engineered for demanding commercial applications where dependable weatherization performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP NGP-1038NA-MI – Frequently Asked Questions

1) What does the NGP 1038NA perimeter seal actually seal on a door, the head and jambs or the bottom?
The 1038NA is a perimeter seal, so it goes on the frame head and both jambs, where the door face closes against it. It does not seal the bottom of the door. For the sweep at the threshold you need a separate door bottom or shoe. The 96 inch aluminum frame length is sized for a jamb run; two pieces plus a head piece cover a standard opening.
2) Can I adjust the NGP 1038NA seal after it is screwed to the frame if the door does not close tight?
Yes, and that is the point of the adjustable design. Adjustment screws sit on 10 inch centers along the frame, so you can move the neoprene bulb in or out to take up a gap or ease a door that binds without pulling the seal off and re-drilling new mounting holes. On a 96 inch piece that gives you roughly nine adjustment points down the jamb, which is what you want on an older frame that is out of true.
3) Will the NGP 1038NA neoprene seal hold up on an exterior door in a cold climate or on a hot mechanical room?
Rated from -20 F to 200 F, so a northern exterior entrance and a hot boiler or mechanical room are both inside the range. The gasket is a chloroprene and EPDM synthetic rubber blend with good resistance to ozone, sunlight and aging, plus flame and moisture resistance. NGP certifies it to the ANSI/BHMA A156.22 performance tests for heat and cold.
4) Is the NGP 1038NA perimeter seal BHMA certified for a spec that calls for A156.22 gasketing?
It is BHMA certified to ANSI/BHMA A156.22, specifically the heat and cold performance tests. That is the gasketing and edge seal standard architects cite on door hardware schedules, so it answers the line item directly for a specifier or an institutional buyer standardizing across a facility.
5) Should I use an adjustable perimeter seal or a plain gasket with a vinyl insert?
Adjustable is what you want when the frame or door is not true. The 1038NA carries the neoprene bulb on an aluminum carrier with adjustment screws every 10 inches, so you can dial the seal in against a warped door or a frame with a wavy reveal after it is mounted. A fixed channel gasket like the Cal-Royal PG-601 aluminum channel perimeter gasketing with vinyl insert is simpler and cheaper to install, and it is the right call on a square, new opening where you only need a gasket to sit in the rabbet. On a retrofit where the door has been slammed for twenty years, the adjustment is the reason to spend the extra.
6) What is the difference between the NGP 1038NA perimeter seal and the Cal-Royal PG-601?
Both are aluminum channel perimeter gasketing that mounts to the frame stop, but the sealing element differs. The NGP 1038NA carries a synthetic rubber polymer blend of chloroprene and EPDM in an anodized aluminum frame of alloy 6063 T5 temper, rated from -20 F to 200 F and BHMA certified to ANSI/BHMA A156.22 heat and cold performance tests. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert. If the opening sees temperature swing, sunlight, or ozone exposure, the neoprene and EPDM blend on the 1038NA is the material specified for it; for an interior opening where the seal is doing sound and light control, the vinyl insert channel covers the same geometry.
7) Is a door shoe the same thing as a perimeter seal?
No, and they are not interchangeable on a job. A perimeter seal such as the NGP 1038NA mounts to the head and jambs of the frame, sealing the gap between the door face or edge and the stop over a 96 inch run. A door shoe mounts to the bottom of the door itself and seals against the threshold or sill. The Cal-Royal PG-601 is perimeter gasketing carried in the Door Shoes Series, so if you are ordering by series name be sure you are pulling the perimeter gasket and not a bottom shoe. A fully weatherized opening usually takes both: perimeter gasketing on three sides plus a shoe or sweep at the bottom.
8) Do I have to buy screws separately for the NGP 1038NA seal?
No, fasteners come with it. The 1038NA ships with stainless steel sheet metal screws, either #6 x 3/4 inch or #6 x 1-1/2 inch. Stainless matters on an exterior opening where a plated screw would streak the frame after a winter. You still need to pilot drill the frame if it is hollow metal.
9) What finishes does the NGP 1038NA adjustable perimeter seal come in?
Two: dark bronze and mill aluminum, both anodized on a 6063 T5 aluminum alloy frame. Mill aluminum is the clear silver finish that disappears against an aluminum storefront frame; dark bronze matches bronze anodized entrances and darker painted hollow metal. If you are matching existing openings across a building, pick the one already on the frames rather than the door hardware.
10) Will the NGP 1038NA perimeter seal help with smoke or just weather?
Treat it as weatherization. What NGP states for the 1038NA is the A156.22 heat and cold performance certification, the -20 F to 200 F range, and flame and moisture resistance in the chloroprene and EPDM blend. Those are air, water and temperature claims. If your opening needs a listed smoke seal or a fire door gasketing assembly, specify a product carrying that listing rather than reading it into this one.
11) Can I use a vinyl insert perimeter gasket instead of a neoprene one on an exterior opening?
Look at what the seal has to survive. The NGP 1038NA uses a chloroprene and EPDM synthetic rubber blend with good resistance to ozone, sunlight and aging and a -20 F to 200 F service range, and it is BHMA certified to ANSI/BHMA A156.22 for heat and cold. The Cal-Royal PG-601 is a vinyl insert in an aluminum channel. On an exterior door that takes direct sun and winter cold, the elastomer blend is the material written for that duty; the vinyl insert channel is the straightforward choice on protected interior openings, vestibules, and corridor doors where the gasket is stopping light, drafts, and sound rather than weather.
12) I need to adjust the seal pressure after the door settles - does the Cal-Royal PG-601 do that?
The NGP 1038NA is built for it: adjustment screws on 10 inch centers let you take up or back off seal pressure without pulling the gasket and re-drilling the stop, which is what you want when a door settles or a closer gets retuned. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert. If the maintenance plan on a multi-tenant or institutional building involves crews re-setting seal pressure in the field rather than replacing the gasket, the adjustable frame on the 1038NA is the one that supports that.
13) Is the NGP 1038NA seal suitable for a residential door or is it commercial only?
NGP lists the 1038NA as commercial. It is built for the traffic in office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and government facilities, with a 6063 T5 aluminum frame and a neoprene blend rated for very good abrasion resistance. It will function on a house door, but the anodized aluminum frame and the surface adjustment screws read as commercial hardware, not residential trim.
