NGP 106NA Adjustable Neoprene Perimeter Seal with Anodized Aluminum Construction

NGP 106NA Adjustable Neoprene Perimeter Seal with Anodized Aluminum Construction

(No reviews yet) Write a Review

Model: 106NA 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Adjustable Neoprene Perimeter Seal with Anodized Aluminum Construction

Professional Door Weatherization Solution

The NGP Adjustable Neoprene Perimeter Seal delivers superior door weatherization with aluminum alloy 6063, T5 temper construction and synthetic rubber polymer blend combining Chloroprene and EPDM. This 36" anodized aluminum seal operates effectively in temperature ranges from -20 F to 200 F and features adjustment screws on 10" centers for precise positioning without re-mounting. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance.

Professional Features & Benefits

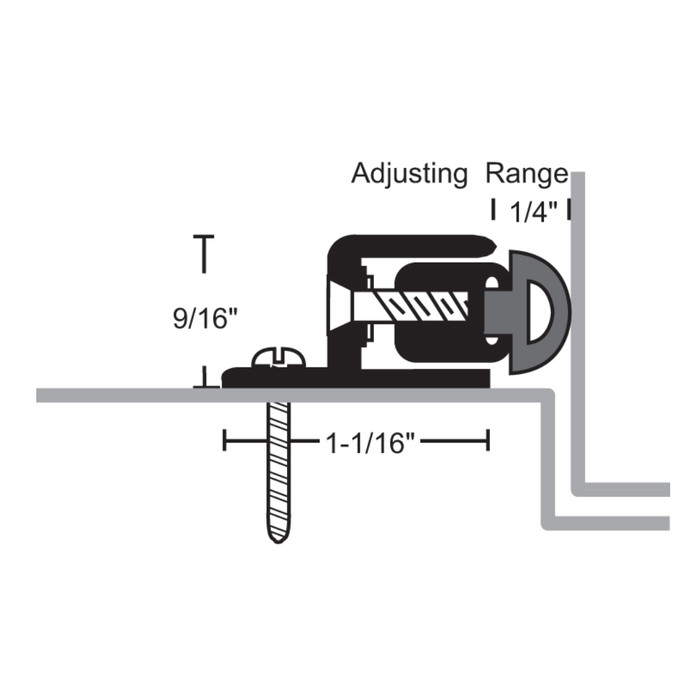

  • Adjustable Design: Adjustment screws on 10" centers allow precise positioning without re-positioning mounting location for optimal sealing performance.
  • Temperature Performance: Operates reliably in temperature range from -20 F to 200 F for year-round effectiveness in varying climate conditions.
  • Heavy-Duty Construction: Aluminum alloy 6063, T5 temper provides exceptional durability and corrosion resistance for long-term commercial applications.
  • Advanced Polymer Blend: Synthetic rubber combining Chloroprene and EPDM delivers very good abrasion resistance, tensile strength and memory for consistent sealing.
  • Weather Resistance: Flame resistant and moisture resistant construction with good resistance to ozone, sunlight and aging for outdoor applications.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring compliance with industry standards.
  • Complete Hardware: Includes #6 x 3/4" or #6 x 1-1/2" stainless steel SMS fasteners for secure installation.
  • Optional Fast Attach: FATT - Fast Attach Tape option available for alternative mounting applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP perimeter seals deliver professional-grade reliability with aluminum alloy 6063, T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The advanced synthetic rubber polymer blend provides very good abrasion resistance, tensile strength and memory for demanding commercial applications. Engineered for dependable weatherization performance where consistent sealing is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 106NA 36 – Frequently Asked Questions

1) What lengths does the NGP 106NA perimeter seal come in, and how do I cover a standard commercial frame?
The 106NA adjustable perimeter seal is stocked in 36 inch and 96 inch lengths. A single opening normally takes one 36 inch piece across the head and two 96 inch pieces down the jambs, cut to fit on site. The aluminum is 6063 alloy in T5 temper, so it cuts cleanly with a miter saw and a fine-tooth blade.
2) Can I adjust the seal pressure after the weatherstrip is screwed to the frame?
Yes, that is the point of the 106NA. Adjustment screws on 10 inch centers let you move the neoprene insert in or out to tighten or relieve the seal against the door face without pulling the fasteners and re-drilling the frame. Handy on doors that have settled or on a frame that isn't perfectly plumb.
3) Will this NGP seal hold up on an exterior door in a cold climate?
It is rated from -20 F to 200 F and the seal material is a Chloroprene and EPDM synthetic rubber blend with good resistance to ozone, sunlight and aging, plus moisture resistance. NGP certifies the 106NA to ANSI/BHMA A156.22 performance tests for heat and cold. That covers exterior entrances in both winter and summer extremes.
4) What is a comparable aluminum perimeter gasket to the NGP 106NA?
The Cal-Royal PG-601 is a comparable aluminum channel perimeter gasketing that uses a vinyl insert. The NGP 106NA differs in its sealing element: it uses a synthetic rubber polymer blend of Chloroprene and EPDM in an anodized aluminum housing of alloy 6063, T5 temper, rated for -20 F to 200 F service and BHMA certified to ANSI/BHMA A156.22 heat and cold performance tests. Both mount to the frame perimeter; the 106NA adds adjustment screws on 10 inch centers so the seal position can be fine tuned after the housing is fastened.
5) Do I get fasteners with the NGP 106NA, or do I need to buy screws separately?
Fasteners are included. The 106NA ships with stainless steel sheet metal screws, either #6 x 3/4 inch or #6 x 1-1/2 inch. If you are mounting to a surface you don't want to drill, NGP offers the FATT fast attach tape option instead of screws.
6) Is an adjustable perimeter seal worth it over a fixed vinyl-insert gasket?
An adjustable seal like the NGP 106NA is the right call when the door and frame aren't dead square, or on openings that get heavy traffic and drift out of adjustment, because you re-set the seal with screws on 10 inch centers rather than re-mounting the strip. A fixed channel gasket such as the Cal-Royal PG-601 aluminum channel perimeter gasketing with vinyl insert is simpler to install and fine where the gap is consistent and the door hangs true.
7) Should I use a vinyl insert perimeter gasket or a neoprene one on an exterior door?
Vinyl insert channel gasketing, such as the Cal-Royal PG-601, and the neoprene style NGP 106NA are both aluminum channel perimeter seals for the frame. The 106NA specifies a Chloroprene and EPDM synthetic rubber insert with good resistance to ozone, sunlight and aging, flame and moisture resistance, and a -20 F to 200 F temperature range, which is the data set to check against an exposed exterior opening. It is also BHMA certified to ANSI/BHMA A156.22 heat and cold tests, useful where a spec calls out a certified perimeter seal.
8) Will a door shoe work in place of the NGP 106NA perimeter seal?
No. A door shoe, such as the Cal-Royal door shoe series products, attaches to the bottom of the door leaf and seals against the threshold. The NGP 106NA is a perimeter seal that mounts on the frame head and jambs, where the door face contacts the stop, and it is adjusted with screws on 10 inch centers. Openings that need both a bottom seal and a perimeter seal take two separate items.
9) Is the NGP 106NA suitable for a hospital or school corridor door, or is it an exterior-only product?
It is classed as commercial gasketing and NGP lists it for office buildings, schools, healthcare, retail, industrial and warehouse space, multi-tenant residential and government buildings. Interior applications are fine, smoke and light seal or sound-gap control on corridor doors included. The construction is flame resistant and moisture resistant.
10) What finish does the NGP 106NA housing come in and will it corrode on an exterior opening?
The housing is anodized aluminum over 6063-T5 extrusion, which is what gives it corrosion resistance on weather-exposed entrances. The supplied fasteners are stainless steel, so you are not mixing a plated screw into an exterior assembly.
