NGP 113NDKB Neoprene Door Shoe, 36", Dark Bronze Finish

NGP 113NDKB Neoprene Door Shoe 36" Dark Bronze Finish with EPDM Rubber Seal

(No reviews yet) Write a Review

Model: 113NDKB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Shoe 36" Dark Bronze Finish with EPDM Rubber Seal

Professional Door Bottom Sealing Solution

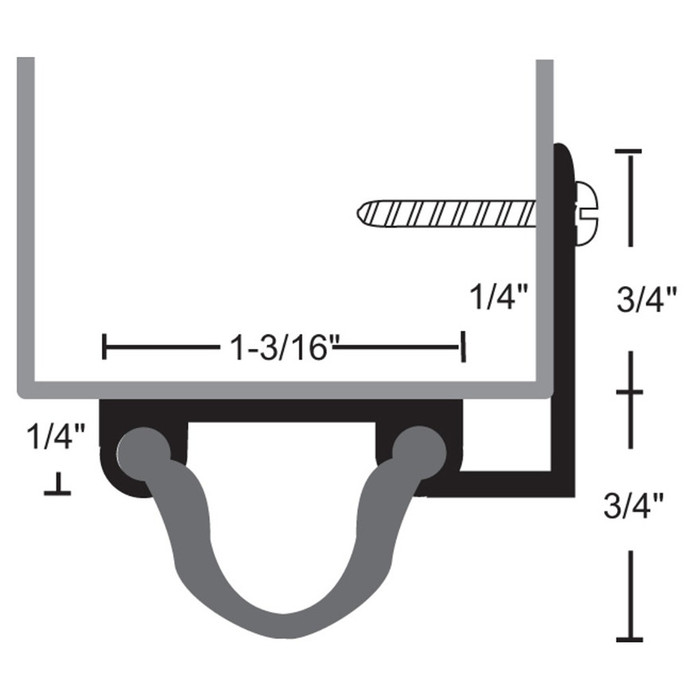

The NGP Neoprene Door Shoe provides superior door bottom sealing for commercial applications with its 36" length and durable dark bronze finish. Constructed from aluminum alloy 6063 T5 temper with synthetic EPDM rubber in polypropylene thermoplastic matrix, this door shoe delivers exceptional performance across temperature ranges from -81 F to 275 F. BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring reliable weatherproofing and energy efficiency.

Professional Features & Benefits

  • 36" Length: Standard door width coverage with dark bronze finish for professional appearance and corrosion resistance.
  • Temperature Performance: Operates reliably from -81 F to 275 F for extreme weather conditions and climate control applications.
  • Advanced Seal Material: Synthetic EPDM rubber in polypropylene thermoplastic matrix provides superior abrasion resistance, tensile strength, and memory retention.
  • Premium Construction: Aluminum alloy 6063 T5 temper construction ensures structural integrity and long-term durability in commercial environments.
  • Weather Resistance: Flame-resistant and moisture-resistant design with excellent resistance to ozone, sunlight, and aging for extended service life.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold compliance in commercial applications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation with included #6 x 3/4" stainless steel SMS fasteners.
  • Professional Finish: Dark bronze anodized finish complements commercial door hardware while providing corrosion protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Neoprene Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade weathersealing performance with aluminum alloy 6063 T5 temper construction and advanced EPDM rubber seal technology rated for extreme temperatures from -81 F to 275 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold applications, ensuring reliable long-term performance. Engineered for demanding commercial applications where effective door bottom sealing and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 113NDKB – Frequently Asked Questions

1) Will the NGP 113NDKB door shoe fit a 36 inch wide door?
The 113NDKB comes in a 36 inch length, which covers a standard 36 inch commercial door leaf. On narrower openings it can be cut down to the door width with a hacksaw or chop saw. If your door is wider than 36 inches, this piece will come up short and you need a longer length.
2) Do I get screws with the NGP 113NDKB door shoe, or do I supply my own?
Fasteners are included: #6 x 3/4 inch stainless steel sheet metal screws. The mounting holes are slotted, so you can set the shoe, snug the screws, and slide it up or down to dial in contact with the threshold before you tighten. On a hollow metal door you may want to pre-drill and pilot for the SMS.
3) Is the NGP 113NDKB certified to any standard for a spec job?
It is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold. That is the gasketing and edge seal standard, so it is the citation a facilities or government spec writer is usually looking for on door bottom sealing. It is designated for commercial use rather than residential.
4) Does the NGP 113NDKB have a rain drip for an exterior door?
No drip cap is part of this shoe, it is a plain door shoe with the EPDM insert. If you need a rain drip on the same piece to shed water off an out-swinging exterior door, look at the Pemko 211V, an L-shaped door shoe with rain drip and Eco-V insert, or the Pemko 215, a fire-rated shoe with rain drip. Either one puts the drip and the shoe in a single extrusion instead of adding a separate drip cap above it.
5) Can I use the NGP 113NDKB door shoe on a fire-rated door assembly?
The NGP 113NDKB is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, which is a weatherseal performance standard rather than a fire-door listing. If the opening is a rated assembly, specify a shoe carried as fire-rated: the Pemko 210 is a fire-rated aluminum door bottom shoe with an Eco-V insert, and the Pemko 215 is a fire-rated shoe certified to UL10C that also includes a rain drip. Always match the shoe to what the door manufacturer's listing permits.
6) What is the closest equivalent to the NGP 113NDKB door shoe from another manufacturer?
The NGP 113NDKB is a 36 inch aluminum door shoe with an EPDM rubber seal in a dark bronze finish. The nearest like-for-like is the Pemko 210, also a 36 inch aluminum door bottom shoe, which carries an Eco-V vinyl insert and a fire rating. The Cal-Royal DS-403 is likewise an aluminum door shoe with a vinyl insert. The practical difference is the sealing material: the 113NDKB uses synthetic EPDM rubber in a polypropylene thermoplastic matrix rated from -81 F to 275 F, while both of those peers seal with a vinyl insert.
7) I need a door shoe on an exterior opening that takes driving rain. Is the NGP 113NDKB the right choice or is there something better suited?
The NGP 113NDKB seals the door bottom with an EPDM rubber insert and a dark bronze finish, and it is rated for heat and cold under ANSI/BHMA A156.22, but it has no rain drip. For an exterior door where water runs down the face, look at the Pemko 211V, an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, or the Pemko 215, which pairs a rain drip with a UL10C certification. The drip leg throws water clear of the sill instead of letting it track down onto the threshold.
8) What is the seal on the NGP 113NDKB made of, and will it hold up outside?
The insert is synthetic EPDM rubber in a polypropylene thermoplastic matrix, which gives it abrasion resistance, tensile strength and memory retention, plus resistance to ozone, sunlight and aging. It is rated from -81 F to 275 F, so it stays flexible on a cold exterior door and does not go soft on a west-facing metal door in summer. The extrusion itself is 6063-T5 aluminum with a dark bronze finish for corrosion protection.
9) Should I use a door shoe like the NGP 113NDKB or a surface door sweep?
A door shoe wraps the bottom edge of the door and carries the seal underneath, so it protects the bottom rail as well as sealing, and it rides on the threshold. A surface sweep just screws to the face of the door above the bottom edge. Shoes are the usual pick on exterior commercial doors where the bottom edge takes weather and abuse; sweeps are easier to add to an existing door when you do not want to pull the leaf. The 113NDKB is the shoe type, in dark bronze with an EPDM insert.
10) What are the alternatives to the NGP 113NDKB if I want a vinyl insert instead of EPDM?
The 113NDKB uses an EPDM rubber insert. For vinyl, the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and Pemko's 209 uses an Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile. The Pemko 211V carries a GREENGUARD Gold certified Eco-V insert if you are chasing indoor air quality credits on the job.
11) What is the difference between the NGP 113NDKB and the Pemko 209 door shoe?
Both are door bottom shoes that mount to the face of the door and carry a replaceable seal. The NGP 113NDKB is supplied at 36 inches in a dark bronze finish with a synthetic EPDM rubber seal and aluminum alloy 6063 T5 body, with slotted screw holes and #6 x 3/4 inch stainless steel SMS fasteners included. The Pemko 209 is specified by its profile, 1/2 inch by 1-3/8 inch, and carries an Eco-V vinyl insert. Where a drawing calls out a shoe by profile dimension, check the 209 against that callout; where the spec is written around an EPDM seal and a bronze finish, the 113NDKB is the match.
12) I am standardizing door bottom seals across a building. Which door shoes should I be comparing against the NGP 113NDKB?
For a commercial program the comparable shoes are the Cal-Royal DS-403 aluminum shoe with vinyl insert, the Pemko 209 with an Eco-V vinyl insert on a 1/2 inch by 1-3/8 inch profile, the Pemko 210 in 36 inch aluminum, and the drip-equipped Pemko 211V and 215. Sort them by opening: interior and non-rated exterior doors where thermal performance drives the spec suit the 113NDKB with its EPDM seal rated -81 F to 275 F and A156.22 heat and cold certification; rated openings go to the 210 or 215; weather-exposed faces go to the 211V or 215. Finish is the other sorting line, since the 113NDKB is dark bronze and will match bronze-finished hardware on the rest of the opening.
13) My spec requires low-emitting materials for an indoor air quality credit. Does the NGP 113NDKB meet that?
The NGP 113NDKB is documented for its material and thermal performance: aluminum alloy 6063 T5 with a synthetic EPDM rubber seal, BHMA certified to ANSI/BHMA A156.22 for heat and cold. If the submittal is being reviewed against an indoor air quality credit, the Pemko 211V is the shoe in this class that carries a GREENGUARD Gold certified Eco-V insert, and it also adds a rain drip leg. Submit the 211V where the certification itself is the requirement.
14) Is a vinyl-insert door shoe the same thing as the NGP 113NDKB?
They fill the same role but the seal chemistry is different. The NGP 113NDKB uses a synthetic EPDM rubber seal in a polypropylene thermoplastic matrix, described for abrasion resistance, tensile strength, memory retention, and resistance to ozone, sunlight, and aging, with a rated range of -81 F to 275 F. The Cal-Royal DS-403 and the Pemko 209 both use a vinyl insert instead. Inserts are not interchangeable between manufacturers, so if you are replacing only the seal on an existing shoe, order the insert made for that shoe rather than assuming the 113NDKB seal will drop in.
15) Will the dark bronze finish on the NGP door shoe match our bronze door hardware?
The 113NDKB is finished in dark bronze anodized aluminum, which is the standard match for dark bronze storefront and commercial door hardware. For a property manager standardizing a building, ordering the same 113NDKB across the openings keeps the bottom rail appearance consistent from door to door, and the anodizing adds corrosion protection on exterior leaves.
