NGP 134SA Perimeter Seal with ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$614.97

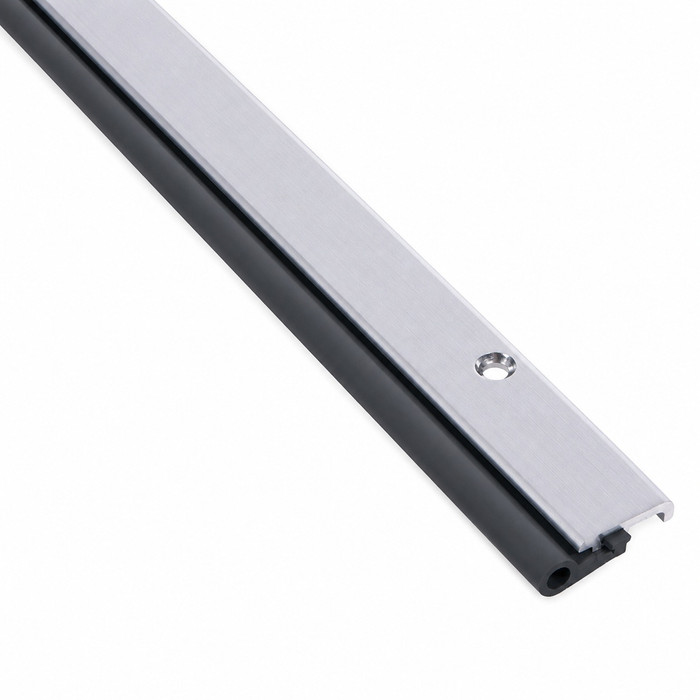

NGP 134SA Perimeter Seal, Silicone, 36" by 84", Satin Aluminum Clear Anodized Finish

NGP 134SA Perimeter Seal with Silicone Gasket 36" x 84" Satin Aluminum Clear Anodized

(No reviews yet) Write a Review

Model: 134SA 36X84

In Stock (leaves warehouse same day if ordered before 3pm ET)

$614.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 134SA Perimeter Seal with Silicone Gasket 36" x 84" Satin Aluminum Clear Anodized

Professional Fire-Rated Door Sealing Solution

The NGP 134SA Perimeter Seal delivers professional-grade door sealing performance with a 36" by 84" silicone gasket system in satin aluminum clear anodized finish. Constructed from aluminum alloy 6063 T5 temper with synthetic rubber polymer siloxane closed cell sponge, this perimeter seal operates reliably across temperature ranges from -100 F to 500 F while maintaining excellent flexibility and memory. BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, making it ideal for fire suppression system applications.

Professional Features & Benefits

  • Precise Door Dimensions: 36" by 84" sizing provides comprehensive perimeter sealing for standard commercial door applications.
  • Extreme Temperature Performance: Operates from -100 F to 500 F while remaining flexible at temperature extremes for reliable year-round performance.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer siloxane closed cell sponge for exceptional durability and sealing performance.
  • Fire Suppression System Compatibility: Recommended for areas using FM200 or Halon fire suppression systems with flame-resistant and moisture-resistant properties.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring code compliance and reliable performance.
  • Advanced Silicone Technology: Patent pending microcellular silicone provides excellent flexibility, memory, and resistance to ozone, UV, and aging.
  • Adjustable Installation: Includes #6 x 3/4" stainless steel sheet metal screws with slotted screw holes for precise field adjustment.
  • Professional Finish: Satin aluminum clear anodized finish provides corrosion resistance and professional appearance for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Series: Neoprene Sponge Seal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings with Fire Suppression Systems
  • Healthcare Facilities Requiring Environmental Control
  • Educational Institution Fire Safety Compliance
  • Industrial Facilities with FM200 or Halon Systems
  • Government Buildings with Security and Fire Requirements
  • Multi-Tenant Properties Requiring Sound and Environmental Sealing
  • Data Centers and Clean Room Applications

Why Choose NGP Quality?

NGP perimeter sealing products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and patent pending microcellular silicone technology rated for extreme temperature performance from -100 F to 500 F. BHMA certified to ANSI/BHMA A156.22 performance standards with excellent resistance to ozone, UV, and aging. Engineered for demanding commercial applications where dependable environmental sealing and fire suppression system compatibility are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Sponge Seal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 134SA 36X84 – Frequently Asked Questions

1) Will the NGP 134SA perimeter seal cover a full 3'0" x 7'0" commercial door?
Yes. The 134SA is supplied as a 36 inch by 84 inch set, which is the head length plus two jamb lengths for a standard 3-0 by 7-0 single opening: one 36 inch piece across the head and two 84 inch pieces down the hinge and strike jambs. For a pair of doors or an opening with a taller frame, you need additional stock cut to length.
2) Is this NGP seal the right gasket for a room protected by FM200 or Halon?
That is the application NGP calls out for the 134SA. The silicone sponge insert is flame resistant and moisture resistant and is recommended for areas using FM200 or Halon fire suppression systems, which is why it shows up on data center, clean room, and equipment room openings where the agent has to stay in the space.
3) Silicone or neoprene gasket for a door next to a boiler room or freezer?
Go silicone. The 134SA uses a synthetic rubber polymer siloxane closed cell sponge rated from -100 F to 500 F and it stays flexible at both ends of that range, so it holds its seal on hot mechanical room doors and on cold storage or exterior openings in a hard winter. Neoprene sponge gasketing is the general purpose choice and costs less to specify, but it does not carry that temperature span.
4) Does the NGP 134SA meet a spec calling for BHMA certified gasketing?
The 134SA is BHMA certified to the ANSI/BHMA A156.22 performance tests for heat and cold. If the drawing cites A156.22 for perimeter gasketing, this seal answers that line. Nothing beyond the heat and cold performance tests is claimed for it, so if the submittal also demands a smoke or sound rating, verify that separately.
5) What is the difference between the NGP 134SA perimeter seal and the Cal-Royal PG-601 gasketing?
Both are aluminum channel perimeter gasketing for commercial door frames, but the sealing element is different. The NGP 134SA uses a synthetic rubber polymer siloxane closed cell sponge silicone gasket rated from -100 F to 500 F and BHMA certified to ANSI/BHMA A156.22 heat and cold performance tests, which is why it is recommended where FM200 or Halon fire suppression systems are in use. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert. Vinyl is the common choice for ordinary weather and light smoke sealing on an interior or exterior opening; silicone is what you specify when the opening sees temperature extremes or fire suppression discharge.
6) Is the Cal-Royal PG-601 an acceptable substitute for the NGP 134SA on a spec that calls for silicone gasketing?
No. If the drawing calls out silicone, the PG-601 will not satisfy it - it is supplied with a vinyl insert. The NGP 134SA is the one carrying the microcellular silicone gasket with the -100 F to 500 F rating and BHMA certification to ANSI/BHMA A156.22 heat and cold performance tests. The two are interchangeable in the sense that both are surface-applied aluminum channel perimeter gasketing for the head and jambs, so the frame prep is the same, but the gasket material is the spec item and they do not match on it.
7) What fasteners come with the NGP 134SA, and can I adjust the seal after it is mounted?
Number 6 by 3/4 inch stainless steel sheet metal screws ship with the seal, and the aluminum retainer has slotted screw holes so you can shift the gasket in or out against the door face during install to tune the compression. No separate fastener order is needed for a standard hollow metal or wood frame.
8) Does this NGP perimeter seal handle the bottom of the door too?
No. The 134SA is head and jamb gasketing only, a 36 inch head piece and two 84 inch jamb pieces that seal against the door face at the frame stop. The gap under the door still needs its own part, either a door bottom or sweep on the door or a threshold and seal at the floor. Order that separately.
9) Will the satin aluminum finish on this NGP seal hold up on an exterior or humid opening?
The retainer is aluminum alloy 6063 T5 temper in a satin aluminum clear anodized finish, which is a corrosion resistant anodic coating, and the silicone insert resists ozone, UV, and aging. That combination is what lets it sit on exterior and high humidity openings without the gasket chalking or the retainer pitting.
10) Can I use the NGP 134SA to standardize gasketing across a whole building?
It works well as a fleet standard where openings are 3-0 by 7-0, since each set covers one door complete and the satin aluminum clear anodized finish matches from door to door. The same seal covers ordinary office openings and the mechanical or suppression protected rooms, so you carry one item instead of a silicone version and a separate general purpose version. Openings that are wider, taller, or a pair of doors need a different length.
