NGP 160SA Perimeter Seal with ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$26.23

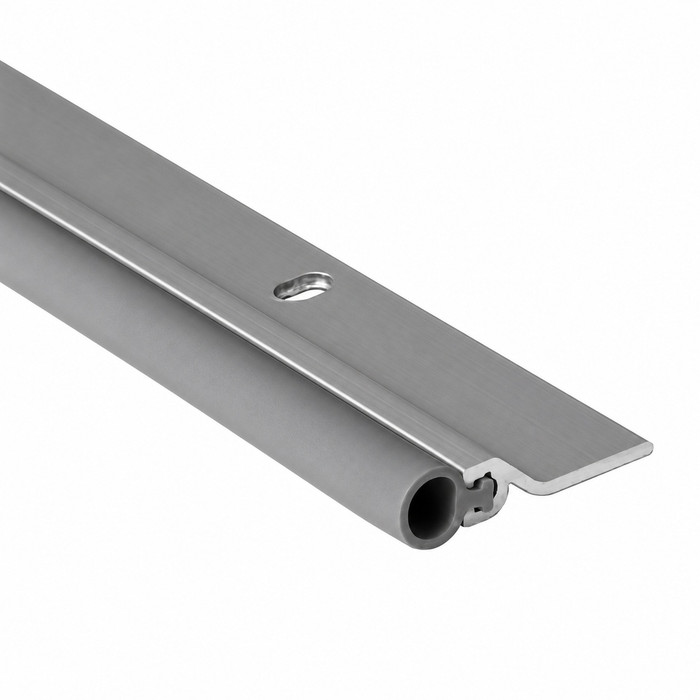

NGP 160SA Perimeter Seal, Silicone, Satin Aluminum Clear Anodized Finish

NGP 160SA Perimeter Seal with Silicone Gasket - Satin Aluminum Clear Anodized Finish

(No reviews yet) Write a Review

Model: 160SA 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Perimeter Seal with Silicone Gasket - Satin Aluminum Clear Anodized Finish

Professional Door Sealing Solution for Commercial Applications

The NGP Perimeter Seal delivers superior door sealing performance with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer siloxane gasket material. Engineered to operate in extreme temperature ranges from -100 F to 500 F while maintaining excellent flexibility and memory. BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration, making it ideal for demanding commercial environments including areas using FM200 or Halon fire suppression systems.

Professional Features & Benefits

  • Extreme Temperature Performance: Operates reliably from -100 F to 500 F while remaining flexible at temperature extremes for year-round dependability.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper frame with synthetic rubber polymer siloxane gasket provides exceptional durability and sealing performance.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration ensuring code compliance.
  • Fire Suppression System Compatible: Recommended for areas using FM200 or Halon fire suppression systems for specialized safety applications.
  • Weather and Environmental Resistance: Excellent resistance to ozone, UV and aging with flame-resistant and moisture-resistant properties for long-term performance.
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment during installation with #6 x 3/4" stainless steel sheet metal screws furnished.
  • Professional Finish: Satin aluminum clear anodized finish provides corrosion resistance and professional appearance for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Healthcare Facilities
  • Educational Institutions
  • Industrial and Manufacturing Facilities
  • Fire Suppression System Areas
  • High-Performance Building Envelopes
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP perimeter seals deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer materials engineered for extreme temperature operation. BHMA certified to ANSI/BHMA A156.22 performance standards with excellent resistance to ozone, UV and aging for reliable long-term service. Designed for demanding commercial applications where consistent environmental control and fire safety compliance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 160SA 36 – Frequently Asked Questions

1) Will the NGP 160SA perimeter seal work on a door where FM200 or Halon fire suppression is installed?
That's exactly the application NGP calls out for the 160SA. The silicone gasket is recommended for areas using FM200 or Halon suppression systems, where the room has to hold agent concentration long enough to work. The seal is BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration, so the perimeter is doing real containment work rather than just cutting drafts.
2) What lengths does the NGP 160SA perimeter seal come in, and how do I figure out how many pieces I need per door?
Six lengths are stocked: 36, 48, 60, 72, 84 and 96 inches. A perimeter seal runs head and both jambs, so a standard single opening takes one head piece cut to the door width and two jamb pieces cut to the door height. On a typical 3070 door that's a 36 inch piece for the head and two 84 inch pieces for the jambs. Pairs of doors double the jamb count and need the head length to cover both leaves. Order the next length up and cut down; the extrusion is aluminum and cuts with a miter saw.
3) Is the 160SA silicone gasket going to survive a boiler room or an unheated loading dock?
The gasket is a synthetic rubber polymer siloxane rated from -100 F to 500 F and stays flexible at both ends of that range, so neither a hot mechanical room nor a freezing exterior opening is a problem for it. NGP also cites resistance to ozone, UV and aging, plus flame resistant and moisture resistant properties, which is what matters on an exterior door that sees sun and rain year round. Vinyl inserts harden and take a set in cold; silicone is what you specify when the opening swings through temperature extremes.
4) Does a perimeter seal like the NGP 160SA handle the gap under the door too?
No. A perimeter seal covers the head and the two jambs only. The gap at the sill is a separate part, either a door bottom or sweep on the door, an automatic door bottom for a smoke or acoustic opening, or a threshold and door shoe on an exterior opening. Plan on ordering that piece alongside the 160SA, otherwise the opening is sealed on three sides and open at the floor, which defeats the air and smoke infiltration performance the seal is certified for.
5) What is the difference between the NGP 160SA perimeter seal and the Cal-Royal PG-601 perimeter gasketing?
Both are aluminum channel perimeter seals that mount to the frame stop and carry a flexible insert against the door face. The difference is the insert material. The NGP 160SA uses a synthetic rubber polymer siloxane (silicone) gasket in an aluminum alloy 6063 T5 temper channel, rated for service from -100 F to 500 F and BHMA certified to ANSI/BHMA A156.22 for heat, cold, air infiltration and smoke infiltration. The Cal-Royal PG-601 is aluminum channel perimeter gasketing with a vinyl insert. Where the opening calls for smoke and temperature performance -- a rated corridor, a stair enclosure, or a room protected by FM200 or Halon suppression -- the silicone insert of the 160SA is the one specified for it. For a general weather or light seal at an exterior or interior opening with no temperature or smoke requirement on the drawing, the vinyl-insert PG-601 covers that duty.
6) Can I use vinyl perimeter gasketing instead of silicone on a smoke rated door?
Not interchangeably. The NGP 160SA carries a silicone (synthetic rubber polymer siloxane) gasket and is BHMA certified to the ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration, which is the certification an inspector looks for on a smoke rated opening. The Cal-Royal PG-601 is aluminum channel perimeter gasketing with a vinyl insert -- a different insert material, suited to general perimeter sealing. If the submittal or the door schedule calls out A156.22 smoke performance, specify the 160SA and match the length to the opening; it runs in 36, 48, 60, 72, 84 and 96 inch lengths for head and jamb runs.
7) Do I need to buy screws separately to install the NGP 160SA perimeter seal?
No extra fasteners needed. Each piece is furnished with #6 x 3/4 inch stainless steel sheet metal screws. The mounting holes are slotted, so you can shift the seal in or out against the door face after the screws are started and then snug them down, which is how you dial in contact without crushing the gasket. Stainless fasteners matter on exterior openings where plated steel screws would rust-stain an anodized frame.
8) What is the difference between the NGP 160SA and the Cal-Royal PG-601 perimeter gasketing?
Both are aluminum channel perimeter gasketing that screws to the frame stop. The difference is the insert. The Cal-Royal PG-601 carries a vinyl insert. The 160SA carries a silicone gasket rated -100 F to 500 F and is BHMA certified to ANSI/BHMA A156.22 for heat, cold, air and smoke infiltration, which is the reason to pay for silicone. If the spec on the drawing calls out smoke gasketing or a suppression-system room, the silicone is the one that answers it; if it just says weatherstrip the door, the vinyl channel does the job.
9) Can I use the NGP 160SA on a hollow metal frame in a hospital or school, and is it rated for that kind of traffic?
It's a commercial-duty product, built from 6063 T5 temper aluminum extrusion rather than a plastic or foam strip, and NGP lists healthcare facilities, educational institutions, office buildings and government work among its applications. It surface applies to the frame stop with the furnished #6 stainless screws, which suits hollow metal frames, and the slotted holes let you reset gasket contact later as the door settles instead of pulling the piece and redrilling.
10) I need perimeter seal for a walk-in freezer door and an adjacent boiler room -- does one product cover both?
The NGP 160SA does. Its siloxane gasket is rated for continuous service from -100 F to 500 F and stays flexible with memory at both ends of that range, so the same part number covers a freezer opening and a high heat mechanical room without switching products, which keeps one line item on the requisition and one seal on the shelf for a facility. The Cal-Royal PG-601 uses a vinyl insert in an aluminum channel and is the general perimeter gasketing choice for ordinary conditioned openings. For a facility standardizing across mixed temperature spaces, the 160SA is the one that spans them; its aluminum alloy 6063 T5 channel with satin aluminum clear anodized finish also resists ozone, UV and aging for exposed exterior runs.
11) Will the satin aluminum finish on the 160SA match the anodized aluminum frames already in my building?
The 160SA is finished satin aluminum clear anodized, which is the standard clear anodized finish used on commercial aluminum storefront and hollow metal frame trim, so it reads as a match against existing clear anodized frames and door edges. The anodizing also gives corrosion resistance on exterior openings. Note the finish is fixed on this model: length is the only choice, from 36 up to 96 inches.
