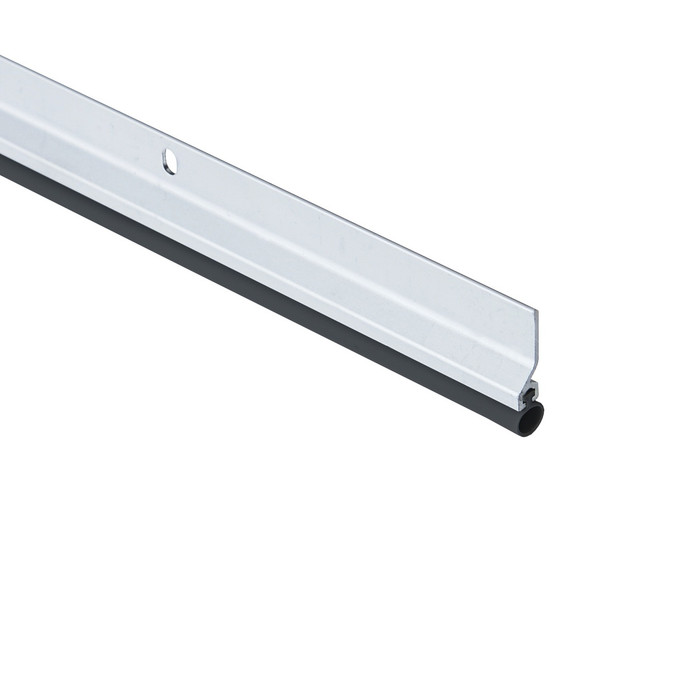

NGP 160V-SET Vinyl Perimeter Seal, Mill Aluminum

NGP 160V Vinyl Perimeter Seal with Mill Aluminum Frame - Complete Set

(No reviews yet) Write a Review

Model: 160V 36X84

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 160V Vinyl Perimeter Seal with Mill Aluminum Frame - Complete Set

Professional Door Weatherization Solution

The NGP 160V Vinyl Perimeter Seal delivers reliable door weatherization with aluminum alloy 6063 T5 temper construction and thermoplastic polyvinyl chloride sealing. Operating effectively in temperatures from 0 F to 140 F, this complete set includes #6 x 3/4" stainless steel sheet metal screws and features slotted screw holes for precise adjustment. The gray vinyl insert provides excellent moisture resistance and flame-resistant properties for demanding commercial applications.

Professional Features & Benefits

  • Temperature Performance: Reliable operation from 0 F to 140 F for year-round weatherization effectiveness in various climates.
  • Durable Aluminum Construction: Aluminum alloy 6063 with T5 temper provides exceptional strength and corrosion resistance for long-term performance.
  • Advanced Vinyl Formulation: Thermoplastic polyvinyl chloride with environmentally friendly bio-based plasticizer offers superior flexibility and environmental responsibility.
  • Moisture and Flame Resistance: Engineered vinyl compound resists moisture infiltration and meets flame-resistant requirements for commercial building applications.
  • Adjustable Installation: Slotted screw holes allow precise positioning and alignment during installation for optimal sealing performance.
  • Complete Hardware Set: Includes #6 x 3/4" stainless steel sheet metal screws for immediate installation without additional hardware requirements.
  • Economical Solution: Cost-effective weatherization option that delivers professional-grade performance for commercial door applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Series: Vinyl Perimeter Seal Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Building Entrances
  • Educational Facility Exterior Doors
  • Healthcare Institution Climate Control
  • Retail Store Energy Efficiency
  • Industrial Facility Environmental Separation
  • Multi-Tenant Building Weatherization
  • Government Building Energy Conservation

Why Choose NGP Quality?

NGP weatherstripping solutions combine aluminum alloy 6063 T5 temper construction with advanced vinyl formulation for reliable commercial-grade performance. The environmentally friendly bio-based plasticizer formulation and temperature range from 0 F to 140 F ensure dependable operation across diverse climate conditions. Engineered for demanding commercial applications where consistent weatherization and energy efficiency are essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Vinyl Perimeter Seal Series
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 160V 36X84 – Frequently Asked Questions

1) What is the difference between a perimeter seal like the NGP 160V and a door shoe or sweep?
They cover different edges of the same opening. The 160V is perimeter gasketing: an aluminum retainer with a vinyl insert that mounts on the head and both jambs of the frame and seals against the face or stop of the door. A door shoe or sweep mounts on the bottom rail of the door and seals to the threshold. Most exterior commercial openings need both. Ordering the 160V alone leaves the bottom of the door open.
2) I'm standardizing weatherstripping across a building with mixed door widths. Does the NGP 160V work for that?
Only if your openings are 3-0 or 3-6 by 7-0. The 160V set is supplied in two sizes, 36 x 84 and 42 x 84 inches, so it standardizes cleanly across a building of stock-size single doors, same mill aluminum retainer and gray vinyl on every frame. Openings at 8-foot height, odd widths, or pairs will not be covered by either set, and those want continuous-length gasketing bought by the foot and cut on site.
3) What is the closest equivalent to the NGP 160V vinyl perimeter seal from another manufacturer?
The Cal-Royal PG-601 is built the same way: an aluminum channel perimeter gasketing with a vinyl insert, the same two-part construction as the NGP 160V, which pairs an aluminum alloy 6063 T5 frame with a thermoplastic polyvinyl chloride seal. Both are surface-applied perimeter seals for the head and jambs of a commercial door opening. The NGP 160V comes as a complete set with #6 x 3/4 inch stainless steel sheet metal screws and slotted screw holes for adjustment, and is sized for 36 inch x 84 inch and 42 inch x 84 inch openings.
4) Does the NGP 160V weatherstrip set come with fasteners, or do I need to buy screws separately?
Screws are in the box. The 160V set ships with #6 x 3/4 inch stainless steel sheet metal screws, so nothing else is needed to hang it on a wood or hollow metal jamb prepped for sheet metal screws. Stainless matters on an exterior opening, where plated steel screws bleed rust down the frame.
5) Can I adjust the NGP 160V seal after it's mounted if the door isn't sealing evenly?
That is what the slotted screw holes are for. The aluminum retainer on the 160V mounts through slots rather than round holes, so you can snug the screws, swing the door, and slide the retainer in or out against the vinyl before final tightening. On a door that has sagged or a frame that is out of square, that adjustment is the difference between a seal and a light gap at the top hinge.
6) Will NGP 160V vinyl weatherstripping hold up on an exterior door through winter?
The 160V is rated for service from 0 F to 140 F. Below zero, vinyl stiffens and a perimeter seal can take a set or crack when the door slams, so in a climate that runs colder than 0 F regularly, look at a silicone or brush seal instead. Through a normal commercial heating and cooling swing it is within range.
7) Is the vinyl on the NGP 160V flame resistant for a commercial corridor or stairwell door?
The sealing element is thermoplastic PVC formulated to be flame resistant, which is the reason a vinyl bulb seal gets specified on commercial openings at all. It is a commercial-grade product, not a residential foam tape. Note that flame resistance in the compound is not the same as a fire rating on the assembly, so on a labeled fire door confirm the gasketing called out on the door schedule.
8) Is there another aluminum channel perimeter gasket besides the NGP 160V?
Cal-Royal makes the PG-601 aluminum channel perimeter gasketing with a vinyl insert, which is the same construction idea: extruded aluminum channel carrying a vinyl sealing element. The practical difference on a job is the NGP 160V ships as a complete set cut for a specific opening, 36 x 84 or 42 x 84, with stainless screws included. If you are gasketing a nonstandard opening or a run of odd sizes, a channel gasket you cut to length is the easier way to buy it.
9) Can a door shoe be used instead of the NGP 160V perimeter seal?
No, they seal different parts of the opening and are not interchangeable. The NGP 160V is perimeter gasketing, applied to the head and the two jambs, and it ships as a set matched to the opening size, 36 inch x 84 inch or 42 inch x 84 inch. A door shoe mounts to the bottom edge of the door leaf and seals to the threshold. The Cal-Royal PG-601 is the item that does the same job as the 160V, since it is also aluminum channel perimeter gasketing with a vinyl insert. On an exterior commercial opening, a perimeter seal and a bottom seal are typically both used, not one in place of the other.
10) What is the NGP 160V frame made of, and will it corrode on a coastal or washdown opening?
Aluminum alloy 6063 with T5 temper, supplied in mill finish. 6063 is the standard architectural extrusion alloy and resists corrosion well in mill (uncoated) form, which is why it is the default on entrance weatherstripping. Mill aluminum will dull and gray over time rather than rust. The fasteners are stainless, so nothing in the set is plain steel.
11) What color is the NGP 160V and will it match aluminum storefront frames?
Mill aluminum retainer with a gray vinyl insert. Mill is the raw, unfinished extrusion, so it reads as a natural silver aluminum and sits well against clear anodized storefront and hollow metal painted in light colors. Against a dark bronze or black anodized frame it will stand out.
