NGP Vinyl Door Shoe with Mill Aluminum Base and PVC Seal

Professional Door Bottom Sealing Solution

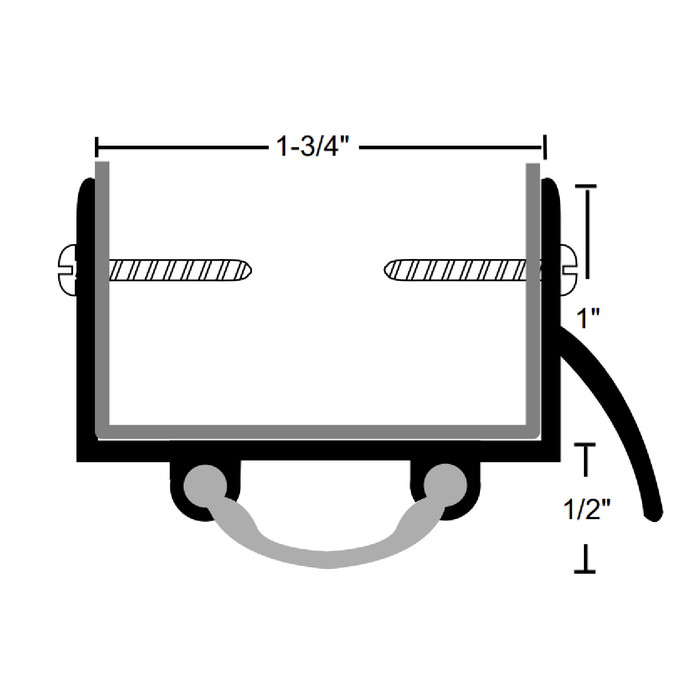

The NGP Vinyl Door Shoe combines a durable mill aluminum base with a thermoplastic PVC vinyl seal for effective door bottom weatherproofing. Constructed from aluminum alloy 6063 with T5 temper and featuring an environmentally friendly bio-based plasticizer formulation, this door shoe provides reliable moisture resistance across a temperature range of 0 F to 140 F. The economical design includes slotted screw holes for easy adjustment and comes complete with #6 x 3/4" stainless steel sheet metal screws.

Professional Features & Benefits

  • Temperature Performance: Operates effectively from 0 F to 140 F for reliable sealing across seasonal temperature variations.
  • Durable Aluminum Construction: Aluminum alloy 6063 with T5 temper provides exceptional strength and corrosion resistance for long-term performance.
  • Environmentally Friendly Seal: Thermoplastic PVC formulated with bio-based plasticizer reduces environmental impact while maintaining sealing effectiveness.
  • Moisture and Flame Resistance: PVC vinyl seal provides superior moisture resistance and flame-resistant properties for enhanced safety.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting and corrosion resistance.
  • Professional Appearance: Mill aluminum finish and gray vinyl seal provide a clean, professional appearance suitable for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Series: Vinyl Door Shoe Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade weatherproofing with aluminum alloy 6063 T5 temper construction and environmentally friendly PVC formulation. The temperature-tested performance from 0 F to 140 F ensures reliable sealing in demanding commercial applications. Engineered with flame and moisture resistance properties, NGP door shoes provide dependable performance where effective door bottom sealing is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Vinyl Door Shoe Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 19V-32 – Frequently Asked Questions

1) Does the NGP 19V door shoe come with mounting screws, or do I need to buy them?
Screws are in the box: #6 x 3/4 inch stainless steel sheet metal screws. Stainless matters on an exterior door bottom where the fasteners take rain and salt. The holes are slotted, so you can set the shoe, check the sweep against the threshold, and shift it up or down before you drive the screws home.
2) Will a vinyl door shoe hold up on an exterior door through winter?
The 19V is rated 0 F to 140 F, so it covers ordinary seasonal swing but it is not a cold-climate part for openings that see sustained sub-zero temperatures. Below 0 F, PVC stiffens and stops conforming to the threshold. For a heated-side or interior opening in any climate, that range is not a constraint.
3) Do I need a door shoe with a rain drip on an exterior opening?
If the door is exposed to driving rain with no overhang, a drip cap sheds water away from the joint instead of letting it run down the face into the threshold. The 19V has no drip. Pemko's 211V is an L-shaped shoe with a rain drip, and the Pemko 215 pairs a rain drip with a fire rating. Under a canopy or on an interior opening, the plain 19V is the right part.
4) What is the closest equivalent to the NGP 19V vinyl door shoe from another manufacturer?
The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the same basic construction as the NGP 19V, which pairs a mill aluminum base with a PVC vinyl seal. The Pemko 209 door shoe is another peer in the same category, with a 1/2 inch by 1-3/8 inch profile. If you are matching an existing door bottom on a fleet of openings, the DS-403 is the nearest like-for-like by material; the Pemko 209 gives you a published profile dimension to check against the clearance under your door.
5) Which door shoe handles driving rain on an exterior entrance better than a plain vinyl shoe?
The NGP 19V uses a flat mill aluminum base with a PVC vinyl seal and no drip feature. On an exterior door taking weather, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 door shoe also carries a rain drip along with its UL10C certification. The drip throws water clear of the door bottom rather than letting it run down onto the sill, which is what a contractor is after on a storefront or a building entrance.
6) What lengths and finishes does the NGP 19V vinyl door shoe come in?
The 19V comes in 32, 36, 42 and 48 inch lengths, and each of those lengths is offered in both mill aluminum and dark bronze. Standard practice is to buy the length at or above your door width and cut the aluminum base down on site to fit between the stops.
7) What else could I use instead of the NGP 19V aluminum door shoe with a vinyl insert?
Same part, other brands: the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, and the Pemko 209 is a door bottom shoe with an Eco-V vinyl insert on a 1/2 by 1-3/8 inch profile. The Pemko 211V, being L-shaped with a rain drip, is a different profile rather than a straight swap.
8) Can I use a fire-rated door shoe on a non-rated exterior door?
Yes. The Pemko 215 fire-rated door shoe with rain drip and UL10C certification and the Pemko 210 fire-rated door bottom shoe both function as ordinary door bottom shoes on non-rated openings. Where the opening is not rated and you want the simpler assembly, the NGP 19V vinyl door shoe with mill aluminum base and PVC seal or the Cal-Royal DS-403 aluminum door shoe with vinyl insert cover the same job. Contractors standardizing one part number across a building sometimes run the rated shoe everywhere to keep a single SKU on the truck.
9) What is the difference between the Pemko 211V and the NGP 19V door shoe?
Profile and drip. The Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert. The NGP 19V is a vinyl door shoe with a mill aluminum base and PVC seal, offered in mill aluminum and dark bronze finishes across 32 through 48 inch lengths, with slotted screw holes for vertical adjustment. An L-shaped shoe wraps the face of the door, so check the door face for existing hardware and astragals before you swap one profile for the other.
10) Which door shoe should I specify when the project calls for low-emission certified materials?
The NGP 19V uses a thermoplastic PVC seal made with a bio-based plasticizer. Where a submittal asks for third-party certification on the sealing material, the Pemko 211V carries a GREENGUARD Gold certified Eco-V insert. The Pemko 209 and Pemko 215 door shoes also use the Eco-V insert. For a healthcare or education job where the specification names an emissions standard, the 211V is the one that states the certification.
11) Can I standardize on the NGP 19V across a whole building of doors?
It is built for commercial duty and covers the common 32 through 48 inch door widths in one part with two finishes, so a property manager or facilities buyer can spec one item across offices, schools, healthcare, retail, warehouse and multi-tenant residential openings. Pick mill aluminum where the frames are clear anodized and dark bronze where they are bronze, and stock the lengths that match your door schedule.
12) Will the vinyl seal on the NGP 19V hold up to moisture and cleaning chemicals at a door bottom?
The seal is thermoplastic PVC with moisture resistance and flame-resistant properties, made with a bio-based plasticizer, and the base is 6063 T5 aluminum for corrosion resistance. That combination is meant for the wet, mopped, salted conditions a door bottom actually sees. The insert is replaceable wear, the aluminum base is not.
13) How much clearance under the door do I need for a door shoe like the NGP 19V?
Measure the gap before you order, because the shoe profile sets the requirement. The Pemko 209 door shoe publishes a 1/2 inch by 1-3/8 inch profile, which tells you the vertical dimension the shoe and insert occupy. The NGP 19V has slotted screw holes that let you set the height at installation, so some undersill variation can be taken up during mounting rather than by swapping parts. On a retrofit where the gap is already cut, the published profile on the 209 is the number to check against.
