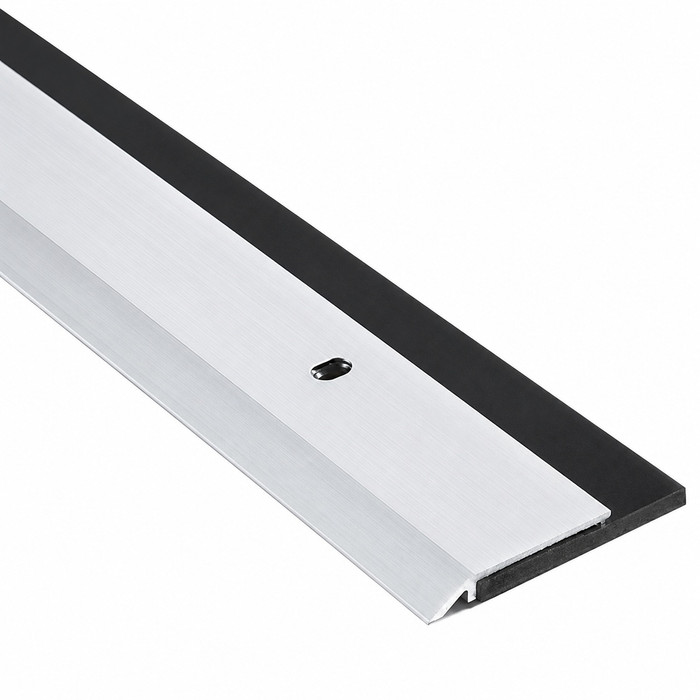

NGP 200 Neoprene Door Sweep with Aluminum Alloy Construction

(No reviews yet) Write a Review

Model: 200NA-36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.05
$17.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 200 Neoprene Door Sweep with Aluminum Alloy Construction

Professional Door Sealing Solution

The NGP 200 Neoprene Door Sweep combines aluminum alloy 6063 T5 temper construction with synthetic rubber polymer blend materials for superior door sealing performance. This BHMA certified door sweep features chloroprene and EPDM rubber construction with excellent abrasion resistance and temperature range from -20 F to 200 F. The flame-resistant and moisture-resistant design includes slotted screw holes for precise adjustment and comes with #6 x 3/4" stainless steel sheet metal screws.

Professional Features & Benefits

  • Temperature Performance: Operates effectively in temperature range from -20 F to 200 F for reliable sealing in various climate conditions.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper frame provides exceptional durability and dimensional stability for commercial applications.
  • Advanced Rubber Blend: Synthetic rubber polymer blend of chloroprene and EPDM delivers very good abrasion resistance, tensile strength and memory for long-lasting performance.
  • Weather Resistance: Flame resistant and moisture resistant design with good resistance to ozone, sunlight and aging for extended service life.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold ensuring compliance with industry standards.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and adjustment during installation for optimal sealing performance.
  • Complete Hardware: Includes #6 x 3/4" stainless steel sheet metal screws for secure mounting and corrosion resistance.
  • Finish Options: Available in anodized aluminum, gold, and dark bronze finishes to complement various door hardware aesthetics.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Neoprene Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic rubber polymer blend materials rated for -20 F to 200 F temperature performance. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold testing. Engineered for demanding commercial applications where dependable weathersealing performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 200NA-36 – Frequently Asked Questions

1) What length NGP 200 door sweep do I order for a standard 36 inch commercial door?
Order the 36 inch. The NGP 200 neoprene sweep runs in six lengths, 36, 38, 42, 48, 55 and 96 inches, and a 3-0 leaf is 36 inches wide, so that length spans the full bottom of the door. The 38, 42, 48 and 55 inch sizes cover wider single leaves, and the 96 inch is there for oversized openings. Both finishes are offered in every one of the six lengths, so the size you need is not limited by the finish you want.
2) Will a neoprene door sweep stay sealed on an exterior door through a cold winter?
Rated from -20 F to 200 F. The blade on the NGP 200 is a synthetic rubber polymer blend of chloroprene and EPDM, and it is BHMA certified to the ANSI/BHMA A156.22 performance tests for heat and cold, so the temperature claim is tested rather than nominal. That range also covers the other end of the problem, a dark metal door on a west elevation or a mechanical room that runs hot, where a cheaper blade goes soft and takes a set.
3) Should I use a rubber blade door sweep or a brush sweep at the bottom of the door?
A rubber blade like the NGP 200 gives a tighter seal against air, light and blown water, but it wants a flat, even surface under the door to seal against. A brush sweep rides over carpet, tile transitions and a slab that is out of level without binding the door. If the floor under the swing is uneven or carpeted, the Pemko 29326NB brush door bottom sweep or the Cal-Royal BTN-112 are the ones to look at. If the door closes onto a threshold or a level slab and you are chasing draft, light gap or noise, the neoprene blade is the better seal.
4) What is the closest cross-brand equivalent to the NGP 200 neoprene door sweep?
The Cal-Royal BTN-112 is built the same way: an extruded aluminum retainer carrying a neoprene insert, which is the same aluminum-plus-neoprene sweep construction the NGP 200 uses. The NGP 200 retainer is 6063 T5 temper aluminum alloy and its insert is a synthetic rubber polymer blend of chloroprene and EPDM rated -20 F to 200 F, certified to ANSI/BHMA A156.22 heat and cold performance tests. If the door already has an aluminum-retainer neoprene sweep on it and the job is a like-for-like replacement, either one keeps the same seal type against the threshold; confirm the length you need before ordering, since the NGP 200 runs 36, 38, 42, 48, 55 and 96 inch.
5) The floor under the door is uneven and there is carpet on one side. Is a neoprene sweep the right choice or should I use a brush?
The NGP 200 seals with a neoprene blade, a chloroprene and EPDM rubber polymer blend, held in a 6063 T5 aluminum retainer. A solid blade wants a reasonably flat, consistent surface to drag across. Where the floor rises and falls or the sweep has to pass over carpet, a brush bottom rides the variation instead of fighting it: the Pemko 29326NB is a 36 inch brush door bottom sweep in clear anodized aluminum, and the Cal-Royal BTN-112 comes out of a brush weatherstrip series while carrying a neoprene insert in an extruded aluminum retainer. Pick the neoprene blade for a flat threshold where you want continuous contact, and the brush where the clearance under the door changes across the swing.
6) Does the NGP 200 door sweep come with mounting screws, and can I adjust it after it is up?
Screws are included, #6 x 3/4 inch stainless steel sheet metal screws. Stainless is the right call on an exterior opening, where a plated head rusts and streaks down the face of the door. The screw holes in the aluminum retainer are slotted, so the height of the blade against the threshold is set as you tighten rather than fixed by wherever the hole lands. If the blade drags or leaves a light gap, back the screws off, shift it and retighten instead of drilling fresh holes. Sheet metal thread suits a hollow metal door.
7) Is a door sweep the same thing as an automatic door bottom?
No, and the difference decides whether the door drags. The NGP 200 is a surface applied sweep, mounted to the face of the door with screws, and the blade stays in contact with the floor or threshold whether the door is open or shut. An automatic door bottom is mortised into or applied to the door and drops its seal only when the door closes, lifting clear as it swings. Use the sweep where the floor under the swing is level and clear. Use an automatic door bottom where the sweep would drag on carpet, a finished floor, or where a smoke or sound seal has to be positive at the bottom.
8) Will this door sweep keep rain from getting under my exterior door?
It seals the gap the water blows through. The NGP 200 blade is moisture resistant and closes the space between the door bottom and the threshold, which is where wind driven rain and air get in. What it does not do is deal with water running down the face of the door, which tracks straight to that joint. For that you add a rain drip above the sweep, like the Pemko 3452 surface plate rain drip door bottom, which throws the runoff clear of the opening. Exterior doors taking direct weather generally get both parts.
9) What finishes does the NGP 200 door sweep come in for matching bronze or aluminum door hardware?
Dark bronze and anodized aluminum. Dark bronze sits alongside bronze anodized frames and dark bronze exit devices and pulls, and the anodized aluminum matches clear anodized aluminum storefront. Both finishes are offered across the entire length range, 36 through 96 inches, so a building with mixed door widths can still be standardized on one finish.
10) I need a door bottom sweep with no visible mounting screws. Does the NGP 200 do that?
No. The NGP 200 mounts through slotted screw holes in the aluminum retainer using the supplied #6 x 3/4 inch stainless steel sheet metal screws, and those slots are the feature that lets you slide the sweep up or down to set blade contact before you tighten it. The fasteners stay visible on the door face. If the appearance matters more than field adjustment, the Pemko 29326NB is a brush door bottom sweep built with a concealed fastener design. It is a trade: adjustable and exposed on the NGP 200, hidden fasteners on the 29326NB.
11) Our school project specifies low emitting materials. Which door bottom sweep meets that?
The Pemko 345V is the one to put on that submittal: it is a door bottom sweep with a GREENGUARD Gold certified Eco-V insert, and the Pemko 56 series sweep uses the same Eco-V insert. The NGP 200 carries a different certification: it is certified to the ANSI/BHMA A156.22 performance tests for heat and cold, with a chloroprene and EPDM insert rated -20 F to 200 F. If the specification section calls for a low emitting material certification on the gasketing, the Eco-V insert products answer it directly; if it calls for A156.22 performance, the NGP 200 does.
12) Exterior door is taking driven rain at the bottom. Will the NGP 200 handle it or do I need a drip?
The NGP 200 is a surface applied sweep: a neoprene blade in an aluminum retainer that seals the gap between the door bottom and the threshold, and it is moisture resistant with good resistance to ozone, sunlight and aging. What it does not do is shed water off the face of the door before it reaches that gap. For an opening where water runs down the exterior face, the Pemko 3452 is a surface plate rain drip door bottom, which combines the door bottom function with a drip profile that throws water clear. On a protected opening or an interior door the NGP 200 blade is the simpler part; on a fully exposed exterior door the drip version is what the condition calls for.
13) The door is 48 inches wide, and there is a 96 inch opening down the hall. Which sweep covers both without cutting?
The NGP 200 is stocked in 36, 38, 42, 48, 55 and 96 inch lengths, so a 48 inch leaf takes the 48 inch part straight off the shelf and the wide opening takes the 96 inch. The Pemko 29326NB brush bottom and the Pemko 56 series sweep with Eco-V insert are both 36 inch parts, sized for a standard 36 inch leaf. For a mixed building where the leaf widths are not all the same, the NGP 200 length range lets one part number and one finish run across the openings.
14) Our doors are dark bronze. Which door bottom sweep matches instead of showing a bright aluminum edge?
The NGP 200 is offered in dark bronze as well as anodized aluminum, in every length from 36 through 96 inch, so the retainer can be ordered to match dark bronze door hardware rather than contrasting with it. The Pemko 29326NB brush bottom is a clear anodized aluminum part, which reads bright against a bronze door. On a lobby or tenant entry where the sweep sits at eye level for anyone approaching, that finish call is usually what decides it.
15) Mechanical room and walk-in cooler doors see real temperature swings. Which sweep is rated for that?
The NGP 200 states an operating range of -20 F to 200 F on its chloroprene and EPDM rubber polymer blend, and it is certified to the ANSI/BHMA A156.22 performance tests for heat and cold, with the insert also described as flame resistant and holding very good abrasion resistance, tensile strength and memory. That is the spec to cite for a boiler room, a cooler vestibule, or an unconditioned loading area. Among the alternatives, the Cal-Royal BTN-112 also uses a neoprene insert in an extruded aluminum retainer, while the Pemko 345V and Pemko 56 series use an Eco-V insert, which is a different elastomer entirely. Where the temperature range is the governing requirement, the NGP 200 is the one carrying that rating in its own specification.
16) How many door sweeps do I need for a pair of doors?
Two, one per leaf, each sized to the width of the leaf it goes on. A pair of 36 inch doors takes two 36 inch NGP 200 sweeps, not one long one. The sweep only closes the gap at the bottom of a leaf. The vertical joint where two leaves meet is sealed by an astragal, which is a separate part, so a pair of exterior doors needs both if you are chasing air infiltration.
17) Will a neoprene sweep survive a high traffic warehouse or dock door?
The blade is built for it. The chloroprene and EPDM polymer blend is rated for very good abrasion resistance, tensile strength and memory, which is what keeps it sealing after thousands of cycles of dragging across the threshold instead of curling and staying curled. It also holds up to ozone, sunlight and aging, which is the failure mode on a dock door standing in the sun. The retainer is 6063 T5 aluminum, so it stays straight and does not rust out at the fastener line. The material is flame resistant as well.
