NGP 202NB Neoprene Door Sweep ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$261.52

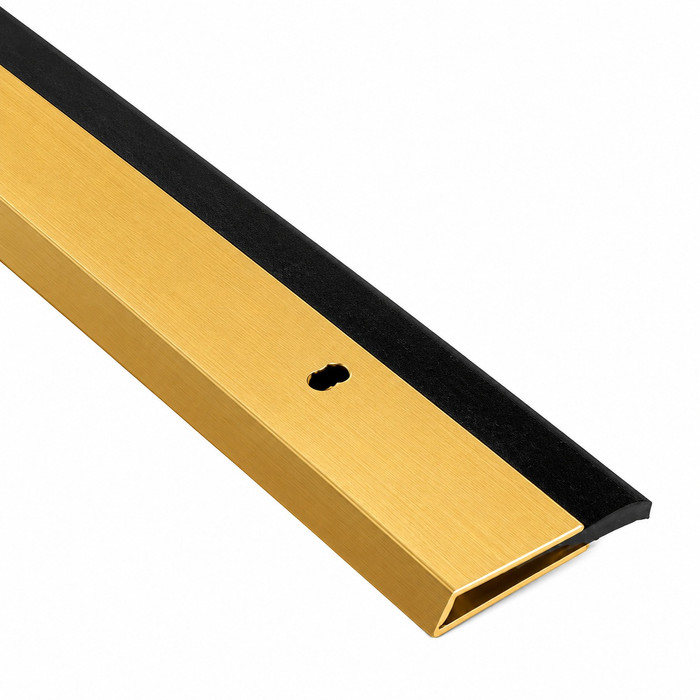

NGP NGP 202NB Neoprene Door Sweep, 72" Gold NGP-202NB

NGP 202NB Neoprene Door Sweep 72" Gold Finish with Aluminum Alloy Construction

(No reviews yet) Write a Review

Model: 202NB
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$261.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Neoprene Door Sweep 72" Gold Finish with Aluminum Alloy Construction

Professional Weatherstripping Solution for Commercial Applications

The NGP Neoprene Door Sweep delivers superior weather sealing performance with its 72" length aluminum alloy construction and synthetic rubber polymer blend. Featuring aluminum alloy 6063 T5 temper construction with chloroprene and EPDM neoprene material, this door sweep operates reliably in temperatures from -20 F to 200 F. BHMA certified to ANSI/BHMA A156.22 performance standards for heat and cold resistance, ensuring professional-grade durability for commercial door applications.

Professional Features & Benefits

  • 72" Length Coverage: Full-width door sweep designed for standard commercial door applications with complete bottom seal coverage.
  • Temperature Range Performance: Operates effectively from -20 F to 200 F for reliable sealing in extreme weather conditions and climate-controlled environments.
  • Heavy-Duty Construction: Aluminum alloy 6063 T5 temper construction provides exceptional durability and dimensional stability for long-term commercial use.
  • Advanced Polymer Blend: Synthetic rubber polymer blend combining chloroprene and EPDM delivers superior abrasion resistance, tensile strength, and memory retention.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat and cold resistance ensuring code compliance and professional reliability.
  • Weather Resistance: Flame resistant and moisture resistant construction with good resistance to ozone, sunlight, and aging for extended service life.
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment during installation with included #6 x 3/4" stainless steel sheet metal screws.
  • Professional Gold Finish: Attractive gold anodized finish complements commercial door hardware while providing corrosion resistance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Sweeps and Bottoms
  • Series: Neoprene Door Sweep Series
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Weatherized Construction

This door sweep features advanced weatherization with flame resistant and moisture resistant construction designed for demanding environmental conditions. The synthetic rubber polymer blend provides good resistance to ozone, sunlight, and aging while maintaining effective sealing performance throughout the -20 F to 200 F temperature range.

Why Choose NGP Quality?

NGP door sweep products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and BHMA certification to ANSI/BHMA A156.22 performance standards. The advanced chloroprene and EPDM polymer blend provides superior abrasion resistance, tensile strength, and memory retention for demanding commercial applications. Engineered for dependable weather sealing performance where consistent environmental control is essential.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Neoprene Door Sweep Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 202NB – Frequently Asked Questions

1) Will the NGP 202NB door sweep cover a standard 36 inch commercial door?
Yes. The 202NB comes as a 72 inch extrusion, so a single piece covers a 36 inch door with plenty left over, and you cut it down to the door width on site. Many crews get two 36 inch doors out of one length. The aluminum retainer cuts cleanly with a hacksaw or chop saw.
2) Does the NGP 202NB sweep come with mounting screws, or do I need to buy fasteners separately?
Fasteners are included. The 202NB ships with #6 x 3/4 inch stainless steel sheet metal screws, and the retainer has slotted screw holes so you can slide the sweep up or down to set the seal against the threshold before you tighten. That adjustment matters on doors that have settled or on an uneven slab.
3) Is the NGP 202NB certified to any weatherstripping standard?
It carries BHMA certification to ANSI/BHMA A156.22, specifically the heat and cold resistance performance tests. If your spec or facility standard calls out A156.22 gasketing, the 202NB meets that reference.
4) Should I use a neoprene sweep or a brush sweep on an exterior door?
The NGP 202NB uses a solid neoprene blend seal rated from -20 F to 200 F, which gives a continuous contact seal against air and moisture at the door bottom. If the threshold is uneven or the floor is rough enough that a solid blade would drag, a brush type such as the Pemko 29326NB brush door bottom sweep rides over irregular surfaces instead of wiping a flat plane. Cal-Royal also groups its BTN-112 in a brush weatherstrip series. Choose neoprene where you want a tight wipe on a smooth threshold, brush where sweep clearance varies.
5) What is the closest equivalent to the NGP 202NB neoprene door sweep from another brand?
The NGP 202NB pairs an aluminum alloy 6063 T5 retainer with a chloroprene and EPDM neoprene seal in a 72 inch length. The nearest like-for-like is the Cal-Royal BTN-112, which uses an extruded aluminum retainer with a neoprene insert as well, so the seal material and retainer construction match the 202NB approach. Confirm the length you need against the opening, since the 202NB covers 72 inches of door width.
6) What temperature range can the NGP 202NB neoprene sweep handle?
Rated from -20 F to 200 F. The blade is a chloroprene and EPDM polymer blend, which keeps its memory in cold weather instead of taking a set, and holds up near heat sources. That range covers unheated warehouse and loading dock doors as well as normal exterior entrances.
7) Will the gold finish on the NGP 202NB match my other door hardware?
The retainer is gold anodized aluminum, which reads as a brass-tone finish next to brass or bronze-family door hardware. Gold is the only finish offered on the 202NB, so if your building standard is clear or dark anodized, you would be matching to a different extrusion. The anodizing also adds corrosion resistance on exterior openings.
8) What is the NGP 202NB retainer made of, and will it hold up on a high-traffic entrance?
The retainer is extruded aluminum alloy 6063 with a T5 temper, which is the standard architectural extrusion temper and keeps the profile straight over a 72 inch run without bowing. The neoprene blade is specified for abrasion resistance and memory retention, and the material is flame resistant and moisture resistant with good resistance to ozone, sunlight, and aging. It is a commercial-rated part, not a residential sweep.
9) I need a low-VOC or green-certified door sweep for a LEED job. Is the NGP 202NB it?
No. The 202NB uses a chloroprene and EPDM neoprene blend and carries no green product certification. For that requirement look at the Pemko 345V, which uses a GREENGUARD Gold certified Eco-V insert, or the Pemko 56 Series, also supplied with an Eco-V insert.
10) Will a door sweep alone stop water from running under my exterior door?
A surface-applied sweep like the 202NB seals the gap between the door bottom and the threshold, which handles air infiltration and driven moisture at the bottom edge. Water running down the face of the door is a different problem: for that you want a rain drip added above the sweep, such as the Pemko 3452 surface plate rain drip door bottom. On a fully exposed exterior opening, many specs pair the two.
11) What door sweep should I use if the project requires a low emitting or green certified seal material?
The NGP 202NB seal is a chloroprene and EPDM synthetic rubber blend, BHMA certified to ANSI/BHMA A156.22 for heat and cold resistance. If the submittal calls for a certified low emitting insert instead, the Pemko 345V uses a GREENGUARD Gold certified Eco-V insert, and the Pemko 56 series also uses an Eco-V insert in a 36 inch length. Those address the material certification question that the 202NB answers through its BHMA performance certification.
12) I need a 36 inch sweep, not 72 inch. What are my options?
The NGP 202NB comes as a 72 inch extrusion, which can be cut down for a standard 36 inch door leaf and is often bought long so one piece covers a pair. If you would rather buy it already at length, the Pemko 29326NB and the Pemko 56 series are both supplied in 36 inch lengths. Note that the 29326NB is a brush sweep with a concealed fastener design and the 56 uses an Eco-V insert, so the seal material differs from the 202NB neoprene blend.
13) Which door sweep hides the mounting screws for a cleaner look on a storefront or lobby door?
The NGP 202NB mounts through slotted screw holes in the aluminum retainer with #6 x 3/4 inch stainless steel sheet metal screws, so the fasteners are visible and the slots let you adjust seal height at install. If exposed fasteners are a concern on a visible opening, the Pemko 29326NB uses a concealed fastener design. The tradeoff is that the visible slotted holes on the 202NB are what give you the up and down adjustment.
14) Does the gold finish on the NGP 202NB limit my substitution options?
The NGP 202NB is offered in a gold anodized finish, which reads warm against brass or bronze door hardware. Among the comparable sweeps, the Pemko 29326NB is a clear anodized aluminum, which reads silver. If you are matching existing gold or brass toned trim across a set of doors, the 202NB is the one that carries that finish; if the other doors are clear or satin aluminum, the clear anodized option is the closer visual match.
15) Can I mount the NGP 202NB on the exterior face of an outswing door?
It is a surface-applied sweep that screws to the face of the door through slotted holes, so it can go on either face. Common practice is to mount it on the weather side, which is the exterior face on an outswing door, so the blade sheds water away. The gold anodizing gives the retainer corrosion resistance for that exposure.
