NGP 3 Series Steel Mounting Bracket 3/16" Thick 6" Long

Professional Door Hardware Mounting Solution

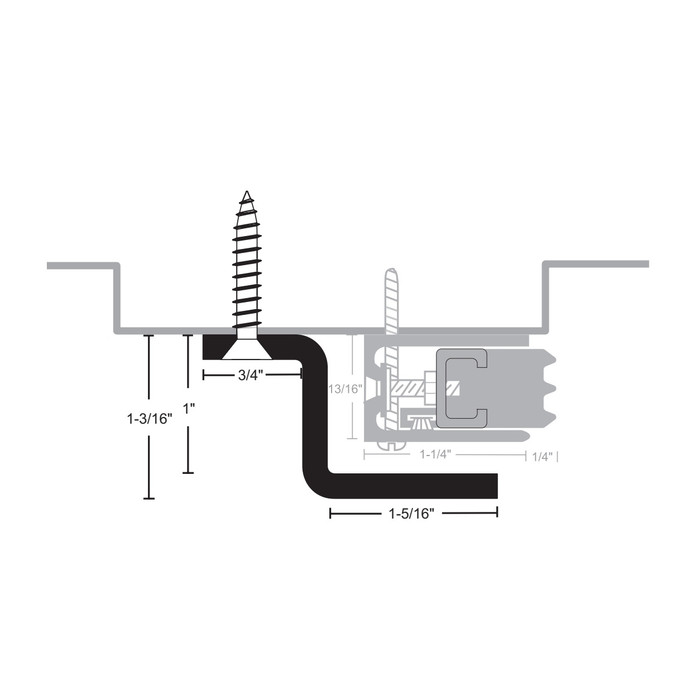

The NGP 3 Series Steel Mounting Bracket provides a professional solution for installing door closer shoes or rim exit device strikes without compromising perimeter seals. This 3/16" thick, 6" long steel bracket eliminates the need for interruption or notching of door seals, maintaining building envelope integrity while ensuring proper hardware installation.

Professional Features & Benefits

  • Seal Preservation Design: Allows installation of door closer shoe or rim exit device strike without interruption or notching of perimeter seals for maintained weather protection.
  • Heavy-Duty Construction: 3/16" thick steel construction provides robust mounting support for commercial door hardware applications.
  • Optimal Length: 6" long design offers adequate mounting surface and proper load distribution for reliable hardware support.
  • Universal Compatibility: Fits over 103N, 104N, 303N, 304N, 1038N, and 3038N series for versatile installation options across multiple door configurations.
  • Complete Hardware Package: Furnished with #12 x 1-1/4" SMS fasteners for immediate installation without additional hardware procurement.
  • Finish Options: Available in Aluminum Silver and Dark Bronze finishes to complement various door hardware aesthetics.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: Series 3
  • Product Subgroup: Mounting Bracket
  • Product Type: Bracket
  • Subcategory: Mounting Bracket

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP mounting brackets deliver professional-grade reliability with heavy-duty 3/16" thick steel construction designed for demanding commercial applications. The precision-engineered design maintains building envelope integrity while providing secure hardware mounting. Engineered for demanding commercial applications where dependable performance and seal preservation are essential.

Product Specs

Subcategory:
Mounting Bracket
Product Group:
Door Trim and Accessories
Product Subgroup:
Mounting Bracket
Product Type:
Bracket
Product Model:
Series 3
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Commercial/Residential:
Commercial

NGP 3ASL – Frequently Asked Questions

1) What does the NGP 3 Series mounting bracket actually do on the door?
It lets you mount a door closer shoe or a rim exit device strike on a frame that already has perimeter gasketing, without cutting or notching the seal to make room. The hardware fastens to the bracket instead of through the seal line, so the weather seal stays continuous.
2) Which NGP gasketing series does the 3 Series bracket fit over?
It fits over the 103N, 104N, 303N, 304N, 1038N and 3038N series. If the frame carries one of those perimeter gasketing profiles, the bracket spans it and gives you a solid mounting face on top.
3) Do I need to buy screws separately for the NGP 3 bracket?
No. The bracket comes with #12 x 1-1/4 inch sheet metal screws, so the fasteners for mounting the bracket itself are in the box. The closer shoe or exit device strike still uses its own hardware.
4) How thick and how long is the NGP 3 Series steel bracket?
3/16 inch thick steel, 6 inches long. That thickness is what carries the load of a closer shoe pulling on it, and the 6 inch run spreads the fastener pattern out rather than concentrating it at one point.
5) Can I just notch the weatherstrip instead of using a mounting bracket?
You can, and that's exactly the practice the 3 Series bracket exists to avoid. Notching the perimeter seal to clear a closer shoe or strike leaves a gap in the gasket run at the head or jamb, which is where air and light infiltration show up on a punch list. The bracket keeps the gasket continuous and puts the hardware on 3/16 inch steel instead.
6) What finishes does the NGP 3 mounting bracket come in?
Three: Aluminum Silver, Dark Bronze, and Prime Coat. Prime Coat is the one to order when the frame is being field painted to match a color scheme, since it takes topcoat directly.
7) Is this bracket meant for commercial openings or will it work on a house door?
It's a commercial-rated part, built around commercial frame gasketing and commercial closer and exit device hardware. On a residential door you generally have neither the perimeter gasketing series it spans nor a rim exit device, so there's usually nothing for it to solve.
