NGP 7V Series Steel Mounting Bracket 3/16" Thick for Door Closer and Exit Device Installation

Professional Door Hardware Mounting Solution

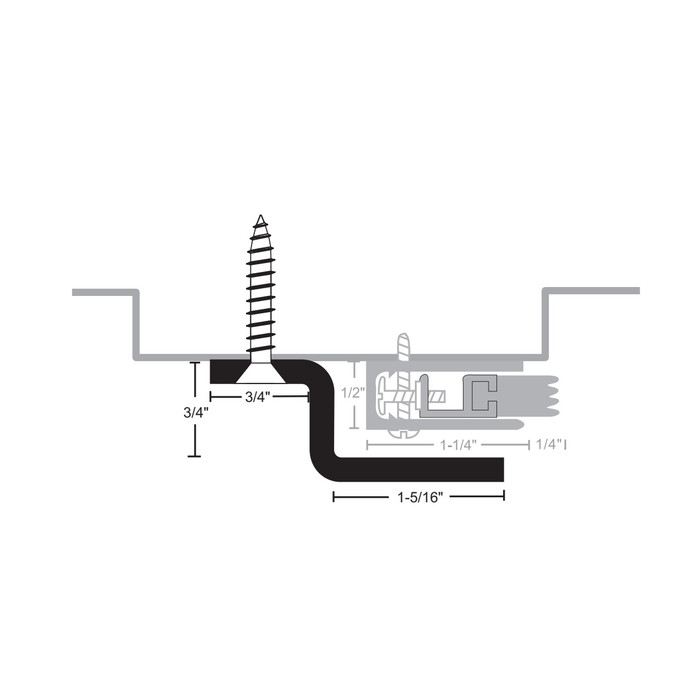

The NGP 7V Series Steel Mounting Bracket provides a professional solution for installing door closer shoes or rim exit device strikes without compromising perimeter seals. This 3/16" thick steel bracket measures 6" long and is specifically designed to fit over 106N, 107N, 141P, and 141S series components, ensuring proper alignment and installation integrity.

Professional Features & Benefits

  • Seal Preservation Design: Allows installation of door closer shoe or rim exit device strike without interruption or notching of perimeter seals for maintained weatherproofing.
  • Heavy-Duty Construction: 3/16" thick steel construction provides robust mounting support for commercial door hardware applications.
  • Optimal Dimensions: 6" long design ensures adequate coverage and support for proper hardware mounting and alignment.
  • Series Compatibility: Specifically engineered to fit over 106N, 107N, 141P, and 141S series components for versatile installation options.
  • Complete Hardware Package: Furnished with #12 x 1-1/4" SMS fasteners for immediate installation without additional hardware requirements.
  • Professional Installation: Eliminates the need for seal modification or notching, maintaining building envelope integrity while enabling proper hardware mounting.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Model: Series 7
  • Product Type: Bracket
  • Subcategory: Mounting Bracket

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP mounting brackets deliver professional-grade reliability with heavy-duty 3/16" thick steel construction designed for demanding commercial applications. The precision-engineered design maintains perimeter seal integrity while providing secure mounting for critical door hardware components. Engineered for demanding commercial applications where dependable performance and building envelope protection are essential.

Product Specs

Product Type:
Bracket
Subcategory:
Mounting Bracket
Commercial/Residential:
Commercial
Product Model:
Series 7
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Group:
Door Trim and Accessories
Product Subgroup:
Mounting Bracket

NGP 7ASL – Frequently Asked Questions

1) What does the NGP 7V mounting bracket actually do on a door with perimeter gasketing?
The 7V is a steel filler bracket that lets you mount a door closer shoe or a rim exit device strike on a frame that already carries perimeter seal, without cutting or notching the gasketing to clear the hardware. The bracket sits over the seal housing and gives the closer arm shoe or strike a flat, solid landing, so the weather seal runs continuous and the building envelope stays intact.
2) Which NGP seal series does the 7V bracket fit over?
It is made to fit over the 106N, 107N, 141P and 141S series components. If the opening is sealed with one of those four, the 7V drops over it. Gasketing outside that group is not covered by the bracket's fit.
3) I manage a building where the installers notched the weatherstrip to fit the closer shoes. Will this fix that on the rest of my doors?
On future installs, yes, that is exactly what the 7V is for. It removes the reason to notch: the closer shoe mounts to the bracket instead of into the seal. On doors already notched, the bracket does not repair the cut gasket, so plan on replacing that seal section at the same time. It only works where the seal is the 106N, 107N, 141P or 141S series.
4) How thick and how long is the NGP 7V bracket?
Steel at 3/16 inch thick, 6 inches long. The 3/16 gives you enough meat to take the fastener pull from a closer shoe, and the 6 inch run spreads the load across the seal housing rather than point-loading it at the shoe.
5) Do I need to buy screws separately for the 7V bracket?
No. The bracket comes with #12 x 1-1/4 inch sheet metal screws, so you can hang it as it arrives. Fasteners for the closer shoe or the exit device strike itself still come from that hardware's own package.
6) What finishes does the NGP 7V bracket come in?
Three: aluminum silver, dark bronze, and prime coat. Silver and dark bronze match the usual anodized storefront and frame finishes. Prime coat is the one to order when the frame is painted, since it takes finish paint directly and can be matched to the opening.
7) Can I use the 7V bracket for a rim exit device strike, or is it only for door closers?
Both. The same bracket serves a door closer shoe or a rim exit device strike, which is useful on a pair where one leaf takes the closer arm shoe and the other takes the rim strike, since you can specify one part for both conditions.
8) Is the 7V bracket rated for commercial traffic, or is it a residential part?
Commercial. NGP classifies the 7V as commercial door hardware, and the 3/16 inch steel section is sized for closers and exit devices in office buildings, schools, hospitals, retail, warehouses and government facilities rather than light residential use.
