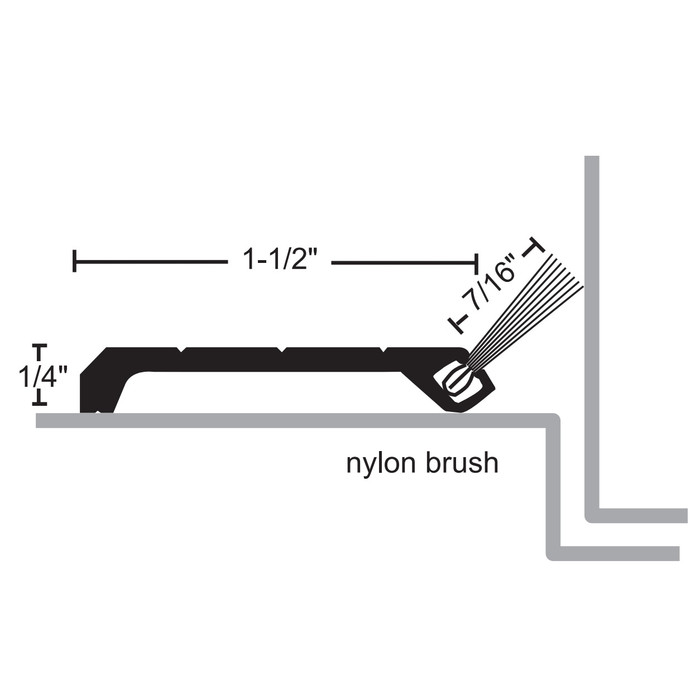

NGP 706E Nylon Brush Perimeter Seal with Mill Aluminum Construction for Parallel Arm Closers

NGP 706E Nylon Brush Perimeter Seal with Mill Aluminum Construction for Parallel Arm Closers

(No reviews yet) Write a Review

Model: 706E-36X84

In Stock (leaves warehouse same day if ordered before 3pm ET)

$519.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 706E Nylon Brush Perimeter Seal with Mill Aluminum Construction for Parallel Arm Closers

Professional Door Weatherization Solution

The NGP 706E Nylon Brush Perimeter Seal delivers comprehensive door weatherization with aluminum alloy 6063, T5 temper construction and synthetic polyamide brush material. Designed specifically for compatibility with parallel arm closers, this weatherseal operates effectively in temperature ranges from -70 F to 425 F while maintaining excellent abrasion resistance, flexibility and memory. BHMA certified to ANSI/BHMA A156.22 performance standards for heat, cold, air infiltration and smoke infiltration applications.

Professional Features & Benefits

  • Wide Temperature Range: Operates from -70 F to 425 F for reliable performance in extreme climate conditions.
  • Heavy-Duty Construction: Aluminum alloy 6063, T5 temper frame with synthetic polyamide brush material provides exceptional durability for commercial applications.
  • Parallel Arm Closer Compatibility: Designed specifically for use with parallel arm closers with no break in seal for closer mounting.
  • BHMA Certification: Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration compliance.
  • Superior Material Properties: Excellent abrasion resistance, flexibility and memory with moisture resistance and insecticide retention capabilities.
  • Installation Flexibility: Jamb sections furnished with slotted holes for adjustment, allows mounting of rim exit device strikes without notching gasketing.
  • Environmental Compliance: REACH and RoHS compliant materials for regulatory compliance in commercial applications.
  • Complete Hardware Package: Self drilling #8 (Tek type) screws furnished for complete installation solution.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP weatherization products deliver professional-grade reliability with aluminum alloy 6063, T5 temper construction and synthetic polyamide brush materials rated for -70 F to 425 F temperature range. BHMA certified to ANSI/BHMA A156.22 performance standards with REACH and RoHS compliance for regulatory requirements. Engineered for demanding commercial applications where dependable weatherization performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 706E-36X84 – Frequently Asked Questions

1) Will the NGP 706E perimeter seal work on a door that has a parallel arm closer?
That's exactly what the 706E is built for. The head section runs continuous with no break in the seal where the closer arm mounts, so you get an unbroken perimeter instead of cutting the gasket around the closer shoe. Jamb sections come with slotted holes so you can shift the seal for contact adjustment after the door hangs.
2) Can I mount a rim exit device strike over NGP 706E gasketing?
Yes, the 706E lets you mount rim exit device strikes without notching the gasketing. That matters on a pair or on a single with a rim device, because a notched seal is where smoke and air get through and where a fire inspector looks first.
3) Is the NGP 706E rated for smoke sealing on a commercial door?
It's BHMA certified to ANSI/BHMA A156.22 for heat, cold, air infiltration and smoke infiltration. That is the gasketing performance standard institutional specs call out, so it answers a smoke-seal line item on a drawing directly.
4) What is the difference between the NGP 706E brush seal and the Cal-Royal PG-601 perimeter gasketing?
Both are aluminum channel perimeter seals for the head and jambs of a commercial opening, but they seal with different materials. The NGP 706E uses a synthetic polyamide nylon brush in an aluminum alloy 6063, T5 temper housing, rated from -70 F to 425 F and BHMA certified to ANSI/BHMA A156.22 for heat, cold, air infiltration and smoke infiltration. The Cal-Royal PG-601 is an aluminum channel gasketing with a vinyl insert. A brush seal sweeps over irregular or warped door edges and tolerates high heat, while a vinyl insert makes contact compression against the stop. On an opening with a parallel arm closer, the 706E runs the head with no break in the seal for closer mounting.
5) Brush seal or vinyl bulb seal, which should I use on a commercial entrance?
The 706E uses a synthetic polyamide brush against an aluminum alloy 6063 T5 retainer. Brush wins where the door drags or sees heavy traffic, because the filaments sweep rather than compress and they take abrasion without taking a set. Vinyl compresses tighter for a hard air seal but flattens over time and stiffens in cold. If you want the vinyl insert approach instead, the Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert.
6) Will NGP 706E hold up on an unconditioned warehouse or a boiler room door?
Rated from -70 F to 425 F, so freezer vestibules, unheated loading docks and hot mechanical rooms are all inside the range. The polyamide brush also resists moisture and retains insecticide, which is a point in its favor on food service and warehouse openings.
7) Do I need to buy fasteners separately for the NGP 706E seal?
No. Self drilling #8 Tek type screws ship with the set, so it goes into a hollow metal frame without pre-drilling. Nothing else is required to hang the perimeter itself.
8) Does the NGP 706E seal the bottom of the door too?
No. The 706E is a perimeter seal, meaning head and both jambs only. The sweep or gap at the threshold is a separate item, so plan on a door bottom or sweep and a threshold alongside it if you are sealing the full opening.
9) I need perimeter gasketing for a standard 3-0 x 7-0 door without a parallel arm closer - is the NGP 706E still the right pick?
It will fit - the NGP 706E comes in a 36 inch x 84 inch set that covers a 3-0 x 7-0 opening at the head and both jambs, with jamb sections slotted for adjustment and self drilling #8 Tek screws included. Its parallel arm closer feature is simply that the head section has no break in the seal, which does not hurt a door without a closer. If you would rather use a compression seal than a brush, the Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert.
10) We use rim exit devices on these doors - does the choice of perimeter seal matter?
It does. The NGP 706E allows mounting of rim exit device strikes without notching the gasketing, so the jamb run stays continuous where the strike lands, and jamb sections are furnished with slotted holes for adjustment. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing with a vinyl insert - a compression style seal rather than a brush.
11) Can I use a door shoe instead of the NGP 706E?
No - they seal different parts of the opening. The NGP 706E is perimeter gasketing that mounts to the head and jambs of the frame, sold in sets sized to the opening such as 36 x 84, 42 x 84, 48 x 84 and 60 x 96. A door shoe seals the bottom edge of the door against the threshold and does nothing for the head and jambs. Products like the Cal-Royal PG-601 aluminum channel gasketing with vinyl insert are the perimeter alternative; a shoe is a companion piece, not a substitute.
12) Is NGP 706E acceptable for a project with REACH and RoHS material requirements?
Yes. The 706E materials are REACH and RoHS compliant, which is what government, healthcare and education submittals tend to ask for on gasketing.
