NGP 9600A High Temperature Nyl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$399.41

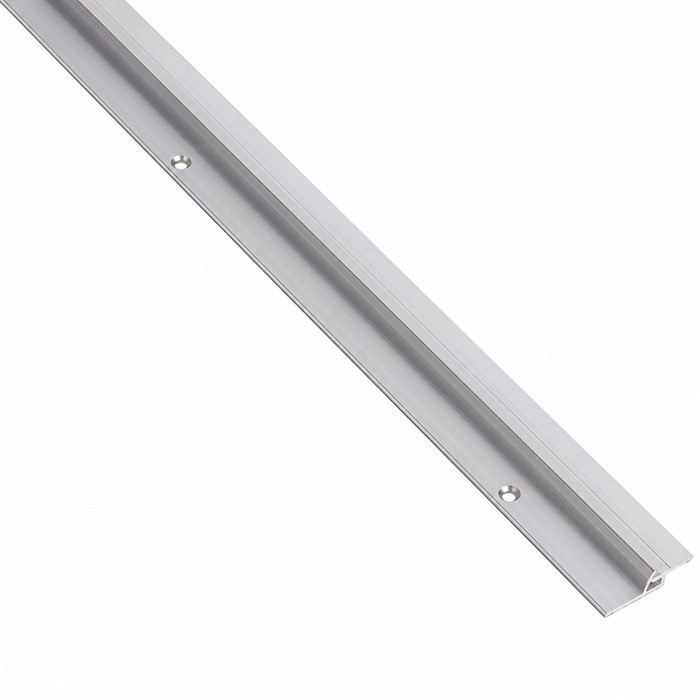

NGP NGP 9600A High Temperature Nylon Brush Plus Perimeter Seal / Sweep, Anodized Aluminum NGP-9600A

NGP 9600A High Temperature Nylon Brush Perimeter Seal with Anodized Aluminum Housing

(No reviews yet) Write a Review

Model: 9600A-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$399.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP High Temperature Nylon Brush Perimeter Seal with Anodized Aluminum Housing

Premium Temperature-Resistant Door Sealing Solution

The NGP High Temperature Nylon Brush Perimeter Seal delivers exceptional air infiltration protection with premium-grade synthetic polymer construction rated for extreme temperature performance from -70 F to 425 F. Featuring aluminum alloy 6063 T5 temper housing with anodized finish and polyamide brush material, this professional-grade seal provides excellent abrasion resistance, flexibility, and memory retention for demanding commercial applications.

Professional Features & Benefits

  • Extreme Temperature Performance: Rated for -70 F to 425 F operating range, specially formulated to withstand greater temperature extremes while maintaining sealing effectiveness.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper housing with anodized finish and synthetic polyamide brush material for long-term durability.
  • Superior Sealing Performance: Excellent abrasion resistance, flexibility and memory provide maximum protection against air infiltration in commercial applications.
  • Moisture and Chemical Resistance: Moisture-resistant construction retains insecticides well for enhanced pest control applications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment during installation for optimal sealing performance.
  • Complete Hardware Included: #6 x 3/4" stainless steel sheet metal screws furnished for secure mounting to door and frame surfaces.
  • Environmental Compliance: REACH and RoHS compliant materials meet current environmental and safety standards for commercial installations.
  • Optional Fast Attach System: FATT (Fast Attach Tape) option available for alternative mounting applications where screw installation is not preferred.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP perimeter sealing products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and premium-grade synthetic polymer materials rated for extreme temperature performance. REACH and RoHS compliant materials ensure environmental compliance while excellent abrasion resistance and flexibility provide long-term sealing effectiveness. Engineered for demanding commercial applications where dependable air infiltration protection is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 9600A-36 – Frequently Asked Questions

1) Will the NGP 9600A brush seal hold up next to a kitchen oven or a boiler room door?
Temperature range is the reason to pick the 9600A: the nylon brush and housing are rated from -70 F to 425 F, so it stays serviceable at heat levels that break down standard vinyl or silicone gasketing. That covers commercial kitchen, boiler room, and mechanical room openings as well as freezer and cold storage doors at the low end.
2) What lengths does the NGP 9600A perimeter seal come in, and how do I cover a standard commercial opening?
Three lengths are made: 36 inches, 84 inches, and 96 inches. The 36 inch piece is the head length for a standard 3-0 door; the 84 inch pieces run the jambs on a 7-0 opening. For a single 3-0 x 7-0 door you need one 36 inch head and two 84 inch jamb pieces. The 96 inch length covers 8-0 tall openings or gets cut down for taller-than-standard jambs.
3) Is a brush perimeter seal or a vinyl bulb seal better for my door?
They solve different problems. A nylon brush seal like the 9600A sweeps against the door face and tolerates a gap that changes as the door settles or warps, and it keeps working through the -70 F to 425 F range where vinyl hardens or melts. A vinyl insert gasket, such as the Cal-Royal PG-601 aluminum channel perimeter gasketing, compresses against the stop and gives a tighter air and sound seal on a well-hung door at normal building temperatures. Pick brush for heat, abrasion, and doors that move; pick vinyl for maximum air seal on a stable opening.
4) Can I install NGP 9600A weatherstripping on an existing door without removing it?
Yes. The 9600A is a surface applied perimeter seal: the anodized aluminum housing screws to the face of the frame at the head and both jambs, so the door stays hung and no mortising or routing is involved. The slotted holes let you set brush contact after the housing is up, which matters on an older opening where the door no longer sits square in the frame.
5) What is the difference between the NGP 9600A brush perimeter seal and the Cal-Royal PG-601?
Both mount to the frame perimeter in an aluminum channel, but they seal with different materials. The NGP 9600A uses a nylon (polyamide) brush in an anodized aluminum alloy 6063 T5 housing, rated from -70 F to 425 F. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing that seals with a vinyl insert. A brush sweeps across an irregular or out-of-plumb door edge and tolerates high heat; a vinyl insert bears against the door face as a compression seal. Match the choice to the opening: brush for high-temperature or abrasive service and for doors that do not close consistently tight, vinyl insert where a compression contact seal is wanted at normal building temperatures.
6) Do I get the mounting screws with the NGP 9600A, or do I need to buy fasteners separately?
Fasteners come in the box. Each piece is furnished with #6 x 3/4 inch stainless steel sheet metal screws for mounting to the door frame. The screw holes are slotted, so you can shift the housing in or out against the door face to dial in brush contact before you tighten down. If you would rather not drill the frame, the seal is also offered with the FATT fast attach tape option.
7) Will an aluminum brush seal corrode on an exterior door or in a humid area?
The housing is 6063 T5 aluminum with an anodized finish, and the supplied screws are stainless steel, so the assembly holds up in wet and humid service. The polyamide brush is moisture resistant. Anodized aluminum also means the housing keeps its appearance rather than chalking the way a painted steel channel would.
8) Does the NGP 9600A brush seal help keep insects and rodents out of a warehouse door?
Pest exclusion is a real use for it. The nylon brush fills the perimeter gap that insects and vermin travel through, and the polyamide filament retains insecticides well if the facility treats the opening. On a loading dock or warehouse door the brush also puts up with the constant traffic and grit that would tear a vinyl bulb.
9) Can I use the 9600A as a door sweep on the bottom of the door as well as around the frame?
It is built as a perimeter seal for the head and jambs, and the same brush and anodized housing is applied as a sweep on the bottom of the door. Same surface mount, same slotted adjustment, same -70 F to 425 F rating, so a single product can close the full perimeter of an opening.
10) Which perimeter seal should I use for a door that does not close tightly against the stop?
A brush seal handles that condition better than a compression seal. The NGP 9600A carries a nylon brush described for its flexibility and memory, so the filaments bridge an uneven gap and return to shape after each cycle, and its slotted screw holes let you shift the housing on the stop to dial in contact during installation. The Cal-Royal PG-601 uses a vinyl insert, which seals by bearing against the door and therefore depends on the door meeting it consistently. On a warped, sagging, or out-of-plumb door, the brush is the more forgiving of the two.
11) Is the Cal-Royal PG-601 a door shoe or a perimeter gasket?
The PG-601 is aluminum channel perimeter gasketing with a vinyl insert, so it mounts to the frame around the head and jambs like the NGP 9600A nylon brush perimeter seal. Do not assume it fills the bottom-of-door role: a door shoe fastens to the door bottom and rides over the threshold, which is a separate part from perimeter gasketing on the head and jambs. If you are sealing the perimeter, the PG-601 and the 9600A address the same location on the opening in different sealing materials.
12) Does the NGP 9600A meet REACH and RoHS requirements for a government or healthcare spec?
The materials are REACH and RoHS compliant, which is what most institutional and government submittals ask for on gasketing. It is a commercial grade product, used on office buildings, schools, hospitals, retail, industrial facilities, multi-tenant residential, and municipal buildings.
