NGP 9605A 48 High Temperature ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$59.05
NGP NGP 9605A 7/16" High Temperature Nylon Brush Plus Perimeter Seal / Sweep, 48", Anodized Aluminum NGP-9605A 48

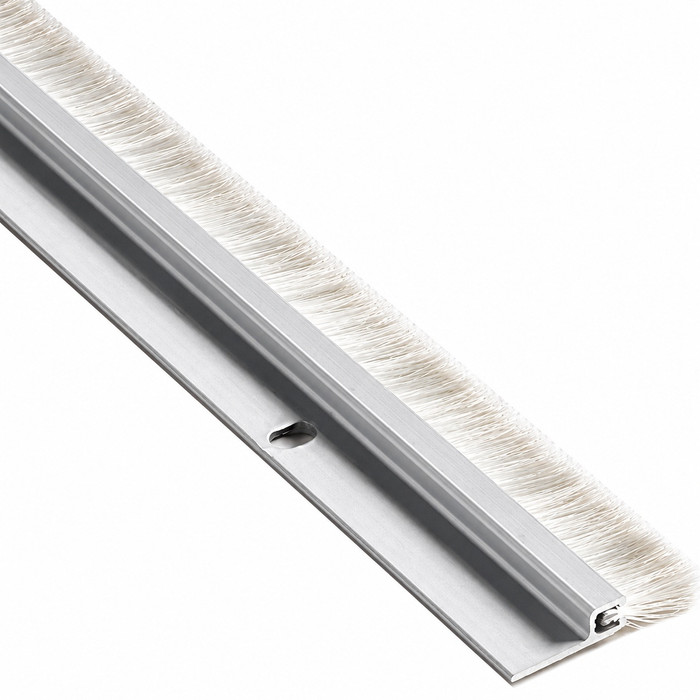

NGP 9605A 48 High Temperature Nylon Brush Plus Perimeter Seal 7/16" x 48" Anodized Aluminum

(No reviews yet) Write a Review

Model: 9605A 48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP High Temperature Nylon Brush Plus Perimeter Seal 7/16" x 48" Anodized Aluminum

Premium Fire-Rated Door Sealing Solution

The NGP High Temperature Nylon Brush Plus Perimeter Seal delivers professional-grade air infiltration protection with exceptional temperature resistance from -70 F to 425 F. This 48" anodized aluminum seal features 7/16" high temperature nylon brush construction using aluminum alloy 6063 T5 temper for demanding commercial applications. REACH and RoHS compliant with excellent abrasion resistance and flexibility for long-term performance.

Professional Features & Benefits

  • Extreme Temperature Range: Operates reliably from -70 F to 425 F for applications requiring high temperature resistance and thermal cycling durability.
  • Premium Construction: Aluminum alloy 6063 T5 temper with synthetic polyamide brush material provides exceptional strength and dimensional stability.
  • Superior Sealing Performance: Specially formulated premium grade seals provide maximum protection against air infiltration while maintaining excellent flexibility and memory.
  • Moisture and Chemical Resistance: Moisture resistant construction retains insecticides well and resists environmental degradation in demanding conditions.
  • Fire Code Compliance: Designed for fire-rated applications meeting IBC, NFPA 80, NFPA 105, and NFPA 252 requirements for meeting edge gaps not exceeding 1/8".
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment with included #6 x 3/4" stainless steel sheet metal screws.
  • Environmental Compliance: REACH and RoHS compliant materials ensure regulatory compliance for commercial installations.
  • Complete Set Configuration: Order as set to receive two pieces for complete door pair sealing applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Fire-Rated Door Assemblies
  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Manufacturing Facilities
  • High-Temperature Environment Applications
  • Multi-Tenant Residential Properties

Why Choose NGP Quality?

NGP perimeter seals deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and premium grade synthetic polymer materials rated for extreme temperature performance from -70 F to 425 F. REACH and RoHS compliant materials with excellent abrasion resistance ensure dependable long-term performance. Engineered for demanding commercial applications where fire code compliance and superior air infiltration protection are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 9605A 48 – Frequently Asked Questions

1) Can a nylon brush perimeter seal handle a high heat area like a boiler room or kitchen door?
The 9605A brush seal is rated from -70 F to 425 F, which covers mechanical rooms, kitchens and industrial areas where a vinyl or rubber bulb seal would soften or take a set. The extrusion is 6063 T5 aluminum alloy and the brush filament is synthetic polyamide, both of which hold their shape through thermal cycling. It is also moisture resistant, so wash-down and exterior-facing openings are fair game.
2) What is the difference between the NGP 9605A perimeter seal and the Cal-Royal PG-601 perimeter gasketing?
Both are aluminum-channel perimeter gasketing that mounts to the stop of the frame, but they seal with different media. The NGP 9605A uses a 7/16 inch high temperature nylon brush in an anodized aluminum carrier, rated from -70 F to 425 F, which is the reason it is specified on fire-rated assemblies and in high-heat rooms where a compressible seal would take a set. The Cal-Royal PG-601 is an aluminum channel carrying a vinyl insert, so it seals by compression against the door face. Choose the brush when the opening sees heat, thermal cycling, or abrasion from constant traffic; choose the vinyl insert when you want a positive compression seal on a normal-temperature interior or exterior opening.
3) Can I use Cal-Royal PG-601 gasketing on a fire-rated door instead of NGP 9605A?
Look at what the opening is being sealed against before swapping. The NGP 9605A is built for fire-rated work: NGP states it is designed to meet IBC, NFPA 80, NFPA 105, and NFPA 252 requirements for meeting edge gaps not exceeding 1/8 inch, and the nylon brush holds its shape through a -70 F to 425 F range. The Cal-Royal PG-601 is aluminum channel gasketing with a vinyl insert, so it is the right tool for weather and air sealing on a standard opening rather than a substitute where a listed fire assembly and a rated gap are what the drawing calls for. On a labeled door, keep the seal that the fire listing and the gap requirement are written around.
4) Should I use a brush seal or a vinyl insert gasket on my door frame?
Brush and vinyl do different jobs. The 9605A uses a 7/16 inch nylon brush, which sweeps rather than compresses, so it tolerates an irregular or out-of-plumb gap, doesn't bind a door that already drags, and survives from -70 F to 425 F. A vinyl-insert channel gasket like the Cal-Royal PG-601 compresses against the stop for a tighter seal on a well-hung door, but vinyl is the wrong material where heat is the issue. Pick the brush for high temperature, high cycle or sloppy-gap openings; pick vinyl where you want maximum air seal on a door that closes true.
5) What comes with the NGP 9605A seal, and do I need to buy fasteners separately?
Fasteners are included. Each 9605A carrier ships with #6 x 3/4 inch stainless steel sheet metal screws, and the screw holes are slotted so you can shift the piece in or out to set brush contact after it's up. Nothing else is required beyond a drill and a hacksaw or miter saw if you need to cut it down.
6) I need to seal the bottom of the door, not the perimeter. Is the NGP 9605A the right part?
The 9605A is a 7/16 inch nylon brush seal in a 48 inch anodized aluminum carrier that mounts to the frame stop to close the perimeter gap around the head and jambs. If the gap you are closing is under the door leaf, the Cal-Royal PG-601 sits in the door shoe family, which is the group of parts that attach to the bottom rail of the door itself. A perimeter seal and a door bottom are complementary rather than interchangeable, so on an opening that leaks at both the jambs and the threshold you are buying two parts, not choosing between them.
7) Does the anodized aluminum finish on the NGP 9605A hold up on exterior and washdown openings?
Anodized aluminum is the only finish the 9605A is offered in, and it is the right one for exterior perimeter work. The 6063 T5 extrusion is moisture resistant and the nylon filament is specified for abrasion resistance and memory, meaning it springs back rather than laying over after repeated door swings. NGP also lists the materials as REACH and RoHS compliant, which is what institutional and government specs usually ask for.
8) Is this NGP brush seal rated for commercial buildings or is it a residential weatherstrip?
Strictly commercial. NGP classifies the 9605A as a commercial product, and the applications it is built for are fire-rated door assemblies, offices, schools, healthcare, industrial plants and multi-tenant residential buildings. The 425 F upper limit and the 6063 T5 aluminum carrier are specification-grade, not the foam-and-vinyl weatherstrip sold for a house.
