NGP 9605A SET 7/16" Fire-Rated...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$504.84

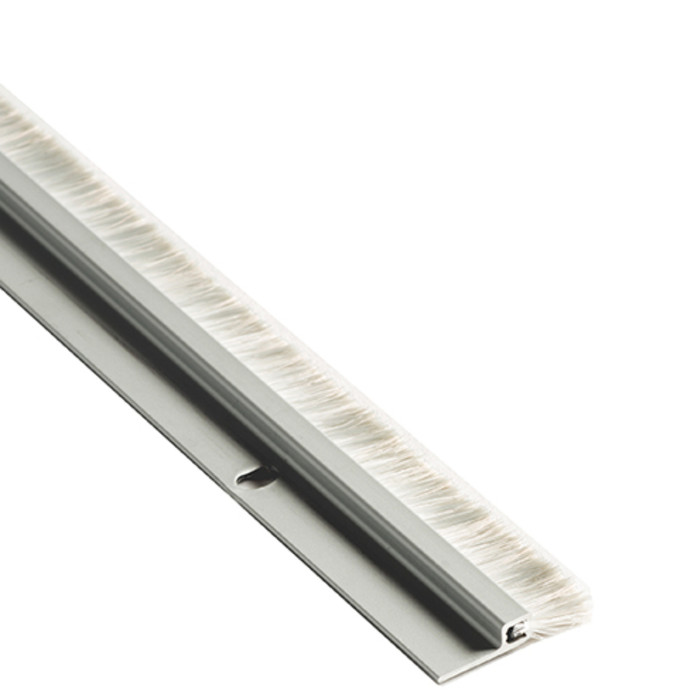

NGP NGP 9605A (SET) 7/16" Astragal with High Temperature Nylon Brush Plus Seal NGP-9605A SET

NGP 9605A SET 7/16" Fire-Rated Astragal Set with High Temperature Nylon Brush Plus Seal

(No reviews yet) Write a Review

Model: 9605A 84 SET

In Stock (leaves warehouse same day if ordered before 3pm ET)

$504.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 7/16" Fire-Rated Astragal Set with High Temperature Nylon Brush Plus Seal

Premium Fire-Rated Door Sealing Solution

The NGP 7/16" Fire-Rated Astragal Set delivers professional-grade door sealing performance with high temperature nylon brush plus seal technology. Constructed from aluminum alloy 6063 T5 temper with synthetic polyamide polymer components, this astragal set provides maximum protection against air infiltration while meeting fire code requirements. The premium grade seals are specially formulated to withstand temperature extremes from -70 F to 425 F, ensuring reliable performance in demanding commercial applications.

Professional Features & Benefits

  • 7/16" Profile Dimension: Precisely engineered 7/16" astragal profile designed for optimal door gap sealing and fire-rated applications.
  • Extreme Temperature Performance: Operates reliably from -70 F to 425 F for versatile installation environments and climate conditions.
  • Premium Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional durability and corrosion resistance for long-term commercial use.
  • High-Performance Seal Technology: Synthetic polyamide polymer brush plus seal offers excellent abrasion resistance, flexibility, and memory retention.
  • Fire Code Compliance: Meets IBC, NFPA 80, NFPA 105, and NFPA 252 requirements for fire-rated door applications with proper gap specifications.
  • Adjustable Installation: Slotted screw holes allow for precise positioning and alignment during installation for optimal sealing performance.
  • Complete Set Configuration: Ordered as set to receive two pieces with #6 x 3/4" stainless steel sheet metal screws included.
  • Environmental Compliance: REACH and RoHS compliant materials ensure regulatory compliance for commercial installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Astragals
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Fire-Rated Commercial Door Systems
  • Educational Facility Fire Doors
  • Healthcare Institution Fire Barriers
  • Multi-Tenant Residential Fire Doors
  • Industrial Facility Fire-Rated Openings
  • Government Building Fire Code Compliance
  • High-Rise Building Fire Safety Systems

Why Choose NGP Quality?

NGP astragal products deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and premium grade seals engineered for extreme temperature operation from -70 F to 425 F. REACH and RoHS compliant materials ensure regulatory compliance while providing excellent abrasion resistance, flexibility, and memory retention. Engineered for demanding commercial fire-rated applications where code compliance and reliable sealing performance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Astragals
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 9605A 84 SET – Frequently Asked Questions

1) Will the NGP 9605A astragal set work on a fire-rated pair of doors?
The 9605A is a fire-rated astragal set, and it is built to meet IBC, NFPA 80, NFPA 105, and NFPA 252 requirements on fire-rated openings when the door gap specifications are met. The seal material is rated from -70 F to 425 F, which is what lets it hold up in that application. It ships as a set of two pieces, one for each leaf of the pair.
2) How many pieces come in an NGP 9605A SET and do I need to order two for a pair of doors?
One set covers the whole pair. Ordering the 9605A as a set gets you two pieces plus #6 x 3/4 inch stainless steel sheet metal screws for mounting, so a single set finishes one double-door opening. You do not order two sets for one pair.
3) I need an astragal that a mortise lock passes through. Is the NGP 9605A the right part?
No. The 9605A is a full-height gasketing astragal for sealing the meeting stiles of a pair, not a lock astragal. If you are covering the gap at a lockset, the Trimco 5001 stainless steel lock astragal is made for mortise or cylindrical locks, and the Trimco 5002 (1-9/16 x 6 inches) is for cylindrical locks. Those are short plates at the lock, a different part than what the 9605A does.
4) What is the closest equivalent to the NGP 9605A astragal set from another manufacturer?
The Pemko 369 split astragal seal is the nearest peer. It is a fire-rated aluminum split astragal with a pile brush insert in a 13/32 inch by 11/32 inch profile, so it fills the meeting-stile gap on a pair of doors the same way the NGP 9605A does with its 7/16 inch profile and high temperature nylon brush plus seal. Both are gasketing-type astragals rather than lock astragals, and the NGP 9605A ships as a set of two pieces with #6 x 3/4 inch stainless steel sheet metal screws.
5) The gap between my double doors varies from top to bottom - what astragal handles that better than a fixed 7/16 inch profile?
The Pemko 300 Series adjustable astragal is built for that condition. It is an adjustable astragal with a self-adjusting pile brush for double doors, so the seal takes up a gap that is not consistent along the height of the meeting stiles. The NGP 9605A is a fixed 7/16 inch profile with slotted screw holes for positioning during installation, which suits an opening where the meeting-stile gap is uniform.
6) Is a Trimco 5001 lock astragal a substitute for the NGP 9605A?
No - they solve different problems. The Trimco 5001 is a stainless steel lock astragal used with mortise or cylindrical locks; it is a short piece that covers the latch area and protects against manipulation of the bolt. The NGP 9605A is a full-height sealing astragal set, aluminum alloy 6063 T5 with a high temperature nylon brush plus seal rated from -70 F to 425 F, ordered in 84 inch, 96 inch and 108 inch lengths to run the height of the meeting stile. If the requirement is air infiltration and fire code gap sealing, the 5001 does not do that job.
7) For a fire-rated pair of doors, which astragals in this group are actually fire-rated?
The NGP 9605A set is stated to meet IBC, NFPA 80, NFPA 105 and NFPA 252 requirements for fire-rated door applications with proper gap specifications, and the Pemko 369 split astragal is described as an aluminum fire-rated astragal seal with a pile brush insert. Those are the two in the group carrying a fire-rated description. The Cal-Royal EAST-501 T-astragal and the Pemko 300 Series adjustable astragal are described for double-door sealing, and the Trimco 5001 and 5002 are lock astragals for use with mortise or cylindrical locks.
8) What does the 7/16 inch on the NGP 9605A astragal refer to?
That is the profile dimension of the astragal itself, the 7/16 inch section that carries the brush seal across the meeting stiles. It is the number that decides whether the astragal closes the gap between your two leaves without binding the doors, so check it against the actual gap you are sealing before you order.
9) Can I adjust the NGP 9605A astragal after it is mounted to get the doors to close right?
Slotted screw holes in the 9605A let you shift the astragal for position and alignment as you set it, so you can dial in the seal contact instead of being locked to the first pilot hole. That matters on a pair where the leaves are not perfectly plumb.
10) Is a brush astragal or a vinyl one better for a double door that gets heavy traffic?
Different jobs. The NGP 9605A uses a synthetic polyamide polymer brush plus seal, chosen for abrasion resistance, flexibility, and memory retention, so it takes repeated door swings and returns to shape. A vinyl-insert astragal like the Cal-Royal EAST-501 T-astragal is the other approach for double doors. On a fire-rated opening the 9605A is the one that carries the fire-rated designation.
11) Will the NGP 9605A astragal hold up in an unconditioned space or on an exterior fire door?
Temperature is not the limit here. The seals run from -70 F to 425 F, and the extrusion is aluminum alloy 6063 T5 temper, which gives it corrosion resistance for commercial service. It is specified as a commercial-duty product, so mechanical rooms, loading areas, and stair openings are within what it is built for.
12) Do I need extra fasteners to install the NGP 9605A astragal set?
No, the mounting screws come with it. Each set includes #6 x 3/4 inch stainless steel sheet metal screws, so for a hollow metal or wood pair you are covered out of the box. The set is two pieces, one per leaf.
13) What is the difference between the Trimco 5001 and 5002 lock astragals if I only need to protect the latch on a pair of doors?
Both are stainless steel lock astragals. The Trimco 5002 is a 1-9/16 inch by 6 inch piece for use with cylindrical locks, while the 5001 is specified for use with mortise or cylindrical locks. Pick by the lock already in the door. Neither one seals the meeting stile - that is the job of a full-length gasketing astragal such as the NGP 9605A set with its nylon brush plus seal.
14) I need a T-astragal with a vinyl seal instead of a brush - what should I order?
The Cal-Royal EAST-501 is an aluminum T-astragal with a vinyl insert for double doors, so the seal contacts the opposite leaf as a vinyl bulb rather than a brush. The NGP 9605A uses a synthetic polyamide polymer brush plus seal instead, formulated for -70 F to 425 F service and abrasion resistance where the doors cycle heavily. Choose vinyl for a compression seal against air infiltration, brush where the seal has to sweep across the mating surface repeatedly.
15) My door pair already has a split astragal on both leaves - can I match it with the NGP 9605A?
Yes, in principle - the NGP 9605A is ordered as a set of two pieces, one for each leaf, which is the same two-piece arrangement as the Pemko 369 split astragal seal with pile brush insert. The profiles differ: the NGP 9605A is a 7/16 inch profile in aluminum alloy 6063 T5 with a nylon brush plus seal, and the Pemko 369 is 13/32 inch by 11/32 inch aluminum with a pile brush. Confirm the meeting-stile gap and the existing screw pattern before mixing brands across a pair; the NGP slotted screw holes give some latitude on alignment.
16) Do the NGP 9605A astragal materials meet REACH and RoHS for a government or healthcare spec?
REACH and RoHS compliant materials are used throughout the 9605A set, which covers the material-restriction line item most institutional and government specs carry. Combined with the IBC and NFPA 80 / 105 / 252 fire compliance, it answers both halves of a typical fire-door gasketing spec.
