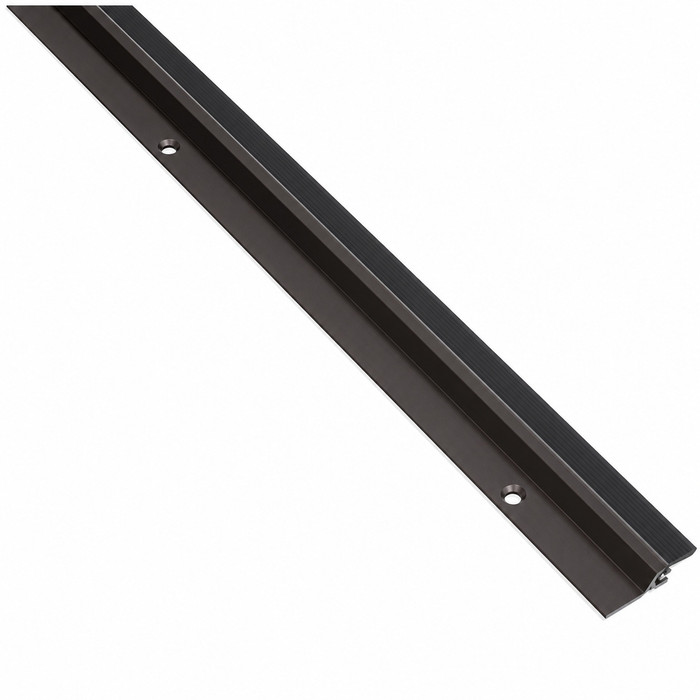

NGP NGP 9600DKB High Temperature Nylon Brush Plus Perimeter Seal / Sweep, 96", Dark Bronze NGP-9600DKB

NGP 9600DKB High Temperature Nylon Brush Plus Perimeter Seal 96" Dark Bronze with Premium Weather Protection

(No reviews yet) Write a Review

Model: 9600DKB
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$167.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP High Temperature Nylon Brush Plus Perimeter Seal 96" Dark Bronze with Premium Weather Protection

Professional Weather Sealing Solution for Extreme Temperature Applications

The NGP High Temperature Nylon Brush Plus Perimeter Seal delivers superior weather protection with a 96" length and dark bronze finish. Constructed from aluminum alloy 6063 T5 temper with synthetic polyamide polymer, this premium-grade seal withstands temperature extremes from -70 F to 425 F while providing maximum protection against air infiltration. The moisture-resistant design offers excellent abrasion resistance, flexibility, and memory for long-lasting performance in demanding commercial applications.

Professional Features & Benefits

  • Extreme Temperature Performance: Engineered to operate in temperatures ranging from -70 F to 425 F for reliable performance in harsh environmental conditions.
  • Premium Construction Materials: Aluminum alloy 6063 T5 temper frame with synthetic polyamide polymer brush provides exceptional durability and longevity.
  • Superior Weather Protection: Maximum protection against air infiltration with excellent abrasion resistance, flexibility, and memory retention.
  • Moisture-Resistant Design: Specially formulated to resist moisture while retaining insecticides well for comprehensive protection.
  • Adjustable Installation: Slotted screw holes allow for precise positioning adjustment during installation for optimal sealing performance.
  • Complete Hardware Included: Furnished with #6 x 3/4" stainless steel sheet metal screws for secure mounting.
  • Environmental Compliance: REACH and RoHS compliant materials ensure environmental responsibility and regulatory compliance.
  • Professional Finish: Dark bronze finish provides attractive appearance while maintaining corrosion resistance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gasketing
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Manufacturing Facilities
  • High-Temperature Environment Applications
  • Extreme Weather Exposure Locations
  • Multi-Tenant Residential Properties

Fast Attach Tape Option

Optional FATT (Fast Attach Tape) available for applications requiring adhesive mounting solutions, providing installation flexibility for various door configurations and mounting requirements.

Why Choose NGP Quality?

NGP perimeter seals deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and synthetic polyamide polymer materials rated for extreme temperature performance from -70 F to 425 F. REACH and RoHS compliant materials ensure environmental responsibility while providing maximum protection against air infiltration. Engineered for demanding commercial applications where dependable weather sealing performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gasketing
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 9600DKB – Frequently Asked Questions

1) Will the NGP 9600DKB brush seal hold up in a boiler room or mechanical space that gets very hot?
Yes. The 9600 brush seal is rated from -70 F to 425 F, which covers boiler rooms, mechanical spaces and industrial areas well beyond what a vinyl or silicone bulb gasket tolerates. The brush itself is a synthetic polyamide polymer and the retainer is 6063 T5 aluminum, so neither element softens or goes brittle across that range.
2) Brush seal or vinyl bulb gasket, which should I use on my door perimeter?
Brush suits doors that move a lot or drag slightly. The nylon brush wipes rather than compresses, so it tolerates abrasion, keeps its memory, and does not take a set the way a bulb can on a high-traffic opening. It also handles -70 F to 425 F. A vinyl insert gasket, like the Cal-Royal PG-601 aluminum channel perimeter gasketing with vinyl insert, gives a tighter contact seal for air infiltration on a door that closes squarely and stays in a normal temperature range. Pick brush for heat, grit and heavy use; pick vinyl for a quieter, tighter seal on a conditioned interior or standard exterior opening.
3) What is the difference between the NGP 9600DKB brush perimeter seal and a vinyl-insert perimeter gasket like the Cal-Royal PG-601?
Both mount to the frame perimeter to seal the gap around a door, but the sealing element is different. The NGP 9600DKB uses a synthetic polyamide polymer brush in an aluminum alloy 6063 T5 carrier, rated from -70 F to 425 F, with excellent abrasion resistance and memory. The Cal-Royal PG-601 is an aluminum channel perimeter gasketing that seals with a vinyl insert. A brush seal sweeps against the door face and tolerates irregular or warped doors and heavy cycling, while a compressible vinyl bulb bears directly on the stop for a tighter contact seal on a true, well-aligned opening.
4) For a high-heat door such as a boiler room or an oven-adjacent opening, should I use the NGP 9600DKB or the Cal-Royal PG-601?
The NGP 9600DKB is the one written for heat. Its brush is a synthetic polyamide polymer in an aluminum alloy 6063 T5 carrier rated for continuous service from -70 F to 425 F, which is why it is specified for industrial and manufacturing facilities and high-temperature environments. The Cal-Royal PG-601 is an aluminum channel gasket with a vinyl insert; vinyl is a softer sealing element and is the more typical choice for ordinary interior and exterior openings rather than extreme-temperature service.
5) How long is the NGP 9600DKB perimeter seal, and can I cut it down for a standard door?
It comes as a 96 inch stick in dark bronze. That length is sized to run a full head and jamb job: on a standard 80 inch opening, one 96 inch piece covers a single jamb with drop, and you would typically buy per-run rather than per-door. The aluminum retainer cuts cleanly with a hacksaw or chop saw, so trimming to your head and jamb dimensions on site is normal practice.
6) Do I get fasteners with the NGP 9600 brush seal, or do I have to supply my own screws?
Screws are included. Each piece ships with #6 x 3/4 inch stainless steel sheet metal screws. The holes in the aluminum retainer are slotted, so you can set the screws loosely, slide the strip in or out to set brush contact against the door face, then tighten. Stainless fasteners also keep you from getting rust streaks down a bronze frame in exterior or wash-down locations.
7) Can I install this NGP perimeter seal without drilling into the frame?
There is an adhesive route. NGP offers the 9600 with optional FATT, Fast Attach Tape, for openings where you cannot or do not want to drill, such as an existing aluminum storefront frame or a finished hollow metal frame you would rather not perforate. Specify FATT when you order if you want the taped version; the standard product is screw-applied with the slotted holes.
8) Will this NGP brush seal keep bugs and blowing dust out of a warehouse door?
That is one of its normal uses. The polyamide brush is moisture resistant and retains insecticides well, and the dense brush face blocks air infiltration along the head and jambs where light gaps let insects and windblown dust through. On an industrial or manufacturing opening it is a common pairing with a door bottom or sweep to close the perimeter all the way around.
9) Will the Cal-Royal PG-601 work as a drop-in replacement for an NGP 9600DKB perimeter seal?
Treat it as a different part rather than a drop-in. Both are surface-applied aluminum perimeter gasketing, but the NGP 9600DKB is a 96 inch dark bronze brush seal with slotted screw holes for positional adjustment and comes with #6 x 3/4 inch stainless steel sheet metal screws, while the Cal-Royal PG-601 is an aluminum channel with a vinyl insert. The carrier profile, the projection of the sealing element onto the door face, and the finish match to existing frame hardware all differ, so on a job where several openings already carry the 9600DKB, staying with the NGP part keeps the appearance and the seal contact consistent.
10) My exterior door is slightly warped and vinyl weatherstripping keeps dragging. What should I use instead?
A brush seal is the usual answer for a door that is out of plane. The NGP 9600DKB carries a synthetic polyamide polymer brush that flexes across an uneven door face and returns to shape, with abrasion resistance and memory called out specifically, and the slotted screw holes let you dial in the projection at each jamb during install. A rigid vinyl-insert gasket such as the Cal-Royal PG-601 bears on the stop through a fixed insert, which is what causes the drag when the door is not true.
11) Is the dark bronze finish on this NGP seal going to hold up outside?
The dark bronze finish is applied over 6063 T5 aluminum, which is corrosion resistant, and the included screws are stainless steel. That combination is appropriate for exterior perimeter use and it matches dark bronze storefront and hollow metal frames commonly used on commercial buildings. Dark bronze is the finish this particular seal is supplied in.
12) Is the NGP 9600 rated for commercial use or is it a residential weatherstrip?
It is a commercial-duty product, listed for commercial rather than residential applications, and specified on office buildings, schools, healthcare facilities, industrial plants and multi-tenant residential properties. For a facilities or MRO buyer standardizing across a campus, it is the same part number and finish on every opening, which keeps the stockroom simple.
13) Are NGP brush seals acceptable for projects with environmental material requirements?
The materials in the 9600 brush seal are REACH and RoHS compliant, which is what most institutional and government specs are asking for when they call out restricted-substance language on finish hardware and gasketing submittals.
