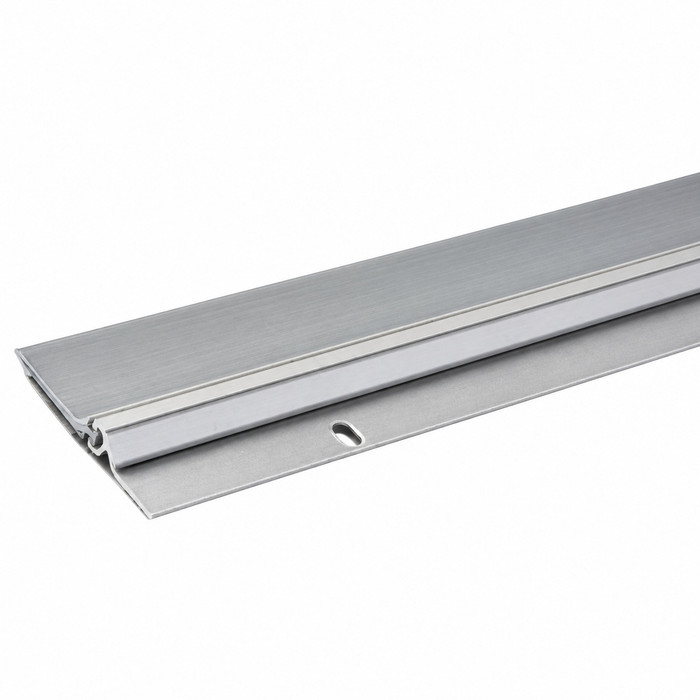

NGP NGP 97VA (SET) Vinyl Surface Mounted Astragal Seal Set, Anodized Aluminum NGP-97VA SET

NGP 97VA SET Vinyl Surface Mounted Astragal Seal Set with Anodized Aluminum Construction

(No reviews yet) Write a Review

Model: 97VA 84 SET

In Stock (leaves warehouse same day if ordered before 3pm ET)

$417.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Vinyl Surface Mounted Astragal Seal Set with Anodized Aluminum Construction

Professional Door Sealing Solution for Commercial Applications

The NGP Vinyl Surface Mounted Astragal Seal Set delivers reliable door sealing performance with aluminum alloy 6063 T5 temper construction and thermoplastic polyvinyl chloride (PVC) sealing elements. This economical two-piece set operates effectively in temperatures from 0 F to 140 F and features anodized aluminum finish with gray vinyl sealing components. Each set includes #6 x 3/4" stainless steel mounting screws with slotted holes for precise adjustment during installation.

Professional Features & Benefits

  • Temperature Performance Range: Operates reliably from 0 F to 140 F for versatile climate applications and seasonal temperature variations.
  • Heavy-Duty Aluminum Construction: Aluminum alloy 6063 with T5 temper provides exceptional durability and corrosion resistance for long-term commercial use.
  • Environmentally Friendly Formulation: Thermoplastic PVC formulated with bio-based plasticizer reduces environmental impact while maintaining performance characteristics.
  • Flame and Moisture Resistant: Advanced material composition provides flame resistance and moisture protection for enhanced safety and durability.
  • Adjustable Installation System: Slotted screw holes allow precise positioning adjustment during installation for optimal sealing performance.
  • Complete Hardware Package: Includes #6 x 3/4" stainless steel mounting screws for secure attachment to door surfaces.
  • Two-Piece Set Configuration: Order as complete set to receive both astragal pieces for full door sealing coverage.
  • Optional Fast Attach Tape: FATT (Fast Attach Tape) option available for alternative mounting applications where appropriate.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Astragals
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP astragal seal products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction and environmentally friendly PVC formulation rated for 0 F to 140 F temperature performance. The flame and moisture resistant design with adjustable mounting system ensures dependable sealing performance in demanding commercial applications where consistent door weatherization is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Astragals
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 97VA 84 SET – Frequently Asked Questions

1) How does the NGP 97VA astragal mount to the door, and are screws included?
Surface mounted with screws, and the fasteners come in the box: #6 x 3/4 inch stainless steel. The screw holes are slotted, so you can shift the piece slightly as you set it to close the gap evenly before you tighten down. If you'd rather not drill the door face, NGP offers a Fast Attach Tape (FATT) option for adhesive mounting instead.
2) Do I need to order two pieces of the NGP 97VA for a double door, or is one enough?
One order of the 97VA SET is a two-piece set, so it covers both leaves of the pair. You do not add a second one. Order by the length that matches your door height.
3) What is the difference between the NGP 97VA astragal set and the Trimco 5001 lock astragal?
They solve different problems on a pair of doors. The NGP 97VA is a surface mounted vinyl astragal seal set in aluminum alloy 6063 T5 temper, sold as a two-piece set with gray vinyl sealing elements and #6 x 3/4 inch stainless steel screws, and it runs the full height of the meeting stiles in 84 inch, 96 inch, and 120 inch lengths. The Trimco 5001 is a stainless steel lock astragal made for use with mortise or cylindrical locks, covering the gap at the lock area rather than sealing the whole meeting edge. If the goal is weatherization and light or sound blockage down the full seam, the 97VA set is the full-length approach; if the goal is a metal cover at the lock, the 5001 is the lock astragal.
4) What is the closest equivalent to the NGP 97VA astragal set from another manufacturer?
The Cal-Royal EAST-501 is the nearest match in construction: an aluminum T-astragal with a vinyl insert for double doors, the same aluminum-extrusion-plus-vinyl-seal approach the NGP 97VA set uses with its aluminum alloy 6063 T5 temper body and thermoplastic PVC sealing elements. The difference is configuration. The EAST-501 is a T-astragal, a single member that projects from one leaf to overlap the other. The 97VA ships as a two-piece set, one piece per leaf, and comes in 84 inch, 96 inch, and 120 inch lengths. Confirm which side of the pair carries the hardware before swapping, because a T-astragal mounts to one leaf only.
5) My meeting stiles are out of alignment - what astragal handles an uneven gap better than the NGP 97VA?
The Pemko 300 Series adjustable astragal is built for that condition. It is an adjustable astragal with a self-adjusting pile brush for double doors, so the brush takes up variation in the gap along the height without needing the leaves to sit true. The NGP 97VA set does offer adjustment at install through slotted screw holes, which let each piece be positioned precisely as it is fastened, but that is a one-time setting, not an ongoing self-adjusting seal. On a pair that has racked or settled, the 300 Series is the better answer; on a pair that hangs true and just needs the seal set right the first time, the slotted holes on the 97VA are enough.
6) Is the NGP 97VA astragal suitable for an exterior door that sees winter cold and summer heat?
Rated 0 F to 140 F, so it holds up through a normal seasonal swing in most of the country. The extrusion is 6063 aluminum in T5 temper with an anodized finish, which is the usual combination for exterior door weatherstripping, and the PVC seal is flame and moisture resistant. If your site regularly drops below 0 F, that's outside the stated range.
7) What is the difference between a vinyl astragal like the NGP 97VA and a brush or pile astragal?
The 97VA seals with a gray thermoplastic PVC element that wipes against the mating door. Vinyl gives you a positive contact seal against air and moisture and it's what you want on an exterior or conditioned opening. A pile brush astragal, like the Pemko 300 Series adjustable astragal or the Pemko 369 split astragal, sweeps smoke and dust and closes an uneven gap with less drag, which suits doors that bind or are out of alignment. Pick vinyl for weather, pile for tolerance to a sloppy gap.
8) What's a comparable T-astragal with a vinyl insert if the NGP 97VA doesn't suit the opening?
The Cal-Royal EAST-501 is an aluminum T-astragal with a vinyl insert for double doors, the same vinyl-seals-against-aluminum approach in a T profile. Where the 97VA is a surface mounted set covering both leaves, a T-astragal mounts on one leaf and the T section laps the gap. Choose by which leaf you can drill and how the pair swings.
9) Can I use the NGP 97VA astragal to cover the gap at a cylindrical lock?
That is not what it is built for. The 97VA is a full-height surface mounted vinyl astragal seal set, supplied in 84 inch, 96 inch, and 120 inch lengths as a two-piece set with an aluminum alloy 6063 T5 body and PVC sealing elements, intended to seal the meeting stiles for their whole run. For a short metal astragal at the lock itself, the Trimco 5002 lock astragal is stainless steel and measures 1-9/16 inch by 6 inch, made for use with cylindrical locks, and the Trimco 5001 lock astragal in stainless steel covers mortise or cylindrical locks. Those are lock-area parts; the 97VA is a weatherseal for the full meeting edge.
10) For standardizing astragals across a facility, how does the NGP 97VA compare to the Pemko 369?
Both are two-piece style astragal seals for the meeting stiles of a pair. The NGP 97VA is a commercial-rated surface mounted vinyl astragal seal set in aluminum alloy 6063 T5 temper, with a thermoplastic PVC element rated 0 F to 140 F, described as flame and moisture resistant, offered in 84 inch, 96 inch, and 120 inch lengths and shipped with #6 x 3/4 inch stainless steel screws. The Pemko 369 is a split astragal seal, aluminum, fire-rated, with a pile brush insert and a 13/32 inch by 11/32 inch profile. A facility with a mix of rated and non-rated pairs typically standardizes the rated openings on the 369 and can run the 97VA across the non-rated exterior and interior pairs where the temperature range and vinyl contact seal suit the application.
11) Vinyl or brush astragal for a double door - which should I use?
The NGP 97VA set uses a thermoplastic PVC sealing element formulated with a bio-based plasticizer, rated to operate from 0 F to 140 F, with slotted screw holes so the seal position can be dialed in at install. Vinyl gives a continuous contact seal against the mating leaf. The brush alternatives among comparable astragals are the Pemko 300 Series adjustable astragal, which uses a self-adjusting pile brush for double doors, and the Pemko 369 split astragal seal, which carries a pile brush insert. Pile brush tolerates a meeting stile gap that varies along the height and sweeps rather than compresses; vinyl bears directly on the opposing leaf. Doors that see heavy traffic and go out of alignment are the usual case for brush, and doors where a firm continuous seal matters are the usual case for vinyl.
12) Is the NGP 97VA astragal a commercial-duty part or a residential weatherstrip?
Built for commercial openings, and the material bears that out: 6063 T5 aluminum extrusion with an anodized finish and stainless mounting screws, which is what you put on office, school, healthcare, retail and municipal doors that cycle all day. Property managers standardizing across a building can spec the same profile on every pair and just change the length.
13) What finish is the NGP 97VA astragal, and will it match aluminum storefront doors?
Anodized aluminum extrusion with gray vinyl seal. That clear-anodized look sits alongside standard aluminum storefront and hollow metal frames without standing out, and the visible face is the aluminum, with the gray vinyl tucked at the meeting edge.
14) What is the difference between the Trimco 5001 and 5002 lock astragals when either could pair with the NGP 97VA?
Both are stainless steel lock astragals. The Trimco 5002 is stated at 1-9/16 inch by 6 inch and is made for use with cylindrical locks. The Trimco 5001 is described for use with mortise or cylindrical locks, so it covers the mortise case as well. The NGP 97VA is a different class of part entirely - a full-height vinyl astragal seal set in anodized aluminum that runs the meeting stiles in 84 inch, 96 inch, or 120 inch lengths. A distributor sorting these should treat the Trimco parts by lock type served and the NGP part by opening height.
