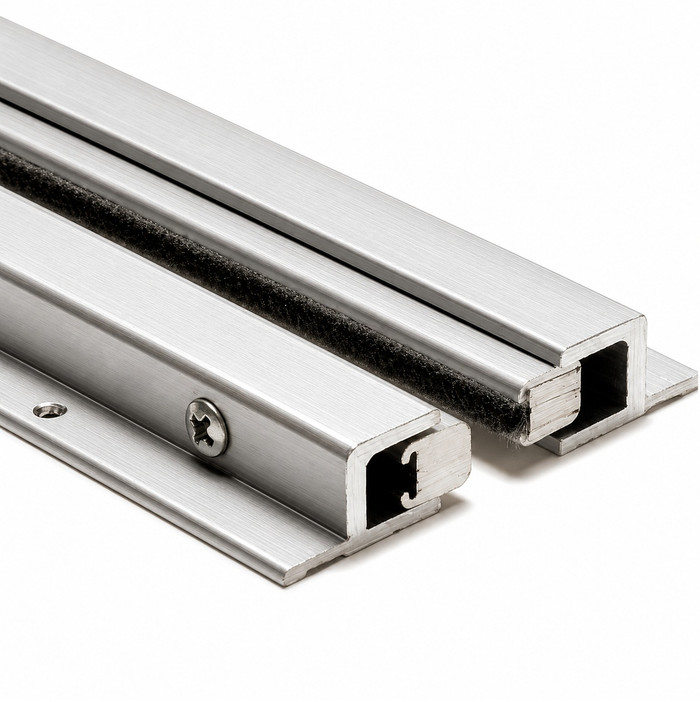

NGP NGP 140PA (SET) Spring Loaded Pile Astragal, Anodized Aluminum NGP-140PA SET

NGP 140PA SET Spring Loaded Pile Astragal Set with Anodized Aluminum Construction

(No reviews yet) Write a Review

Model: 140PA 84 SET

In Stock (leaves warehouse same day if ordered before 3pm ET)

$783.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Spring Loaded Pile Astragal Set with Anodized Aluminum Construction

Professional Door Sealing Solution for Commercial Applications

The NGP Spring Loaded Pile Astragal Set delivers superior door sealing performance with aluminum alloy 6063, T5 temper construction and anodized aluminum finish. This two-piece astragal set features spring-loaded operation to maintain constant pressure for effective sealing, with adjustment screws on 10" centers for precise seal positioning. Fire rated for up to 3 hours on metal doors and 20 minutes on wood doors, making it ideal for commercial door applications requiring reliable weatherproofing and fire protection.

Professional Features & Benefits

  • Spring-Loaded Design: Maintains constant pressure against door surfaces for the most effective seal throughout door operation cycles.
  • Adjustable Mounting System: Adjustment screws positioned on 10" centers allow seal adjustment without re-positioning the mounting location for precise fit.
  • Fire Rating Performance: Rated for up to 3 hours on metal doors and 20 minutes on wood doors for code compliance in fire-rated openings.
  • Durable Aluminum Construction: Aluminum alloy 6063, T5 temper provides exceptional strength and corrosion resistance for long-term performance.
  • Complete Two-Piece Set: Provided as a complete set for full door coverage with consistent sealing performance across the entire opening.
  • Professional Grade Materials: Anodized aluminum finish with gray polypropylene pile provides weather resistance and professional appearance.
  • Commercial Application Ready: Engineered specifically for commercial door applications requiring reliable weatherproofing and fire protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Astragals
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP astragal products deliver professional-grade reliability with aluminum alloy 6063, T5 temper construction and anodized aluminum finish for demanding commercial applications. Fire rated performance up to 3 hours on metal doors ensures code compliance while spring-loaded design maintains consistent sealing effectiveness. Engineered for demanding commercial applications where dependable weatherproofing and fire protection performance is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Astragals
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 140PA 84 SET – Frequently Asked Questions

1) Will the NGP 140PA astragal set work on a pair of doors, or is it for a single door?
The 140PA is supplied as a two-piece set, one piece for each leaf, so it is meant for a pair of doors. Spring-loaded pile on each half meets at the meeting stile and keeps pressure on the gap as the leaves move. For a single door opening you would be buying twice the material you need.
2) Can I use the NGP 140PA pile astragal on a fire rated opening?
Yes. The 140PA carries a fire rating of up to 3 hours on metal doors and 20 minutes on wood doors. That covers most labeled hollow metal pairs in a commercial corridor, but on a wood pair you are limited to a 20 minute opening, so a 45 or 90 minute wood pair needs a different seal.
3) Can I adjust the seal after the astragal is mounted, or do I have to re-drill?
Adjustment screws are set on 10 inch centers, so you can move the seal in or out to close a gap without pulling the astragal off and re-drilling the mounting holes. That matters on an old pair where the leaves have racked and the gap is wider at the top than the bottom, you dial each section in separately.
4) Is the NGP 140PA the same thing as a lock astragal that covers the latch?
No. The 140PA is a gasketing astragal, aluminum with a gray polypropylene pile, made to seal the gap between two leaves. It does not shield a lock. If you need a security plate over the meeting stile at the latch, that is a lock astragal such as the Trimco 5001 in stainless for mortise or cylindrical locks, or the Trimco 5002 at 1-9/16 by 6 inches for cylindrical locks.
5) What is the closest equivalent to the NGP 140PA astragal set from another manufacturer?
The Pemko 300 Series adjustable astragal is the nearest match in concept. Like the NGP 140PA, it is an adjustable astragal that seals a double door pair with pile brush rather than a vinyl or neoprene bulb, and Pemko describes its pile as self-adjusting where the 140PA uses spring loading with adjustment screws on 10 inch centers. Both are two-part arrangements intended for the meeting stiles of a pair of doors, so a spec calling for an adjustable pile astragal on a double door opening can be satisfied by either.
6) I need a pile astragal for a fire rated pair but do not need the spring loaded adjustment. What else works?
The Pemko 369 split astragal seal is the simpler option. It is a fire-rated aluminum split astragal with a pile brush insert, sized 13/32 inch by 11/32 inch, and it carries no spring mechanism or adjustment screws - it mounts and seals at a fixed projection. The NGP 140PA, by contrast, is spring loaded with adjustment screws on 10 inch centers so the seal position can be tuned after mounting without relocating the part. Choose the 369 where the gap at the meeting stiles is consistent, and the 140PA where it varies down the height of the doors.
7) Is a Trimco 5001 or 5002 lock astragal a substitute for the NGP 140PA?
No - they answer a different problem despite sharing the word astragal. The Trimco 5001 is a stainless steel lock astragal for use with mortise or cylindrical locks, and the Trimco 5002 is the same idea in a 1-9/16 inch by 6 inch size for cylindrical locks. Both are short latch-guard style pieces that cover the lock area of the opening. The NGP 140PA is a full-height sealing astragal set running the door height in 84 inch, 96 inch and 168 inch lengths with pile and spring loaded pressure. If the goal is weather and smoke sealing down the meeting stiles, the Trimco parts will not do it; if the goal is guarding the latch, the 140PA will not.
8) Which astragal do I use on a pair that has to stay fire rated for three hours?
The NGP 140PA set is rated up to 3 hours on metal doors and 20 minutes on wood doors, so it covers a 3 hour metal door pair directly. Among the alternatives, the Pemko 369 split astragal is also described as fire-rated aluminum with a pile brush insert. For a 3 hour metal opening in a healthcare or institutional corridor, confirm the astragal rating matches the door and frame label before ordering either.
9) Pile astragal versus a vinyl T-astragal for a double door, which one should I use?
The pile on the 140PA sweeps against the other leaf and stays in contact through the swing, so it suits a pair that gets heavy traffic and where you want low drag on the closer. A vinyl insert type like the Cal-Royal EAST-501 T-astragal presses a solid bulb instead, which seals air and water harder but drags more. Pile is generally the choice for interior and smoke or light weather duty, vinyl for exterior water.
10) What else could I use instead of the NGP 140PA on a double door pair?
Two close alternatives in the same family: the Pemko 300 Series adjustable astragal with self-adjusting pile brush, which is the nearest match in concept, and the Pemko 369 split astragal seal with pile brush insert, a 13/32 by 11/32 inch aluminum fire-rated profile for a slimmer application where you do not have room for a full adjustable astragal.
11) Do I get both halves in one order for the NGP 140PA, or do I have to buy two?
One order gets the complete set, both pieces. The 140PA is sold as a set, so a single pair of doors takes one order at the length that matches your leaf height. It is only the mounting fasteners and any cutting you handle on site.
12) The gap at my double doors is wide and I want a positive seal, not brush. What should I use instead of a pile astragal?
Look at the Cal-Royal EAST-501 aluminum T-astragal, which uses a vinyl insert rather than pile and mounts to the meeting stile of a double door pair. A vinyl insert compresses against the mating door face, while the NGP 140PA seals with gray polypropylene pile held against the door by spring pressure. The T shape of the EAST-501 also overlaps the gap rather than filling it with brush, which changes how the pair swings and which leaf must close first.
13) What is the NGP 140PA astragal actually made of, and will it hold up outdoors?
Aluminum alloy 6063 in T5 temper, anodized, with a gray polypropylene pile. That is the standard extrusion and finish for commercial door gasketing, corrosion resistant and it will not rust at an exterior pair. The pile itself is polypropylene, which does not absorb water.
