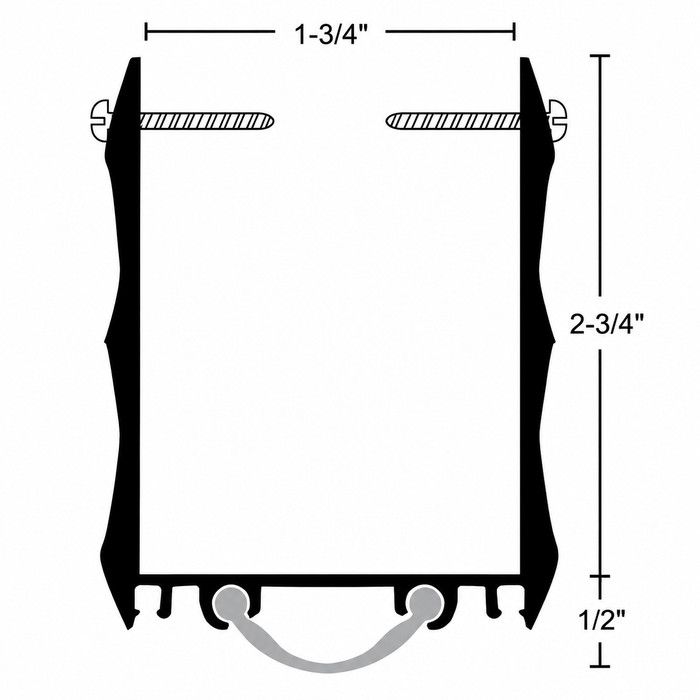

NGP 99V Extended Door Shoe with Vinyl Insert - Aluminum Alloy Construction

NGP 99V Extended Door Shoe with Vinyl Insert - Aluminum Alloy Construction

(No reviews yet) Write a Review

Model: 99VA-32
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$112.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Vinyl Insert - Aluminum Alloy Construction

Professional Door Sealing Solution for Commercial Applications

The NGP Extended Door Shoe with Vinyl Insert delivers reliable door bottom sealing for commercial applications. Constructed from aluminum alloy 6063 with T5 temper for durability, this door shoe features a thermoplastic polymer vinyl insert made from Polyvinyl Chloride (PVC) with environmentally friendly bio-based plasticizer. Operating effectively in temperatures from 0 F to 140 F, this economical solution provides flame and moisture resistance for demanding commercial environments.

Professional Features & Benefits

  • Temperature Performance: Operates reliably from 0 F to 140 F for versatile climate applications and seasonal temperature variations.
  • Durable Aluminum Construction: Aluminum alloy 6063 with T5 temper provides exceptional strength and corrosion resistance for long-term commercial use.
  • Environmentally Conscious Materials: Thermoplastic polymer vinyl insert formulated with bio-based plasticizer reduces environmental impact while maintaining performance.
  • Multi-Hazard Protection: Flame resistant and moisture resistant properties protect against fire spread and water infiltration.
  • Professional Installation Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and corrosion resistance.
  • Economical Solution: Cost-effective door sealing option that delivers professional performance without premium pricing.
  • Expandable System: End caps available separately for complete installation customization and professional appearance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade reliability with aluminum alloy 6063 construction and T5 temper rating for demanding commercial applications. The environmentally conscious vinyl insert formulation with bio-based plasticizer demonstrates commitment to sustainable building practices while maintaining flame and moisture resistance. Engineered for temperature extremes from 0 F to 140 F, this economical solution provides dependable door sealing performance where consistent environmental control is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 99VA-32 – Frequently Asked Questions

1) Does the NGP 99V door shoe come with mounting screws, or do I need to buy fasteners separately?
Screws are in the box. The 99V ships with #6 x 3/4 inch stainless steel sheet metal screws, which is what you want on an exterior bottom rail where a plated screw would rust out. End caps are a separate order if you want the finished look at the stile edges, so add those to the same PO rather than discovering it on site.
2) What door shoe should I use on a fire-rated opening instead of the NGP 99V?
For a fire-rated door, look at the Pemko 210 fire-rated door bottom shoe with Eco-V insert in 36 inch aluminum construction, or the Pemko 215 fire-rated door shoe with rain drip and Eco-V insert, which is UL10C certified. Both are catalogued as fire-rated door bottom shoes, which the NGP 99V vinyl-insert shoe is not described as. If the drawing calls out a labeled opening, the UL10C listing on the Pemko 215 is the one to hand the inspector.
3) What is the closest equivalent to the NGP 99V door shoe from another manufacturer?
The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the same basic construction as the NGP 99V extended door shoe with vinyl insert in aluminum alloy 6063. Pemko's 209 is also a door bottom shoe with an Eco-V vinyl insert, in a 1/2 inch by 1-3/8 inch profile. When cross-referencing a spec that calls for an aluminum shoe with a replaceable vinyl seal, any of the three answers that description; confirm the profile against the door bottom you are sealing, since the Pemko 209 publishes a specific 1/2 inch by 1-3/8 inch section and the NGP 99V is the extended-leg style.
4) Which door shoe handles a door that gets driving rain, if the NGP 99V does not?
On an exterior opening where water runs down the face of the door, a shoe with an integral rain drip carries the water clear of the joint. The Pemko 211V is an L-shaped door shoe with rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 pairs a rain drip with a fire-rated, UL10C certified body. The NGP 99V is a vinyl-insert aluminum shoe described as moisture resistant, so it suits a protected or interior door bottom; the drip-equipped shoes add the shed detail for weather-exposed entrances.
5) Will an NGP 99V door shoe hold up on an exterior door in a cold climate?
The 99V is rated from 0 F to 140 F, so it covers most of the continental US but it is not the part for a Minnesota or Northern Plains exterior door that regularly runs below zero. The aluminum extrusion itself is fine in the cold; it is the vinyl insert that stiffens and stops sealing at the bottom of the range. The insert is also moisture resistant, which is what matters on a door that sees rain and wash-down.
6) Should I use a door shoe like the NGP 99V or just a surface door sweep?
A shoe wraps the bottom of the door, so the aluminum carrier hides the raw bottom edge and the vinyl insert rides on the threshold. A surface sweep just screws to the face of the door. Two practical differences: a shoe usually requires taking the door down to slide it on, where a sweep goes on with the door hung; and a shoe protects a wood or hollow metal bottom rail from water, where a sweep leaves it exposed. On an exterior opening that gets weather, the shoe is the better call, and the 99V is the economical version of it.
7) Does the NGP 99V door shoe have a rain drip on it?
No rain drip on the 99V. It is the plain extended shoe with a vinyl insert. If the opening is exposed and you need water thrown clear of the threshold, the Pemko 211V is an L-shaped shoe with a rain drip, and the Pemko 215 is a fire rated shoe with a rain drip. Otherwise, a separate drip cap over the door does the same job and lets you keep the 99V at the bottom.
8) What is the closest substitute for an NGP 99V door shoe if I need to match what is already on my other doors?
For a like-for-like aluminum shoe with a vinyl insert, the Cal-Royal DS-403 is the straight equivalent from another brand, and the Pemko 209 is the same idea with Pemko's Eco-V insert. If you are matching existing openings, the thing to check is the finish and the profile of the shoe already on the door, not the brand. Mixing an anodized aluminum shoe with dark bronze ones is the mismatch a property manager notices from the parking lot.
9) Is a door bottom sweep the same thing as the NGP 99V door shoe?
No. The NGP 99V is a door shoe: an aluminum alloy 6063 channel that wraps the bottom edge of the door and carries a replaceable PVC vinyl insert against the threshold. A sweep mounts flat to the face of the door and hangs a seal below the door bottom, so it does not require the same bottom-edge access to install. The peer shoes cross-reference the same way the 99V does: the Cal-Royal DS-403 aluminum door shoe with vinyl insert and the Pemko 209, 210, 211V and 215 are all door bottom shoes, not face-mounted sweeps.
10) For a green building spec, what door shoe insert should I compare against the NGP 99V?
The NGP 99V uses a thermoplastic PVC vinyl insert formulated with a bio-based plasticizer. If the specification asks for a third-party emissions certification rather than a material description, the Pemko 211V carries a GREENGUARD Gold certified Eco-V insert, and the Pemko 209, 210 and 215 all use the Eco-V insert as well. Match whichever one the spec section actually names, since the two are documented differently: one by plasticizer chemistry, the other by certification.
11) What is the difference between an L-shaped door shoe and the NGP 99V extended shoe?
The Pemko 211V is an L-shaped door shoe, a single-leg section that fastens to one face of the door with the seal carried under the bottom edge. The NGP 99V is an extended door shoe in aluminum alloy 6063 with T5 temper, carrying a vinyl insert. The L-shape is the one to reach for when the far face of the door cannot be fastened into or when clearance on that side is tight; the extended shoe profile suits a standard bottom-edge application. Both hold a replaceable vinyl insert, so the seal itself is serviceable either way.
12) Is the NGP 99V vinyl insert replaceable, or do I have to change the whole shoe when it wears out?
The vinyl is a separate insert in the aluminum extrusion, not molded to it, so the wear item is the insert and the carrier stays on the door. That is the argument for a shoe over a one-piece sweep in a high-traffic building: on the next cycle you are pulling and re-seating vinyl rather than taking the door down again. The insert is a PVC thermoplastic with a bio-based plasticizer.
13) Does the NGP 99V door shoe count toward sustainable or low-emission material requirements on a project?
The 99V insert is PVC formulated with a bio-based plasticizer rather than a conventional phthalate, which is the sustainability claim NGP makes for it. If your spec calls for a third-party certification specifically, the Pemko 211V shoe carries a GREENGUARD Gold certified Eco-V insert. Aluminum 6063 is itself a recycled-content-friendly extrusion alloy.
14) Can I standardize on the NGP 99V across a whole building or campus?
Yes, and that is what the length spread is for. Six lengths from 32 to 84 inches in two finishes covers standard 36 inch leaves, 32 inch openings in older interior work, 48 inch and pairs, and oversized doors, all with one part family and one screw type. For an MRO stockroom, carrying the 36 inch and the 84 inch in your building finish covers most replacements, since the 84 can be cut down.
15) Can I finish-match the NGP 99V door shoe to bronze storefront hardware, or do I need a different brand?
The NGP 99V comes in anodized aluminum and dark bronze, and both are offered across the 32, 36, 40, 42, 48 and 84 inch lengths, so a dark bronze shoe can run the full door width on a bronze-finished entrance. The comparable Cal-Royal DS-403 is an aluminum door shoe with vinyl insert. If the entrance is standardized on dark bronze, staying with the 99V keeps one part number across every leaf on the building.
