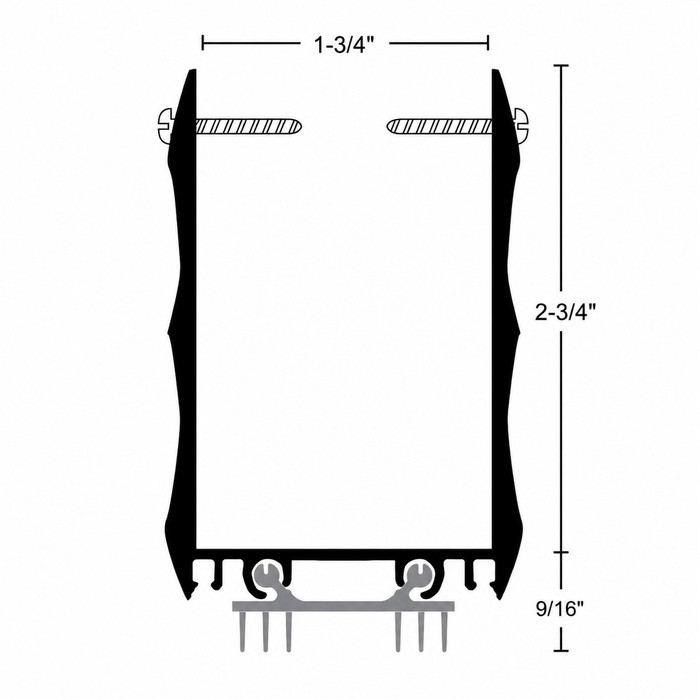

NGP 99TA Extended Door Shoe with Thermoplastic Insert - Anodized Aluminum Construction

NGP 99TA Extended Door Shoe with Thermoplastic Insert - Anodized Aluminum Construction

(No reviews yet) Write a Review

Model: 99TA-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Extended Door Shoe with Thermoplastic Insert - Anodized Aluminum Construction

Professional Door Sealing Solution with Durable Thermoplastic Technology

The NGP Extended Door Shoe combines aluminum alloy 6063 T5 temper construction with an advanced thermoplastic polymer insert for reliable door sealing performance. This door shoe features a rigid base with soft vinyl fins in dark brown, designed to operate effectively in temperature ranges from 0 F to 140 F. The anodized aluminum finish provides corrosion resistance while the PVC thermoplastic insert is formulated with environmentally friendly bio-based plasticizer for enhanced durability and moisture resistance.

Professional Features & Benefits

  • Temperature Performance: Operates reliably in temperature range from 0 F to 140 F for year-round effectiveness in various climates.
  • Durable Construction: Aluminum alloy 6063 T5 temper provides exceptional strength and dimensional stability for long-term performance.
  • Advanced Thermoplastic Technology: Polyvinyl Chloride (PVC) insert formulated with environmentally friendly bio-based plasticizer for enhanced flexibility and environmental responsibility.
  • Moisture and Flame Resistance: Thermoplastic polymer provides moisture resistance and flame resistant properties for enhanced safety and durability.
  • Complete Installation Hardware: Includes #6 x 3/4" stainless steel SMS fasteners for secure mounting and professional installation.
  • Customization Options: Available with notched fins (suffix "NF") for specialized applications requiring modified sealing profiles.
  • Professional Finish: Anodized aluminum construction provides corrosion resistance and maintains appearance in demanding commercial environments.
  • Economical Solution: Cost-effective sealing performance with professional-grade materials and construction quality.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP door shoes deliver professional-grade sealing performance with aluminum alloy 6063 T5 temper construction and advanced thermoplastic technology rated for 0 F to 140 F operation. The environmentally friendly bio-based plasticizer formulation and flame-resistant properties ensure reliable performance in demanding commercial applications where dependable door sealing is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 99TA-36 – Frequently Asked Questions

1) What lengths does the NGP 99TA door shoe come in?
The 99TA extended door shoe is sold in 36 inch and 48 inch lengths. The 36 inch covers a standard single commercial door leaf; the 48 inch is for wider openings or for cutting down to size on site. Aluminum extrusion like this is field-cuttable with a miter saw, so buying long and trimming is normal practice.
2) I need a door shoe on a fire-rated opening - can I use the NGP 99TA?
The NGP 99TA is described as an aluminum door shoe with a flame-resistant thermoplastic insert, but if your opening requires a shoe carrying a fire rating, specify one that states it. The Pemko 210 is a fire-rated door bottom shoe with an Eco-V insert in 36 inch aluminum construction, and the Pemko 215 is a fire-rated door shoe that is UL10C certified and adds a rain drip. For a labeled door, choose from those rather than a general-purpose shoe.
3) The NGP 99TA has no rain drip - what should I use on an exterior door that needs one?
The 99TA is an extended door shoe with a thermoplastic insert and no drip cap. For an exterior opening where you want water shed away from the threshold, the Pemko 211V is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, and the Pemko 215 is a fire-rated shoe that also includes a rain drip. Both add the drip feature the 99TA profile does not carry.
4) What is the closest equivalent to the NGP 99TA door shoe from another manufacturer?
The NGP 99TA is an extended door shoe with an aluminum body and a thermoplastic (PVC) insert, offered in 36 inch and 48 inch lengths. The nearest like-for-like alternates are the Pemko 209 door shoe with Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile, and the Cal-Royal DS-403 aluminum door shoe with vinyl insert. All three are the same basic part: an aluminum channel fastened to the face of the door bottom carrying a replaceable flexible insert that sweeps the threshold.
5) Will an aluminum door shoe with a vinyl insert hold up outside in cold weather?
The 99TA is rated for service from 0 F to 140 F, and the thermoplastic PVC insert is formulated with a bio-based plasticizer for flexibility and moisture resistance. The extrusion is aluminum alloy 6063 T5 with an anodized finish for corrosion resistance. Below 0 F sustained, it is outside its stated range.
6) What is the difference between a door shoe and a door sweep?
A door shoe like the 99TA wraps the bottom edge of the door, so the aluminum carrier grips the face and the underside while the vinyl fins seal down to the threshold. A sweep only fastens to one face. The shoe protects the door bottom edge as well as sealing it, which is why it is the usual pick on exterior and high-traffic commercial openings.
7) Can I order the NGP 99TA with notched fins?
Yes. The notched fin version is ordered with the suffix NF, for openings where the fin profile has to clear a threshold obstruction or a stop condition. Standard order is the unnotched profile with the dark brown vinyl fins.
8) Is a door shoe like the NGP 99TA the same thing as a door sweep?
No. The NGP 99TA is a door shoe: a rigid aluminum channel that wraps the bottom edge of the door and carries a soft vinyl fin insert, fastened with the included #6 x 3/4 inch stainless steel sheet metal screws. A sweep mounts flat to the door face and does not cap the bottom edge. The comparable shoes in the same family - the Cal-Royal DS-403 aluminum door shoe with vinyl insert and the Pemko 209 in a 1/2 inch by 1-3/8 inch profile - are the correct substitutes if you are replacing a shoe.
9) What color are the vinyl fins on the NGP 99TA, and will they match other openings in my building?
The fins are dark brown on a rigid base, with the carrier in anodized aluminum. If the rest of your building runs a lighter or clear vinyl, it will not match visually at the door bottom. The Cal-Royal DS-403 aluminum door shoe with vinyl insert and the Pemko 209 are the other shoes to look at when you are standardizing a fleet of doors.
10) Is the NGP 99TA door shoe meant for commercial use or residential?
It is a commercial-rated part, used on office buildings, schools, healthcare, retail, warehouse, multi-tenant residential and municipal openings. Nothing stops it going on a residential door, but the 6063 T5 aluminum body and anodized finish are specified for commercial traffic and corrosion exposure.
