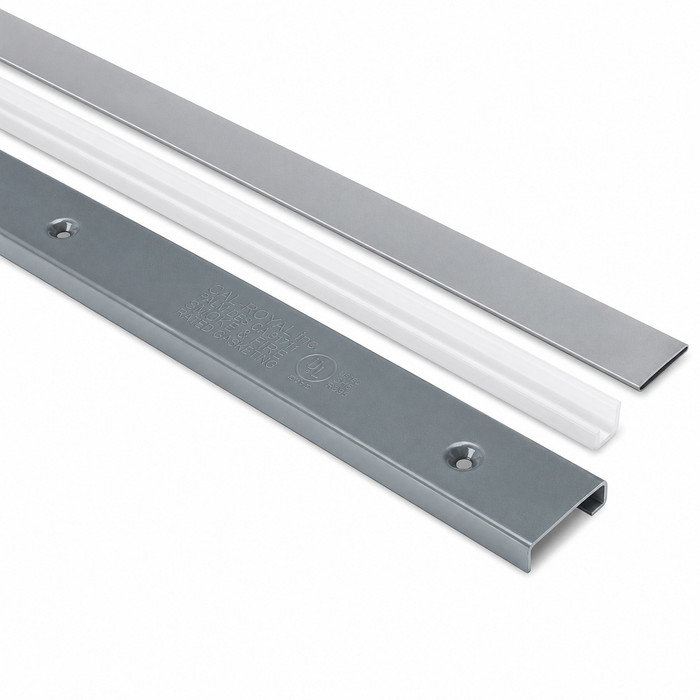

NGP GAP90 Fire Door Head / Jamb Gap Solutions - Up To 90 Minutes

NGP GAP90 Fire Door Gap Solution - UL Certified 90 Minute Rating for Excessive Clearances

(No reviews yet) Write a Review

Model: GAP90DKB-36IN
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$231.00
$207.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP GAP90 Fire Door Gap Solution - UL Certified 90 Minute Rating for Excessive Clearances

Professional Fire Door Compliance Solution for Excessive Frame Clearances

The NGP GAP90 provides a UL certified solution for fire doors with excessive clearance between door and frame over 1/8". This professional gap solution accommodates clearances up to 3/8" for 60- and 90-minute fire doors, and up to 9/16" for 20- and 45-minute fire doors. Available in 36", 48", 84" and 96" lengths, the GAP90 is designed for use where door frame stop is less than 1-3/8" wide and restricts the passage of smoke while maintaining fire door integrity.

Professional Features & Benefits

  • UL Certified Fire Rating: Certified for 60- and 90-minute fire doors with clearances up to 3/8", and 20- and 45-minute fire doors with clearances up to 9/16" for comprehensive fire protection compliance.
  • Multiple Length Options: Available in 36", 48", 84" and 96" lengths to accommodate various door sizes and installation requirements.
  • Frame Stop Compatibility: Designed specifically for use where door frame stop is less than 1-3/8" wide for precise fit and function.
  • Smoke Restriction: Effectively restricts the passage of smoke while maintaining proper fire door operation and compliance.
  • Non-Handed Design: Universal application eliminates the need for specific left or right-hand configurations, simplifying inventory and installation.
  • Comprehensive Certifications: UL certified to ANSI/UL10C and CAN/ULC-S104 standards, complies with IBC, NFPA 80 and NFPA 252 for US and Canada applications.
  • Compatible Accessories: Works with NGP Strike Shims (9275 or 9225) when required for proper latchbolt engagement in specific installations.
  • Patented Technology: Protected by US Patent 9,273,510 B2 ensuring innovative design and reliable performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gap Solution
  • Product Width: 1-3/8"
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Commercial Office Buildings with Fire-Rated Openings
  • Educational Facilities Fire Door Compliance
  • Healthcare Institution Fire Safety Systems
  • Industrial Facility Fire Protection
  • Multi-Tenant Residential Fire Door Upgrades
  • Government and Municipal Building Code Compliance
  • Retrofit Applications for Existing Fire Doors

Why Choose NGP Quality?

NGP GAP90 fire door gap solutions deliver professional-grade fire protection with comprehensive UL certification to ANSI/UL10C and CAN/ULC-S104 standards. The patented design (US Patent 9,273,510 B2) ensures reliable performance in demanding commercial applications where fire door compliance and smoke restriction are essential. Certified for use in both US and Canada, providing confidence in regulatory compliance and life safety protection.

Product Specs

Condition:
New
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gap Solution
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Product Width:
1-3/8"
Department:
Door Hardware

NGP GAP90DKB-36IN – Frequently Asked Questions

1) Will the NGP GAP90 work on my frame, or does the stop have to be a certain width?
Frame stop width is the thing to measure first. The GAP90 is made for openings where the door frame stop is less than 1-3/8 inches wide, and the part itself is 1-3/8 inches wide. If your stop is already 1-3/8 inches or wider, this is not the right piece for that opening.
2) Is the NGP GAP90 actually approved by code, or is it just a filler strip?
It is a listed product, not a filler. The GAP90 is UL certified to ANSI/UL10C and CAN/ULC-S104, and complies with IBC, NFPA 80 and NFPA 252 for use in the US and Canada. NFPA 80 is the standard your fire door inspector is citing when they write up an excessive clearance, so this is the paperwork an AHJ or an institutional compliance file needs.
3) After installing the GAP90 the latch does not reach the strike. What do I need?
Building up the jamb can pull the strike out of reach of the latchbolt. NGP makes Strike Shims for that, the 9275 or 9225, and they are used with the GAP90 where the latchbolt needs to re-engage. Order them alongside the gap solution on any opening where the jamb side is being built out.
4) Can I use the GAP90 on a 3-hour rated fire door?
No. The GAP90 tops out at 90 minutes. Its certification covers 60- and 90-minute doors with clearances up to 3/8 inch, and 20- and 45-minute doors up to 9/16 inch. A 3-hour opening is outside what this part is certified for, so an oversize gap there has to be corrected another way.
5) What lengths does the GAP90 gap solution come in, and how do I figure out what to order for a head and jamb?
Four lengths: 36, 48, 84 and 96 inches. The short ones cover the head of a standard opening and the long ones run the jamb, so a single door usually takes one head piece plus jamb pieces cut to the door height. The GAP90 is applied at the head and jambs, not the sill.
6) Does the NGP GAP90 need to be ordered handed, left or right?
No handing to specify. The GAP90 is a non-handed design, so the same part goes on a left-hand or right-hand opening. For a property manager or a facility stocking spares across a building, that means one part number covers every door instead of two.
7) Will the GAP90 hold back smoke, or only flame?
Both jobs. Beyond maintaining fire door integrity, the GAP90 restricts the passage of smoke through the head and jamb clearance. On a healthcare or multi-family corridor where the smoke barrier matters as much as the fire rating, that is the reason to close the gap with a certified part rather than patching the frame.
8) What colors does the NGP GAP90 come in for a finished corridor?
Gray and Dark Bronze, both offered in 36, 84 and 96 inch lengths. Dark bronze reads better against a bronze or dark-painted frame in a lobby or tenant corridor; gray disappears on a standard primed or painted hollow metal frame.
9) Is the NGP GAP90 meant for commercial openings or will it work on a residential door?
This is a commercial product, aimed at rated openings in offices, schools, hospitals, industrial plants, government buildings and multi-tenant residential. The application is a fire-rated opening with an out-of-tolerance clearance, which is a commercial inspection issue, not something that comes up on an unrated interior house door.
