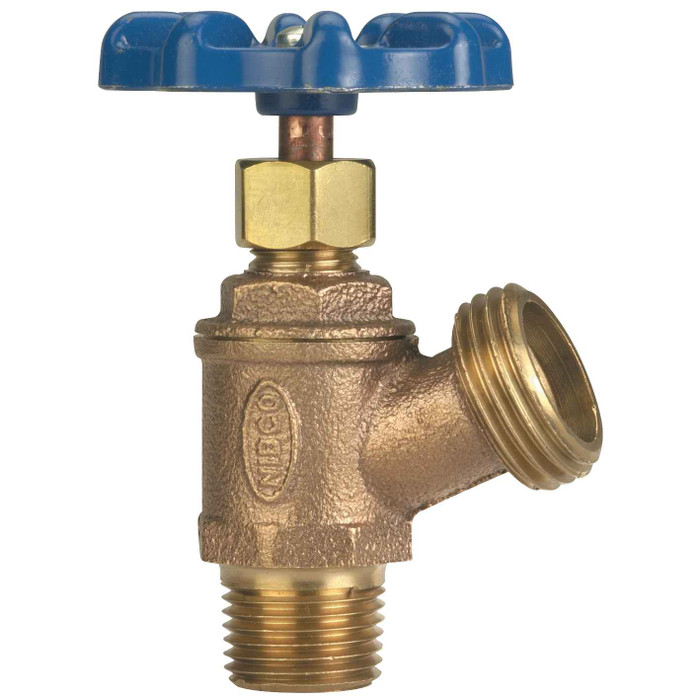

Nibco 74-CL Boiler Drain - Multi-Turn, Copper or Male Threads to Hose

Nibco 74-CL Boiler Drain - Multi-Turn, Copper or Male Threads to Hose

(No reviews yet) Write a Review

Model: N64N006

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The NIBCO® multi-turn boiler drain is manufactured from dezincification resistant cast copper, with a Buna-N seat. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Choose NIBCO® flow control products for the most specified, versatile and economical option in commercial and residential applications. NIBCO® boiler drain valves are backed by the NIBCO 2-year limited warranty.

  • Valve pressure rating 125 psi to 100-DegreeF
  • Maximum temperature 180-DegreeF/82.2-DegreeC
  • Screw-in bonnet
  • Buna-N seat
  • 1/2" cup or MIP to hose connections
  • 3/4" MIP to hose connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014

Manufacturer Resources

Spec Sheet

Product Specs

All Basic Material:
Bronze
Classification:
Boiler Drains
End Connection:
Threaded
Product Group:
Valve
System Use:
Residential Plumbing
Type of Valve:
Boiler Drain
Valve End Connection Type:
Solder Cup or MIP x Hose
Product Type:
Boiler Drains
Department:
Plumbing
Product Length:
3.5 in
Product Weight:
0.507 lb
Product Width:
2.2 in
Product Height:
2.1 in

Nibco N64N006 – Frequently Asked Questions

1) Can I use the Nibco 74-CL boiler drain on a potable drinking water line?
No. The NIBCO 74-CL boiler drain is prohibited from use in U.S. drinking water applications after January 3, 2014. It's intended for residential plumbing service such as boiler and hydronic draining, not potable supply. If you need a drain on a potable line, specify a lead-free rated hose drain instead.
2) What connections does the Nibco 74-CL boiler drain have - does it solder to copper or thread on?
Both options exist in the 74-CL family. The end connection is solder cup or MIP by hose: in 1/2 inch you can get either a copper solder cup or a 1/2 inch male iron pipe inlet, each terminating in a standard hose thread outlet. The 3/4 inch size is MIP to hose only. So if you're tying into a threaded boiler tapping, take the MIP version; if you're sweating into a copper stub, take the cup.
3) What pressure and temperature can a Nibco 74-CL boiler drain handle?
The 74-CL is rated 125 psi at 100 degrees F, with a maximum temperature of 180 degrees F (82.2 degrees C). That covers typical residential hydronic and domestic hot water draining, but it is not a high-temperature steam valve. The Buna-N seat is the limiting part on temperature.
4) Will the Nibco 74-CL boiler drain corrode on well water or aggressive water?
The valve body is dezincification resistant cast copper alloy, listed as bronze material, which is the specification you want where water chemistry attacks ordinary brass and causes it to fail at the threads. That's the main reason to spec the 74-CL over a plain brass hose drain on a hydronic loop that sees makeup water.
5) Can I hook a garden hose straight to the Nibco 74-CL to drain a boiler?
Yes, the outlet is a hose connection, so a standard garden hose threads right on for draining a boiler or hydronic loop to a floor drain. Serviceable in place too, since the bonnet screws in and the Buna-N seat can be reached without cutting the valve out.
6) Can the 74-CL boiler drain be used as a hose bibb on an outside wall?
It isn't built for that. The 74-CL is a boiler drain for residential plumbing systems, rated to 180 degrees F and prohibited for drinking water use, with no freeze protection or vacuum breaker in its design. For an exterior wall tap you want a frost-free sillcock with an integral backflow preventer.
7) What size do I order and what is the Nibco part number for the 1/2 inch boiler drain?
The 1/2 inch size carries NIBCO part number N64N006. Pipe size is the only thing you select on this drain, so match it to the tapping or copper stub you're connecting to.
