Nibco 906 DWV 45-Degree Elbow ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$32.36
Nibco 906 DWV 45-Degree Elbow C x C - Wrot

Nibco 906 DWV 45-Degree Elbow C x C - Wrot

(No reviews yet) Write a Review

Model: H042600

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

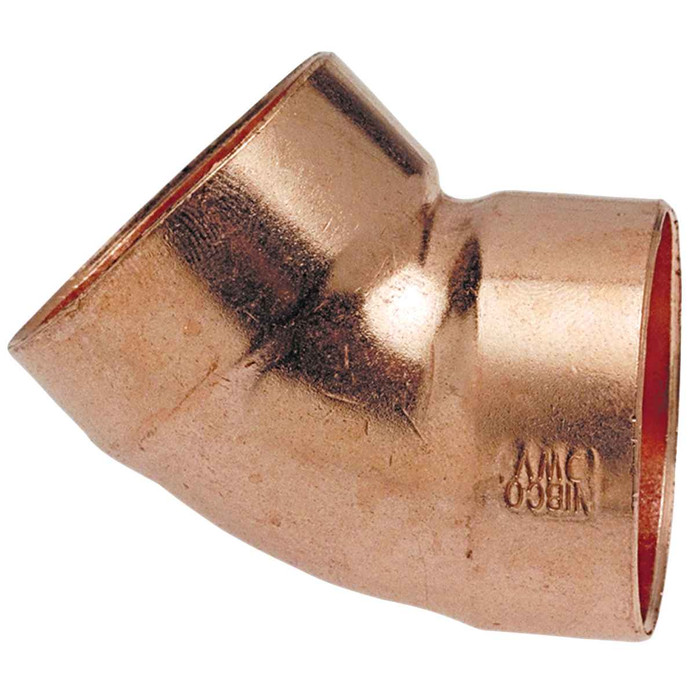

The 45-degree elbow features solder cups. The fitting provides a means of changing the pipeline direction by 45 degrees. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Dezincification resistant
  • ASTM B75 Alloy C12200
  • Material and workmanship per ASME B16.29

Copper Fittings Installation Instructions

Manufacturer Resources

Product Specs

All Application(s):
DWV Drain / Waste / Vent
All Basic Material:
Copper
Classification:
Solder DWV Elbows
End Connection:
Solder
Fitting Bend Angle:
45 Deg (1/8 Bend)
Metal End Connection Type:
C x C
Product Group:
Fitting
Product Type:
Solder DWV Elbows
System Use:
Commercial Plumbing, Residential Plumbing
Type of Elbow:
Straight Size
Product Subgroup:
Elbow
Department:
Plumbing
Country Of Origin:
United States

Nibco H042600 – Frequently Asked Questions

1) Is the Nibco 906 elbow sized for DWV copper or for pressure copper tube?
The 906 is a DWV fitting, made for drain, waste and vent copper systems, not pressure lines. It solders to DWV copper tube and is intended for gravity drainage and venting in both commercial and residential plumbing. If you are piping domestic water or hydronics, you want a pressure-rated wrot copper 45, not this one.
2) What does C x C mean on this Nibco 45-degree elbow?
C x C means both ends are solder cups, so copper tube slides inside each end and is soldered. There are no threads and no hub on either side. If your run needs a threaded or no-hub transition, you will need an adapter fitting downstream of this elbow.
3) What pipe sizes does the Nibco 906 DWV 45 elbow come in?
Four sizes: 1-1/4 inch (H042500), 1-1/2 inch (H042550), 2 inch (H042600) and 3 inch (H042650). All are straight size, meaning both cups are the same diameter, so a reducing 45 is not part of the 906 range. Size by the copper DWV tube you are joining.
4) Is a 45-degree elbow the right choice for offsetting a copper waste stack, or should I use a 90?
A 45, also called a 1/8 bend, changes direction by 45 degrees and is the standard way to build an offset in a drainage stack or to ease flow into a horizontal run. Two 45s with a short nipple between them make a gentler transition than a single 90 and keep solids moving. Use a long-turn 90 or a combination fitting where you actually need a right-angle change of direction.
5) What copper alloy and standard is the Nibco 906 wrot elbow made to?
Wrot copper, ASTM B75 alloy C12200, with material and workmanship per ASME B16.29. It is also dezincification resistant, which matters on jobs where a spec calls it out for the fitting package.
6) Can this elbow be press-fit or does it have to be soldered?
It has to be soldered or brazed. Both ends are plain solder cups with no sealing element, so there is nothing for a press tool to crimp. Nibco publishes copper fitting installation instructions covering joint prep, and clean, deburred tube with proper flux is what makes the joint.
7) Will a copper DWV 45 elbow work in a green or LEED-oriented building spec?
Copper DWV fittings are commonly accepted on sustainability-driven jobs because the material is fully reusable and recyclable at end of life, and the 906 is produced in an ISO 9001 certified facility. For institutional and MRO buyers standardizing a drainage package, the same 906 covers 1-1/4 through 3 inch.
