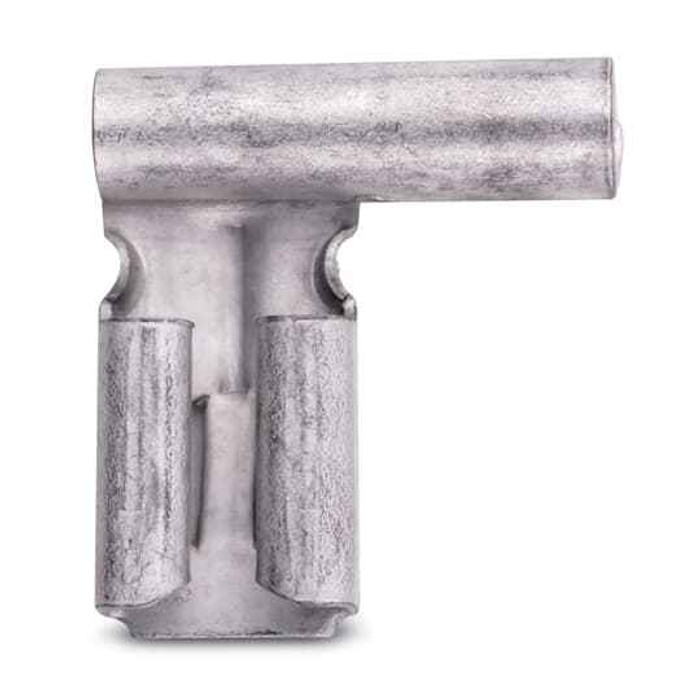

NON-INS FEM-250 FLAG DISC, 12-10 LE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated 90 Degree Flag Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon C10-250A – Frequently Asked Questions
1) Is the Sta-Kon C10-250A insulated?
No insulation at all on this one, it's bare brass with a metallic finish. Anywhere two terminals could touch or the tab sits near a grounded surface, you need to sleeve it with heat shrink or use a nylon receptacle housing. For a ready-insulated part, order the insulated version of the flag disconnect rather than adding protection in the field.
2) What does a 90 degree flag disconnect do that a straight disconnect won't?
The flag body brings the wire in at a right angle to the tab instead of in line with it. That is what you use when there isn't room behind the terminal for a straight push-on, inside a tight motor junction box, a crowded relay panel or behind a switch plate. A straight female 250 disconnect is the better pick when you have clearance and want a cleaner pull-off.
3) Does this terminal carry a UL listing for use in an electrical panel?
Yes, the C10-250A is covered under UL file E66716. That is the number an inspector or a spec reviewer will want for a UL recognized wire termination in panel and equipment work.
4) Will a brass disconnect work on aluminum wire?
No. The C10-250A barrel is brass and is intended for copper stranded conductors in the 12-10 AWG range. Aluminum conductors need a terminal rated and marked for aluminum, usually AL9CU, so do not substitute this one.
5) Is the Sta-Kon C10-250A made in the USA?
Country of origin is the United States, which matters if you are buying against a Buy American or domestic-preference clause on a government or institutional job.
