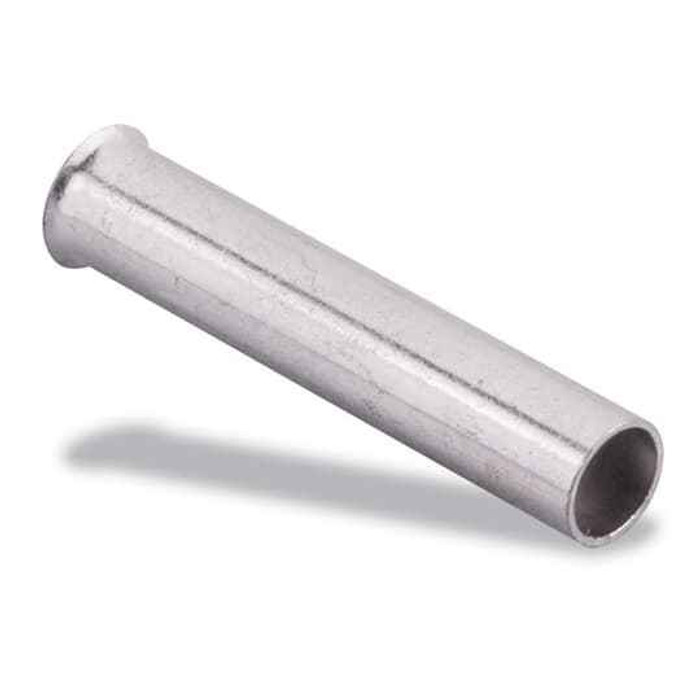

NON-INS FERRULE 2, 35 MM2, LG 1.26
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Non-Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 2 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon F9036 – Frequently Asked Questions
1) What wire size does the Sta-Kon F9036 ferrule take?
The F9036 is sized for 2 AWG conductor, which is the 35 mm2 metric equivalent called out in the part description. If your conductor is a different gauge, you need a different ferrule number, since a wire end ferrule only crimps correctly on the gauge it is barreled for.
2) Is the Sta-Kon F9036 ferrule UL recognized for panel work?
It carries UL file E489056. That is the number a plan reviewer or AHJ will want when you are terminating 2 AWG stranded conductor into control gear or a panel and the submittal asks for the connector listing.
3) How long is the barrel on the F9036 ferrule?
The barrel length is 1.26 inches. That length matters for two reasons: it sets how much insulation you strip back off the 2 AWG conductor, and it has to clear the depth of the terminal pocket or lug you are inserting into. Measure your terminal depth before committing on a large run.
4) Is the F9036 ferrule insulated or bare?
Bare. It is a non-insulated ferrule, so there is no plastic collar to color-code the gauge or to protect the strands where they enter the barrel. If you need strain relief and insulation at the wire entry, specify an insulated ferrule instead; if you are landing into a terminal block or lug where the insulated collar would not fit, the non-insulated version is the one to use.
5) What is the F9036 ferrule made of, and can I use it on aluminum conductor?
The barrel is copper, bare and metallic in finish. Copper ferrules are intended for copper stranded conductor. For aluminum conductor you need a connector rated for aluminum, because a copper-only barrel on aluminum invites galvanic corrosion at the joint.
6) Do I need a special crimper for a 2 AWG wire ferrule?
Yes. A 35 mm2 / 2 AWG copper ferrule is well past the range of the small ratchet ferrule crimpers used for control wiring. It needs a heavy hex or four-indent crimp die sized for 35 mm2. Pliers or an undersized tool leave a loose joint that heats up under load.
7) Why would I put a ferrule on stranded wire instead of landing the bare strands in the terminal?
A ferrule gathers the strands of the 2 AWG conductor into one solid pin so the terminal screw bears evenly instead of splaying or shearing individual strands. It also stops a stray strand from reaching an adjacent phase. On larger conductors like this one, where there is a lot of strand movement, that is the whole point of the part.
8) Where is the Sta-Kon F9036 ferrule manufactured?
Germany. That is worth noting for procurement files on jobs with country-of-origin reporting requirements, and it explains why the part is specified in metric 35 mm2 alongside the 2 AWG call-out.
