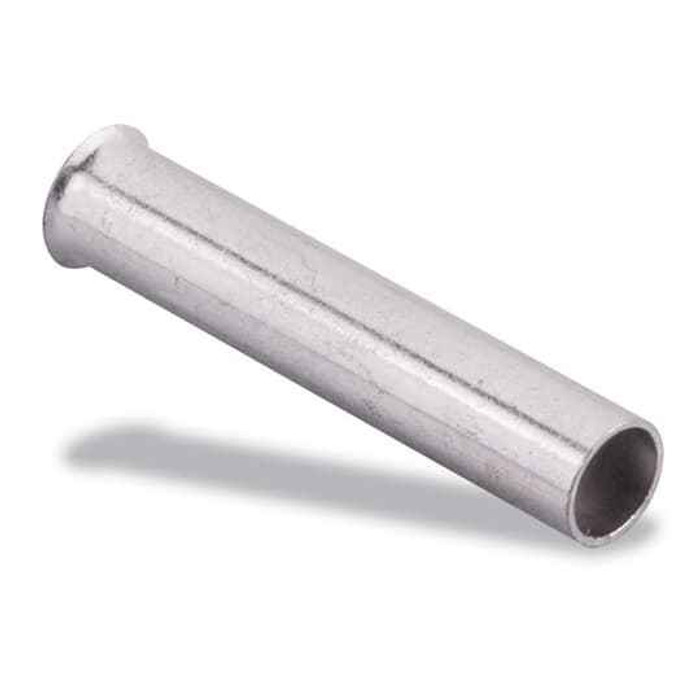

NON-INS FERRULE 2, 35 MM2, LG .984
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Non-Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 2 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon F9035 – Frequently Asked Questions
1) What wire size does the Sta-Kon F9035 ferrule take?
The F9035 wire ferrule is sized for 2 AWG conductor, which corresponds to the 35 mm2 metric size called out in its description. If your conductor is a different gauge, you need a different ferrule size, since a ferrule has to crimp tight on the strand bundle to hold.
2) Is the F9035 ferrule insulated or bare metal?
Bare metal, no plastic collar. The F9035 is a non-insulated copper ferrule with a metallic finish, so if your terminal block or enclosure needs an insulated entry you want an insulated-collar ferrule instead.
3) Does the Sta-Kon F9035 ferrule carry a UL listing for panel work?
It is covered under UL file E489056. For an inspector or an institutional spec that requires listed wire termination components, that is the file number to reference for this ferrule.
4) Do I need a special crimp tool for a 35 mm2 non-insulated ferrule?
Yes. A 35 mm2 / 2 AWG ferrule this size is beyond the range of the small hand ferrule crimpers used for control wiring, so you need a hex or four-indent ferrule crimper that covers 35 mm2. The F9035 is supplied as the ferrule only, with no tool or die included.
5) Why use a copper ferrule on stranded wire going into a terminal block?
A copper ferrule like the F9035 gathers the strands of a 2 AWG conductor into one solid pin so the terminal screw clamps the whole bundle instead of splaying or shearing individual strands. It is standard practice on control panels and motor starter terminals where fine or coarse stranded cable lands in a screw clamp.
6) Is the F9035 ferrule made in the US or imported?
Country of origin on the F9035 is Germany. That matters if you are buying against a domestic-content or Buy American requirement on a government or institutional job, since this part would not satisfy it.
