Sta-Kon C485 NON-INS RECT RING...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.78
$3.94

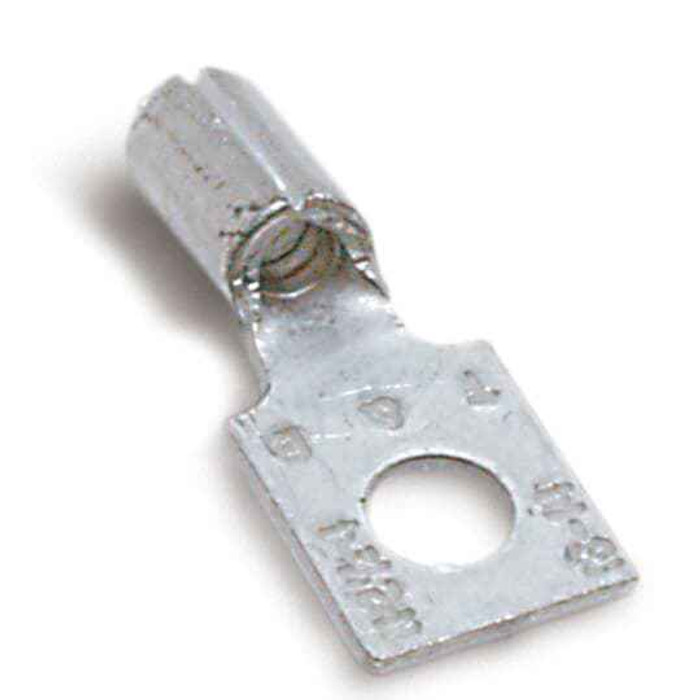

Sta-Kon C485 NON-INS RECT RING TERM, 12-10, No4

(No reviews yet) Write a Review

Model: C485
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.78
$3.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
NON-INS RECT RING TERM, 12-10, No4

Manufacturer Resources

Product Specs

Country Of Origin:
United States (US)
Product Subgroup:
General Terminals
Product Type:
Non-Insulated Rectangular Ring Terminal
Standards:
UL E9809, CSA 4503, CSA 7222
Voltage Rating:
600 V
Wire Size:
12-10 AWG
Department:
Electrical
Product Group:
Wire Termination
Product Color:
Metallic
Product Material:
Copper

Sta-Kon C485 – Frequently Asked Questions

1) What stud size does the C485 ring terminal fit?
It's a No. 4 ring, so it lands on a #4 screw or stud. On smaller terminal blocks and device screws that's the common size, but confirm the stud on your breaker lug or bus before ordering, since a #4 tongue will not slip over a #10 or 1/4-20 stud.
2) Is the Sta-Kon C485 UL listed for an inspected commercial job?
It carries UL file E9809 plus CSA 4503 and CSA 7222, so it satisfies the listed-connector requirement on both US and Canadian inspected work.
3) Is the Sta-Kon C485 insulated or bare?
Bare metal. It's a non-insulated rectangular ring terminal in copper with a metallic finish, so if the connection needs to be covered you add heat shrink or a separate nylon sleeve after crimping. Where inspectors want insulated terminations, choose an insulated ring terminal in the same 12-10 AWG range instead.
4) Why is this a rectangular ring terminal instead of a standard round ring or a fork?
The rectangular tongue gives you a flat, squared body that seats against a bus bar or block face without rotating, while still being a closed ring, so the wire can't come off the stud if the screw backs out. A fork or spade is quicker to slip on and off but will release under a loose screw. For a connection you don't plan to service often, the closed ring is the right call.
5) Will the C485 work on aluminum conductors?
No. The barrel is copper, which makes it a copper-conductor terminal. Aluminum wire needs a connector marked AL or AL/CU with the proper inhibitor compound; putting bare copper on aluminum invites galvanic corrosion at the joint.
6) Do I need a special crimper for the Sta-Kon C485?
It's a non-insulated barrel in the 12-10 AWG range, so it crimps with the non-insulated (uninsulated) nest of a standard terminal crimper, not the colored insulated dies. Using an insulated-die crimper on a bare barrel gives you an under-formed crimp.
7) Is the C485 terminal made in the USA?
Yes, country of origin is the United States. That matters on government, school district, and federally funded MRO work where domestic sourcing is written into the purchase order.
