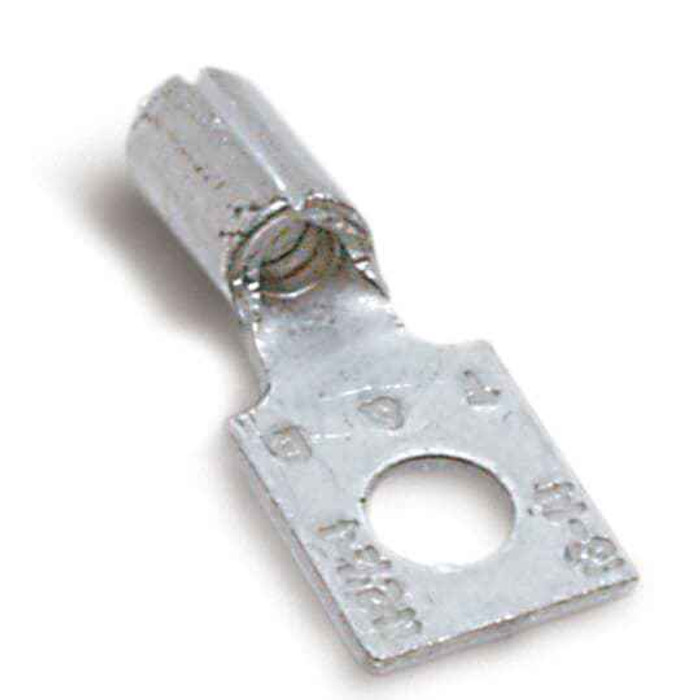

NON-INS RECT RING TERM, 16-14, No4
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Rectangular Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B485 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon B485 ring terminal take?
The B485 is sized for 16-14 AWG conductors. If you're terminating 12-10 AWG or 22-18 AWG, this is the wrong barrel size and the crimp won't hold reliably, so you'd need the corresponding barrel in that range.
2) Is the Sta-Kon B485 terminal insulated, and does that matter for my application?
No insulation on this one. The B485 is a bare copper rectangular-tongue ring terminal, so the barrel and tongue are exposed metal. On a crowded terminal block or anywhere adjacent conductors could bridge, you'll want to add heat shrink or a boot, or pick an insulated ring terminal instead.
3) What voltage is the Sta-Kon B485 ring terminal rated for?
600 V. That covers standard branch-circuit and control wiring in commercial panels, motor control, and lighting work. It is also UL recognized under file E9809.
4) Will a non-insulated ring terminal like the B485 work with my insulated-terminal crimp tool?
Non-insulated terminals need a non-insulated (open barrel style B / bare terminal) crimp die, not the color-coded insulated nest. The B485 has a bare copper barrel, and crimping it in an insulated-terminal die gives an under-formed crimp. Use the die set your tool lists for bare 16-14 AWG terminals.
5) Is the Sta-Kon B485 ring terminal copper or aluminum, and can I use it on aluminum conductors?
The B485 is copper. Copper-only terminals are for copper conductors; aluminum wire requires a terminal rated AL or AL/CU, so don't put this on aluminum.
6) Is the Sta-Kon B485 made in the USA for a Buy American spec job?
Country of origin on the B485 ring terminal is the United States, which is what institutional and government procurement typically needs documented on a submittal.
7) What's the exact part number to order this Sta-Kon ring terminal under?
Order it as Sta-Kon B485. One part number covers the item: non-insulated rectangular-tongue ring terminal, 16-14 AWG, No. 4 stud.
