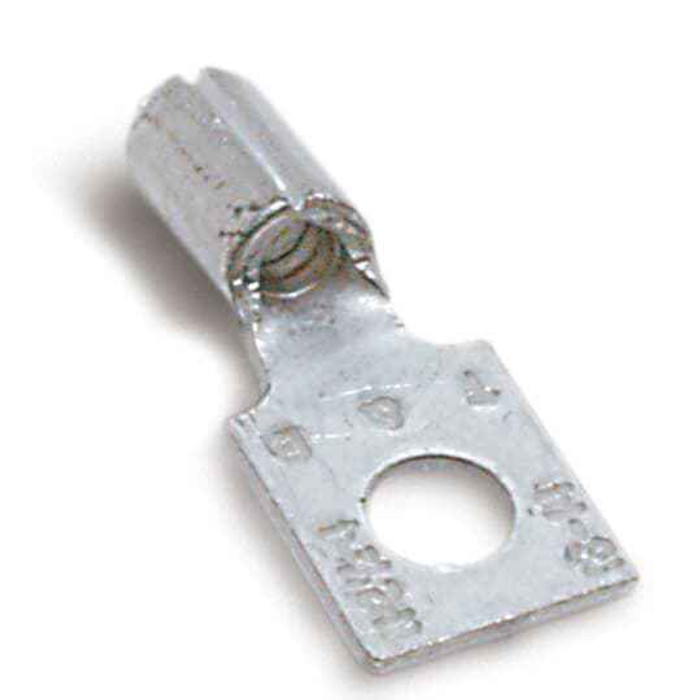

NON-INS RECT RING TERM, 16-14, No8
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Rectangular Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B480 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon B480 ring terminal crimp?
The B480 is sized for 16 to 14 AWG conductors. Pushing 12 AWG into it will not seat, and 18 AWG will leave the barrel under-filled, so match the wire to that range for a proper crimp.
2) What stud size does the Sta-Kon B480 ring fit?
The ring is drilled for a No. 8 stud or screw. It is a rectangular tongue rather than a round one, so it works where the tongue has to sit between adjacent terminals on a tight block.
3) Can I use the Sta-Kon B480 on a 480V circuit?
The terminal carries a 600 V rating, so 480 V and standard 120/277 V branch circuits are within it. It is UL recognized under file E9809.
4) Is the B480 terminal insulated, and does that matter for my panel?
It is non-insulated bare copper. You get no strain relief or dielectric cover at the barrel, so if the termination sits close to other live parts you will want heat shrink or an insulating sleeve over it. For grounded lug work or inside a terminal block where spacing is already controlled, bare is normal practice.
5) Will a ring terminal like the B480 work on a slotted terminal block, or do I need a fork?
A ring is a closed tongue, so the screw has to come all the way out to install it. That is the point of using one: it cannot vibrate off the stud. If you need to drop the wire under a captive screw without removing it, use a spade or fork tongue instead. On motor leads, ground studs, and anything that moves, the closed ring is the right choice.
6) Is the Sta-Kon B480 copper or aluminum, and can I put it on an aluminum conductor?
The body is copper. Use it on copper conductors only. Aluminum wire needs a lug rated AL or AL9CU with the appropriate inhibitor compound.
7) Is the Sta-Kon B480 made in the USA?
Country of origin is the United States. That matters on Buy American and federally funded jobs where domestic sourcing has to be documented for electrical components.
