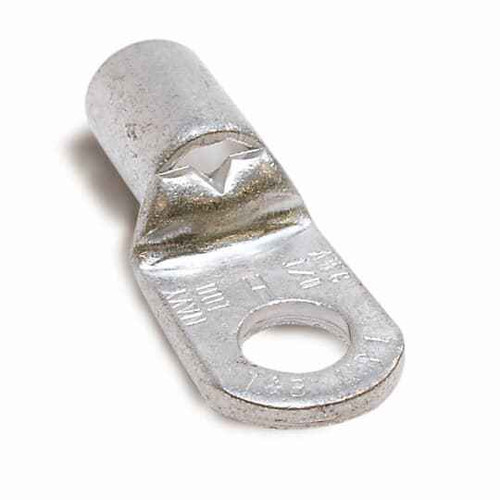

NON INSUL BS RING 6AWG 3/8BOLT NP
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Wire Size:
- 6 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon E73NP – Frequently Asked Questions
1) Is the E73NP terminal insulated, and does that matter for my panel?
It's a non-insulated ring terminal, bare copper with no nylon or vinyl sleeve. That means the barrel is exposed after crimping, so in a tight panel or junction box you add heat shrink or sleeving yourself if you need the barrel covered. Non-insulated is the usual choice when the lug sits under a cover or where the crimp gets inspected.
2) What is the Sta-Kon E73NP made of, and can I land it on an aluminum conductor?
The E73NP barrel is copper, so it's intended for copper conductor. Don't use it on aluminum wire, a copper-only terminal on aluminum sets up a dissimilar-metal connection that needs a dual-rated AL/CU lug and compound instead.
3) Is the E73NP a crimp terminal or a set screw lug?
It's a crimp-on ring terminal, the butted-seam barrel is compressed onto the stripped conductor with a crimp tool sized for 6 AWG. There is no set screw. For a 6 AWG copper run that means a hex or indent crimp die, not a hand squeeze pliers meant for small insulated terminals.
4) Will a ring terminal like the E73NP work on a grounding or bonding connection?
A ring terminal is the right shape for a ground stud or bonding screw because the closed ring cannot vibrate off the stud the way a spade or fork terminal can. With the E73NP you get a 3/8 inch ring on 6 AWG copper, which matches a typical equipment ground bar stud. Follow whatever torque the bar or enclosure maker specifies for the stud.
5) Do I order the Sta-Kon E73NP by that part number, and where is it made?
Yes. E73NP is the manufacturer part number you order by, and it's made in the United States.
