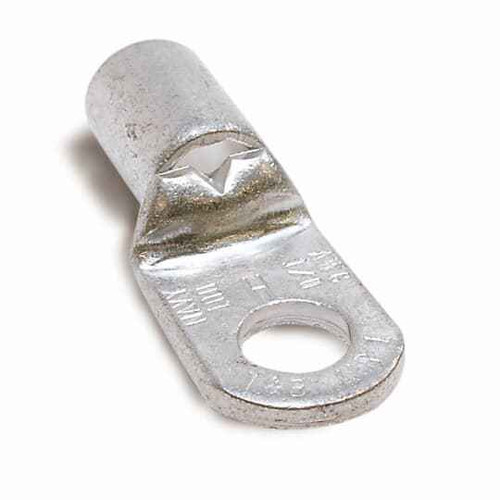

NON INSUL TUB RING 6AWG, 3/8BOLT NP
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Wire Size:
- 6/6AN
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon E10731NP – Frequently Asked Questions
1) Is the E10731NP ring terminal insulated?
No. It is a non-insulated tubular ring terminal, so the crimped barrel is bare copper. If the termination sits in an enclosure where adjacent phases or a grounded surface are close, plan on heat shrink or tape over the barrel, or choose an insulated ring terminal instead.
2) What is the Sta-Kon E10731NP lug made of, and can I use it on aluminum conductor?
The E10731NP is copper. It is intended for copper conductor at 6 AWG. Aluminum conductor needs an aluminum or AL/CU rated connector, so don't substitute this one on an aluminum feeder.
3) Do I need a special crimper for the Sta-Kon E10731NP?
Yes, it is a crimp-on tubular barrel, not a set screw lug, so it needs a crimping tool with a die matched to 6 AWG copper. A hand ratchet or hydraulic crimper with the correct nest gives the full-circle compression this barrel is designed around; pliers will not.
4) How do I order the Sta-Kon E10731NP, and what part number should I quote?
Order by Sta-Kon part number E10731NP. It is a single configuration, 6 AWG with a 3/8 inch bolt tongue, non-insulated, so there are no finish or size options to specify.
5) Where is the Sta-Kon E10731NP terminal made? I need country of origin for a government submittal.
Country of origin is Mexico. That is the figure to put on a procurement or trade-compliance form for the E10731NP.
