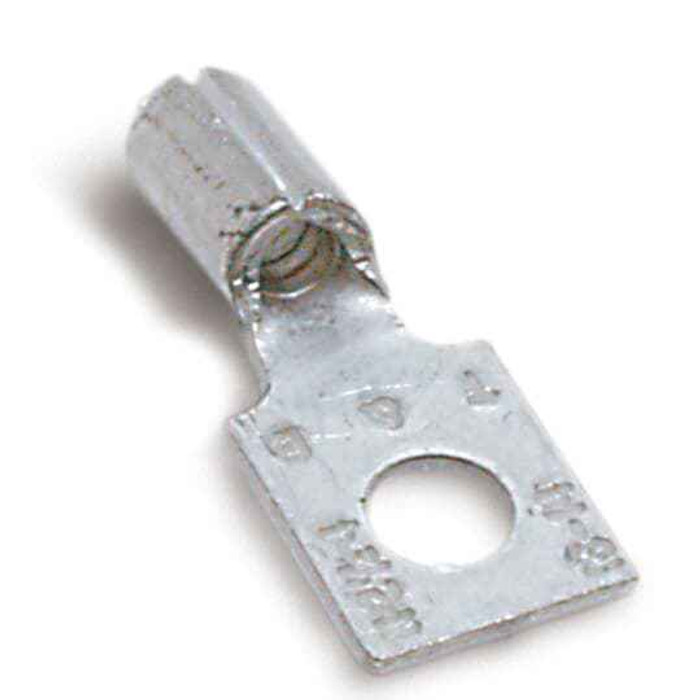

non insul rect term 16-14 No6 /tape
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Rectangular Ring Terminal
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon B481M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon B481M ring terminal crimp onto?
The B481M takes 16 to 14 AWG stranded copper wire. If you are terminating 12-10 AWG or 22-18 AWG on the same panel, you need a different barrel size, since a crimp barrel sized for 16-14 will not hold either one reliably.
2) What stud or screw size does the Sta-Kon B481M terminal fit?
It is a No. 6 stud terminal, so it lands on a #6 screw or stud. For 1/4-20 or #10 breaker lugs and ground bars, pick the matching stud size instead.
3) Is the Sta-Kon B481M insulated or bare?
Bare. The B481M is a non-insulated rectangular ring terminal, so there is no nylon or vinyl sleeve over the barrel. That means you add heat shrink or tape yourself where the code or the enclosure requires the barrel covered, and you crimp it with a non-insulated (not insulated-barrel) die.
4) What is the Sta-Kon B481M terminal made of, and can I use it on aluminum wire?
The terminal body is copper, which makes it a copper-only connector. Use it on stranded copper conductors in the 16-14 AWG range; aluminum wire needs a connector rated for aluminum or AL/CU.
5) Why is the Sta-Kon B481M a rectangular tongue instead of a round ring?
The rectangular tongue is narrower across the body than a round ring of the same stud size, which is what you want on tight terminal blocks and crowded breaker stacks where adjacent lugs would otherwise touch. A round ring tongue gives you more contact area if the pad is open; a spade or fork lets you slip it under a screw without removing the screw, which this closed-tongue terminal does not.
6) Is the Sta-Kon B481M supplied loose or on a tape reel?
It comes taped, which is how these are fed into a bench or pneumatic reel-fed crimping machine for production work. If you are doing a handful of terminations in the field with a hand crimper, loose-piece terminals are the easier buy.
7) Are Sta-Kon B481M terminals made in the USA for a Buy American job?
Country of origin on the B481M is the United States, which is the data most institutional and government procurement people need on file for domestic-content paperwork.
8) What part number do I order for the Sta-Kon 16-14 AWG No. 6 non-insulated rectangular terminal?
Order Sta-Kon B481M. There is one configuration, so no finish, length, or packaging suffix has to be specified with it.
