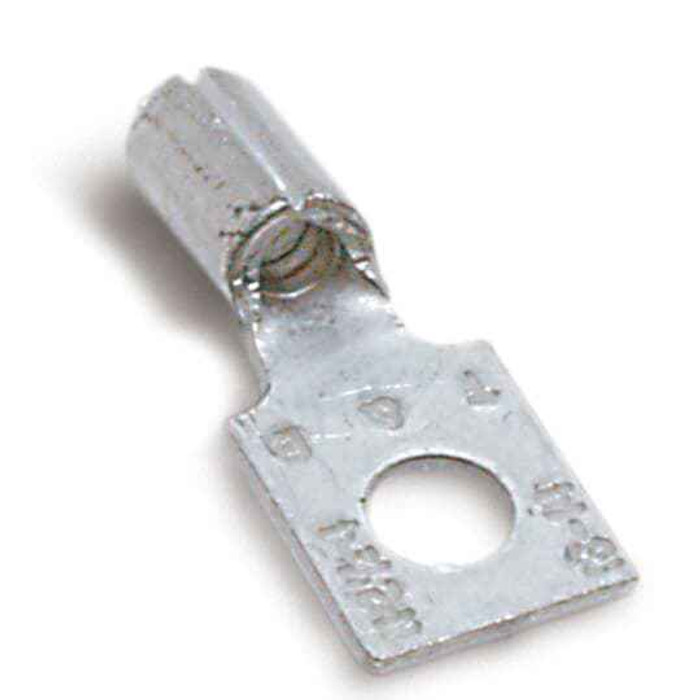

NON-INS RECT RING TRM 16-14 No6
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Rectangular Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B484 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon B484 ring terminal accept?
The B484 is sized for 16 to 14 AWG conductor. Anything heavier (12 AWG and up) or lighter (18 AWG and down) needs a different barrel size, since a crimp outside the rated range won't hold mechanically or electrically.
2) Is the Sta-Kon B484 insulated or bare?
Bare copper, no insulating sleeve. It's a non-insulated rectangular-tongue ring terminal in a metallic copper finish, so you insulate the crimp yourself with heat shrink or tape where the application calls for it.
3) Is the Sta-Kon B484 ring terminal UL listed for institutional and inspected work?
It is covered under UL file E9809, which is what an inspector or a spec writer on a government, healthcare, or education job will want to see against the terminal.
4) Is the Sta-Kon B484 made in the USA for Buy American jobs?
Country of origin is the United States, which matters on federally funded and public-agency work where domestic sourcing is written into the contract.
5) Should I pick a non-insulated ring terminal like the B484 or an insulated one?
Go non-insulated like the B484 when the termination sits inside an enclosure or junction box where the barrel is already protected, when you're adding your own heat shrink, or where high temperature makes a nylon or vinyl sleeve a liability. Pick an insulated terminal instead for exposed harness work or crowded terminal strips where a bare barrel could bridge to the neighbor. Both still need the right wire range (16-14 AWG here) and stud size.
6) What crimp tool do I need for the Sta-Kon B484?
Use a ratcheting crimper with a non-insulated die set matched to 16-14 AWG. Insulated-terminal dies with the color-coded nests will not form a bare copper barrel correctly, and pliers will not give you a gas-tight crimp.
